BKT-107 Series

Catalog

CONN HEADER SMD 7POS 1MM

Part	Pitch - Mating	Mounting Type	Current Rating (Per Contact)	Number of Positions	Material Flammability Rating	Connector Type	Insulation Material	Row Spacing - Mating	Contact Length - Mating	Style	Insulation Height	Termination	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Shrouding	Number of Positions Loaded	Fastening Type	Insulation Color	Contact Shape	Contact Type	Contact Finish - Post	Contact Material	Contact Finish - Mating	Mated Stacking Height
Samtec Inc. BKT-107-01-L-V	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.064 in	Solder	2	125 °C	-55 °C	10 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	4.14 mm
Samtec Inc. BKT-107-05-L-V	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.177 in	Solder	2	125 °C	-55 °C	10 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	7 mm

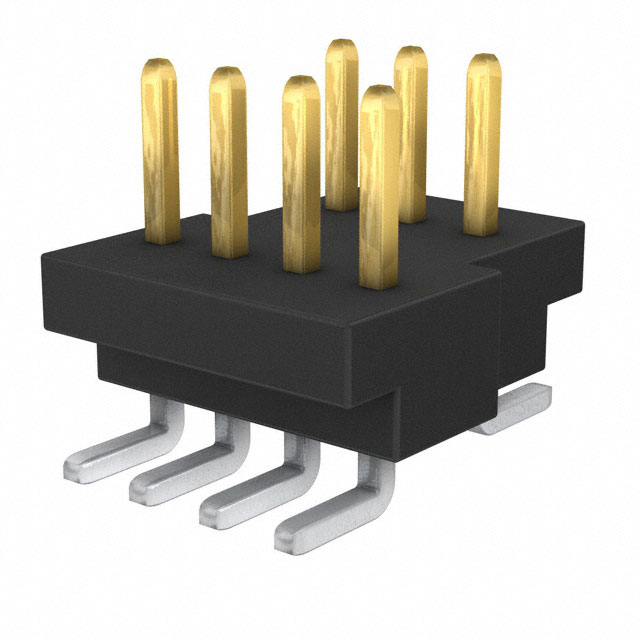

Samtec Inc. BKT-107-02-LM-V	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.064 in	Solder	2	125 °C	-55 °C	10 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	4.5 mm
Samtec Inc. BKT-107-01-FM-V-TR	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.064 in	Solder	2	125 °C	-55 °C	3 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	4.14 mm
Samtec Inc. BKT-107-02-L-V-TR	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.064 in	Solder	2	125 °C	-55 °C	10 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	4.5 mm
Samtec Inc. BKT-107-04-L-V-TR	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.137 in	Solder	2	125 °C	-55 °C	10 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	6 mm
Samtec Inc. BKT-107-04-F-V	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.137 in	Solder	2	125 °C	-55 °C	3 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	6 mm
Samtec Inc. BKT-107-01-L-V-TR	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.064 in	Solder	2	125 °C	-55 °C	10 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	4.14 mm

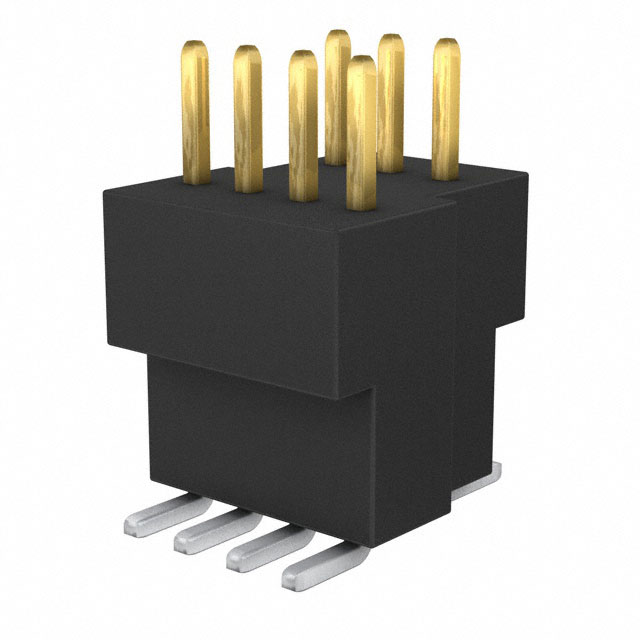

Samtec Inc. BKT-107-05-LM-V	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.177 in	Solder	2	125 °C	-55 °C	10 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	7 mm
Samtec Inc. BKT-107-05-F-V	0.039 in	Surface Mount	2.8 A	7	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	0.1 in	0.065 in	Board	0.177 in	Solder	2	125 °C	-55 °C	3 µin	Unshrouded	All	Push-Pull	Black	Square	Male Pin	Tin	Phosphor Bronze	Gold	7 mm
