555165 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

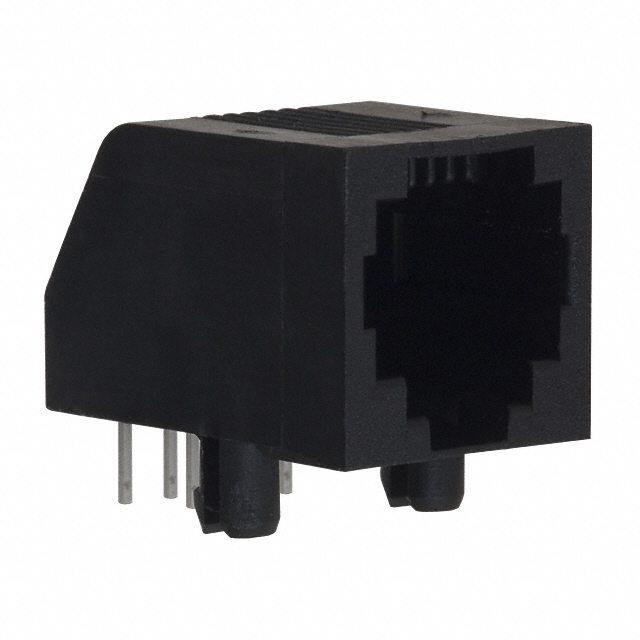

CONN RJ-11 F 6 POS 2.54MM SOLDER RA THRU-HOLE 6 TERMINAL 1 PORT CAT 3 BOX/TRAY
| Part | Housing Material | Contact Finish Thickness | Operating Temperature (Min) | Operating Temperature (Max) | Number of Positions | Connector Type | Number of Contacts | Contact Finish | Termination | Orientation Angle | Orientation Direction | Mounting Type | Shielding | Ratings | Number of Ports | Tab Direction | LED Color | Number of Rows | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | PBT Polybutylene Terephthalate Polyester | 50 µin | -40 °C | 85 °C | 6 | Jack RJ11 | 2 | Gold | Solder | 90 ° | Right | Through Hole | Unshielded | Cat3 | 1 | Down | Does Not Contain LED | 1 | Board Lock | Phosphor Bronze |
 TE Connectivity AMP Connectors | PBT Polybutylene Terephthalate Polyester | 50 µin | -40 °C | 85 °C | 6 | Jack RJ11 RJ12 RJ14 RJ25 | 6 | Gold | Solder | 90 ° | Right | Through Hole | Unshielded | Cat3 | 1 | Down | Does Not Contain LED | 1 | Board Lock | Phosphor Bronze |
