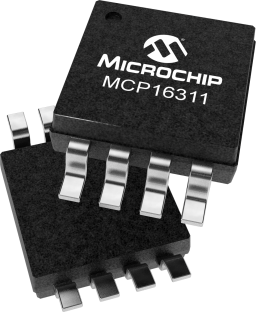

MCP16311 Series

Catalog

30V INPUT, 1A, PWM/PFM SYNCHRONOUS BUCK SWITCHING REGULATOR 8 TDFN 2X3X0.8MM T/R ROHS COMPLIANT: YES

Part	Synchronous Rectifier	Voltage - Output (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Voltage - Input (Min)	Voltage - Output (Min/Fixed)	Number of Outputs	Output Configuration	Output Type	Function	Topology	Frequency - Switching	Voltage - Input (Max)	Mounting Type	Current - Output	Package / Case	Grade	Qualification
Microchip Technology MCP16311T-E/MNY	Yes	24 V	125 °C	-40 °C	3 mm	8-TDFN	2 mm	4.4 V	2 V	1	Positive	Adjustable	Step-Down	Buck	500 kHz	30 V p-p	Surface Mount	1 A	8-WFDFN Exposed Pad
Microchip Technology MCP16311-E/MSVAO	Yes	24 V	125 °C	-40 °C	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4.4 V	2 V	1	Positive	Adjustable	Step-Down	Buck	500 kHz	30 V p-p	Surface Mount	1 A		Automotive	AEC-Q100
Microchip Technology MCP16311T-E/MSVAO	Yes	24 V	125 °C	-40 °C	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4.4 V	2 V	1	Positive	Adjustable	Step-Down	Buck	500 kHz	30 V p-p	Surface Mount	1 A		Automotive	AEC-Q100
Microchip Technology MCP16311-E/MS	Yes	24 V	125 °C	-40 °C	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4.4 V	2 V	1	Positive	Adjustable	Step-Down	Buck	500 kHz	30 V p-p	Surface Mount	1 A
Microchip Technology MCP16311T-E/MS	Yes	24 V	125 °C	-40 °C	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4.4 V	2 V	1	Positive	Adjustable	Step-Down	Buck	500 kHz	30 V p-p	Surface Mount	1 A
Microchip Technology MCP16311T-E/MNYVAO	Yes	24 V	125 °C	-40 °C	3 mm	8-TDFN	2 mm	4.4 V	2 V	1	Positive	Adjustable	Step-Down	Buck	500 kHz	30 V p-p	Surface Mount	1 A	8-WFDFN Exposed Pad	Automotive	AEC-Q100
