5555077 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

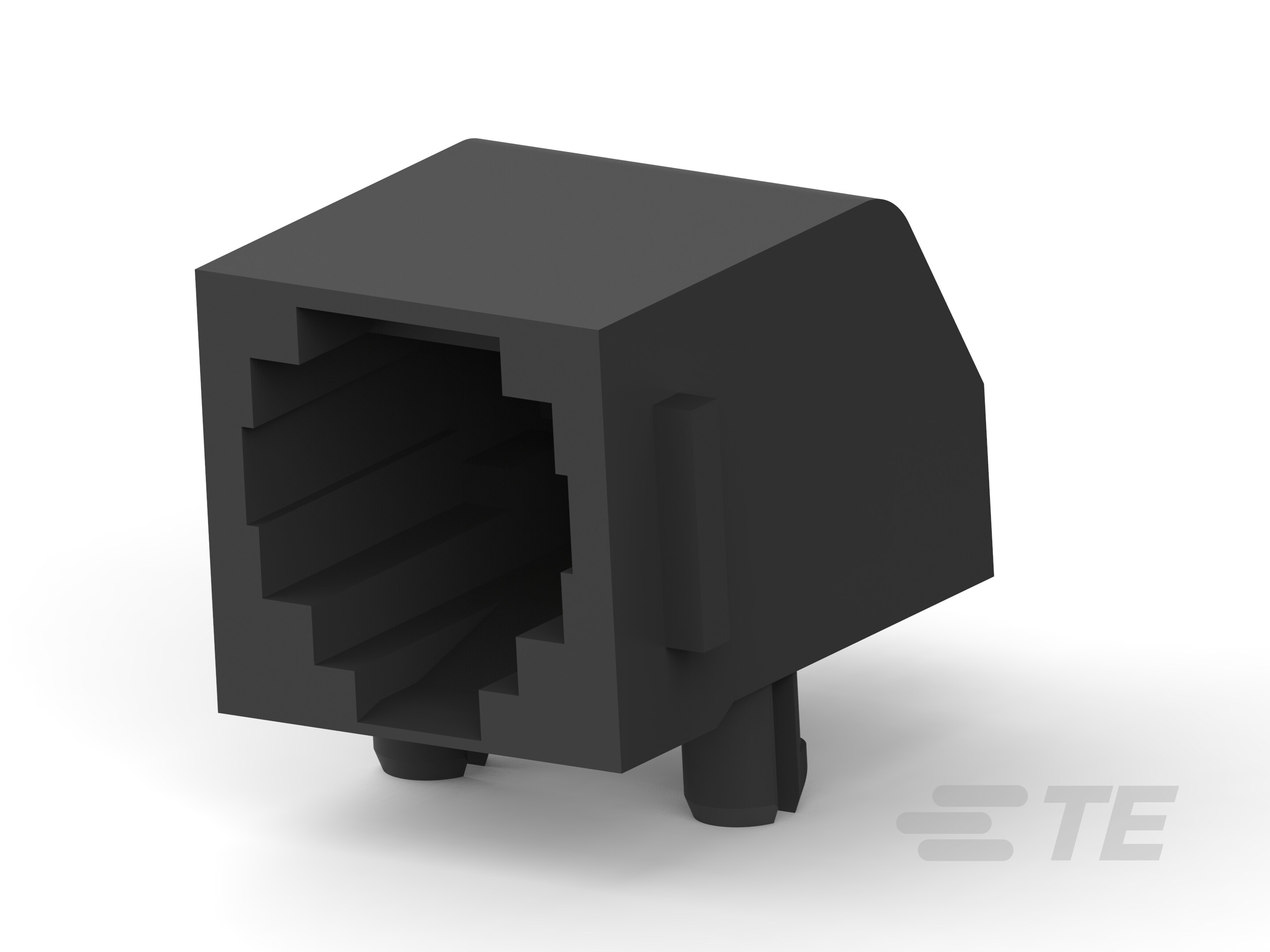

MODULAR CONN/ETHERNET CONN 6/6 S
| Part | Contact Finish | Number of Contacts | Connector Type | Number of Positions | LED Color | Number of Ports | Contact Material | Mounting Type | Orientation Angle | Orientation Direction | Tab Direction | Termination | Shielding | Number of Rows | Ratings | Features | Housing Material | Contact Finish Thickness | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 6 | Jack RJ11 RJ12 RJ14 RJ25 | 6 | Does Not Contain LED | 1 | Phosphor Bronze | Surface Mount | 90 ° | Right | Down | Solder | Unshielded | 1 | Cat3 | |||||
TE Connectivity AMP Connectors | Gold | 6 | Jack RJ11 RJ12 RJ14 RJ25 | 6 | Does Not Contain LED | 1 | Phosphor Bronze | Surface Mount | 90 ° | Right | Down | Solder | Unshielded | 1 | Cat3 | Board Lock Panel Stops Solder Retention | Nylon PA Polyamide | 50 µin | -40 °C | 85 °C |
 TE Connectivity AMP Connectors | Gold | 4 | Jack RJ11 RJ14 | 6 | Does Not Contain LED | 1 | Phosphor Bronze | Surface Mount | 90 ° | Right | Down | Solder | Unshielded | 1 | Cat3 | Board Lock Panel Stops Solder Retention | Nylon PA Polyamide | 50 µin | -40 °C | 85 °C |
