282857 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

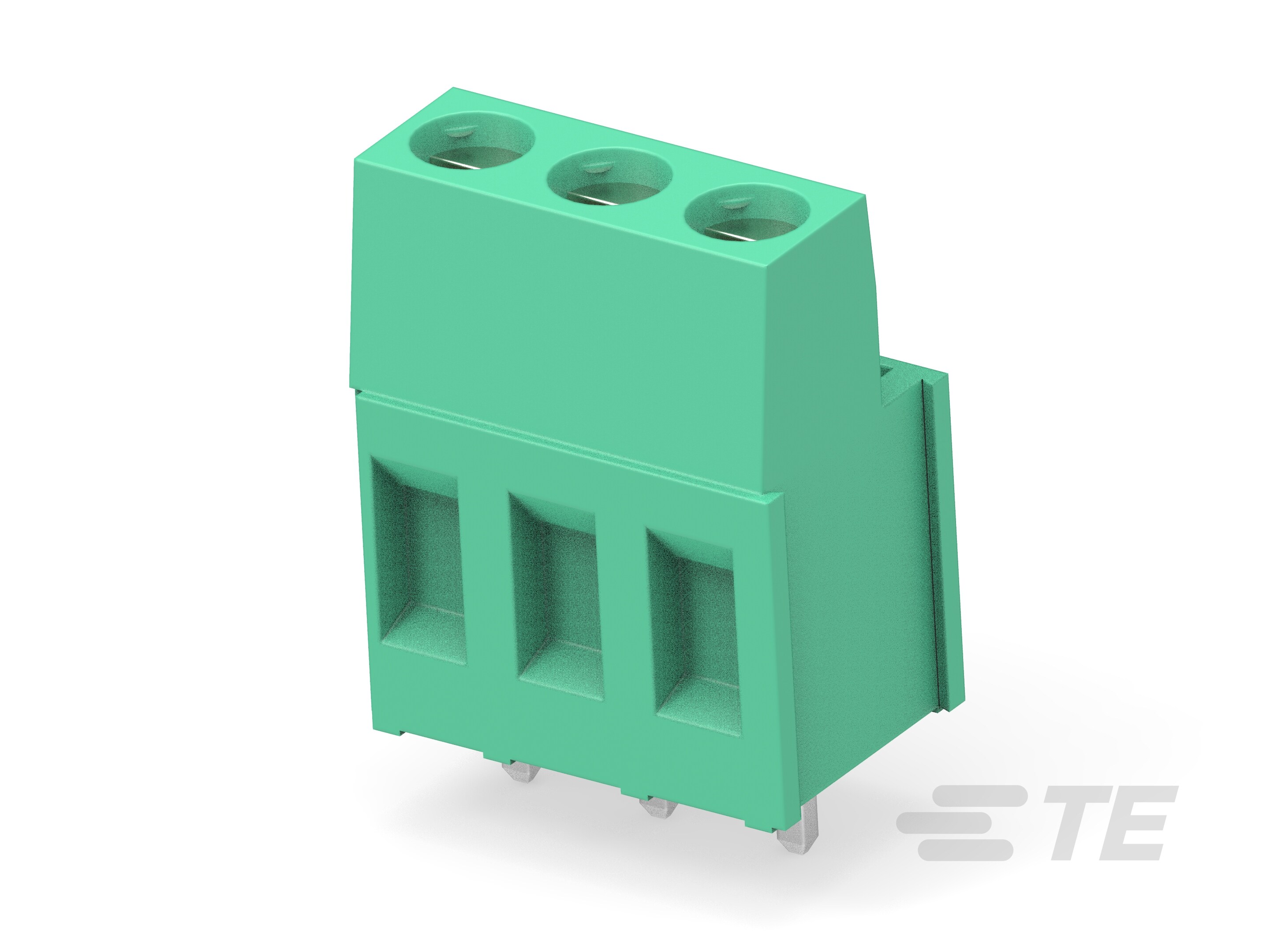

TERM BLK 3P SIDE ENT 5.08MM PCB
| Part | Number of Levels | Mating Orientation | Color | Features | Voltage | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Wire Termination | Positions Per Level | Pitch | Mounting Type | Current | Torque - Screw | Screw Material | Screw Plating | Housing Material | Contact Material | Plating | Screw Thread | Clamp Material | Clamp Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | Horizontal with Board | Green | Interlocking (Side) | 300 V | 12 AWG | 30 AWG | Rising Cage Clamp Screw | 3 | 5.08 mm | Through Hole | 24 A | 0.79 Nm | Brass | Nickel Plated | Nylon 6/6 PA66 Polyamide | Brass | Tin Plated | M3 | Brass | Nickel Plated |
 TE Connectivity AMP Connectors | 1 | Horizontal with Board | Green | Interlocking (Side) | 300 V | 12 AWG | 30 AWG | Rising Cage Clamp Screw | 24 | 5.08 mm | Through Hole | 24 A | 0.79 Nm | Brass | Nickel Plated | Nylon 6/6 PA66 Polyamide | Brass | Tin Plated | M3 | Brass | Nickel Plated |
 TE Connectivity AMP Connectors | 1 | Horizontal with Board | Green | Interlocking (Side) | 300 V | 12 AWG | 30 AWG | Rising Cage Clamp Screw | 5 | 5.08 mm | Through Hole | 24 A | 0.79 Nm | Brass | Nickel Plated | Nylon 6/6 PA66 Polyamide | Brass | Tin Plated | M3 | Brass | Nickel Plated |
 TE Connectivity AMP Connectors | 1 | Horizontal with Board | Green | Interlocking (Side) | 300 V | 12 AWG | 30 AWG | Rising Cage Clamp Screw | 4 | 5.08 mm | Through Hole | 24 A | 0.79 Nm | Brass | Nickel Plated | Nylon 6/6 PA66 Polyamide | Brass | Tin Plated | M3 | Brass | Nickel Plated |
 TE Connectivity AMP Connectors | 1 | Horizontal with Board | Green | Interlocking (Side) | 300 V | 12 AWG | 30 AWG | Rising Cage Clamp Screw | 8 | 5.08 mm | Through Hole | 24 A | 0.79 Nm | Brass | Nickel Plated | Nylon 6/6 PA66 Polyamide | Brass | Tin Plated | M3 | Brass | Nickel Plated |
TE Connectivity AMP Connectors | 1 | Horizontal with Board | Green | Interlocking (Side) | 300 V | 12 AWG | 30 AWG | Rising Cage Clamp Screw | 21 | 5.08 mm | Through Hole | 24 A | 0.79 Nm | Brass | Nickel Plated | Nylon 6/6 PA66 Polyamide | Brass | Tin Plated | M3 | Brass | Nickel Plated |

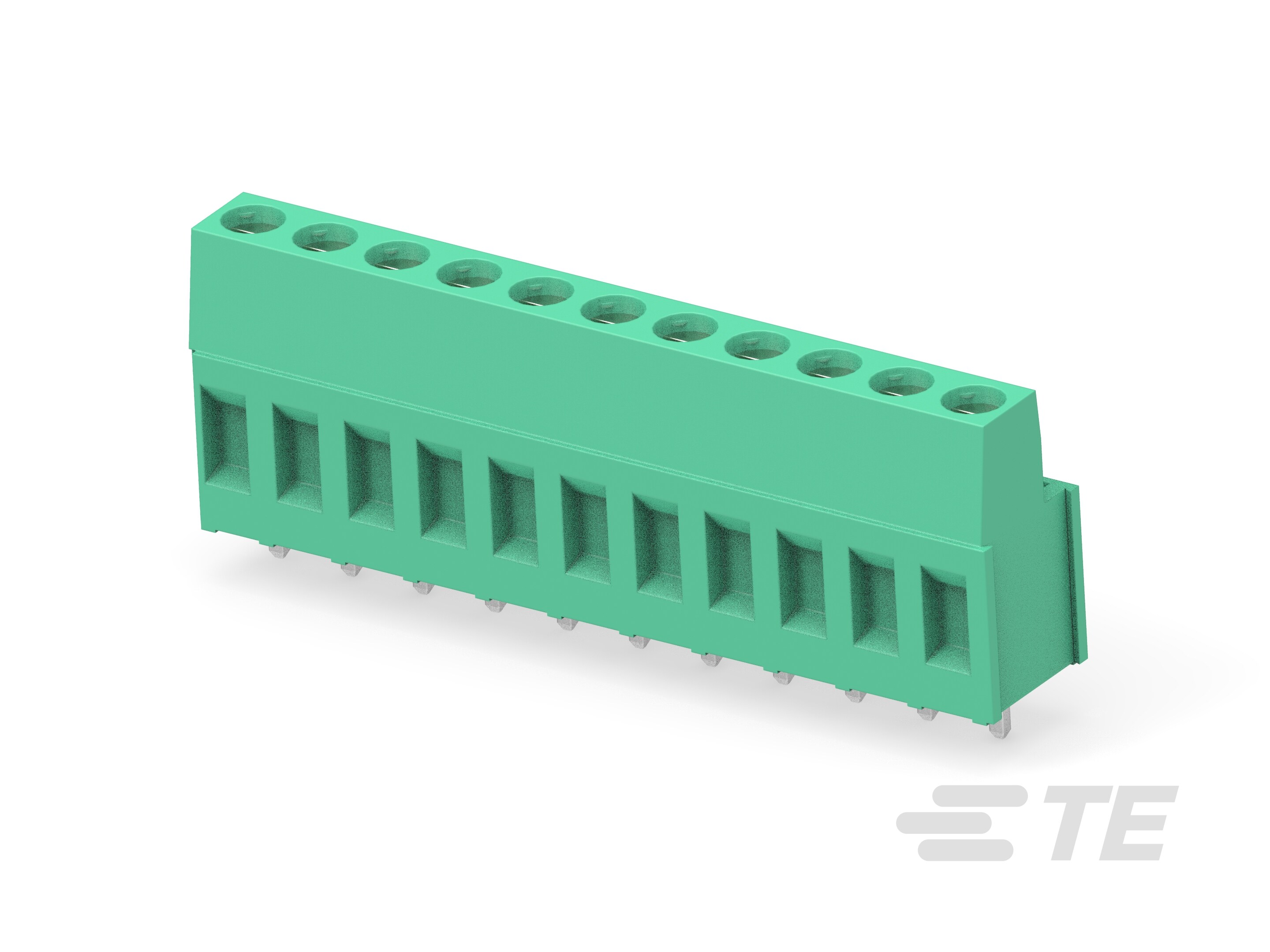

 TE Connectivity AMP Connectors | 1 | Horizontal with Board | Green | Interlocking (Side) | 300 V | 12 AWG | 30 AWG | Rising Cage Clamp Screw | 11 | 5.08 mm | Through Hole | 24 A | 0.79 Nm | Brass | Nickel Plated | Nylon 6/6 PA66 Polyamide | Brass | Tin Plated | M3 | Brass | Nickel Plated |
