MCP-27 Series
Manufacturer: Omnetics
Beta
⌘K

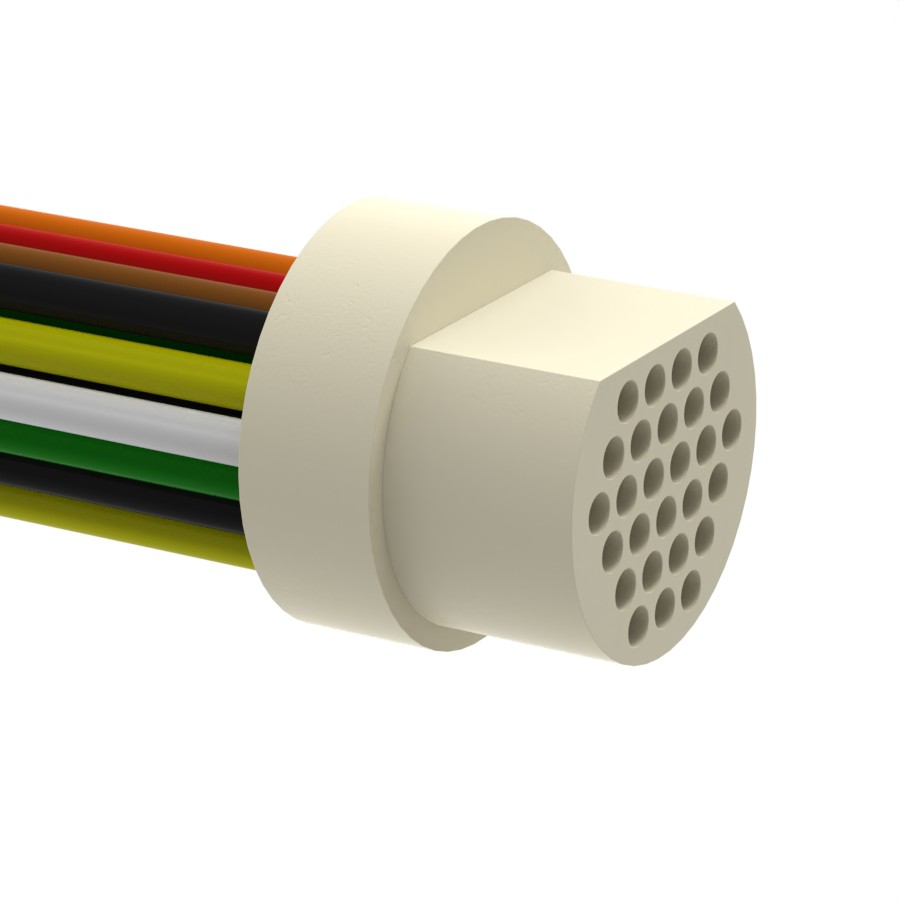

CIRC CBL 27POS PLUG TO WIRE 1.5'
| Part | Usage | Color | 1st Connector Type | 2nd Connector Type | Shielding | Cable Type | 1st Connector Mounting Type | 1st Connector Number of Positions | Length | 1st Connector Gender | 1st Connector Orientation | Assembly Configuration | 1st Connector Number of Positions Loaded | Cable Material | Orientation | Insert Material | Number of Positions | Connector Type | Operating Temperature (Max) | Operating Temperature (Min) | Shell Material | Mounting Type | Contact Finish - Mating | Contact Material | Contact Finish Thickness - Mating | Fastening Type | Primary Material | Termination | Current Rating (Per Contact) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Industrial Environments | Multiple | Plug | Wire Leads | Unshielded | Individual | Free Hanging (In-Line) | 27 positions | 1.5 ft | Male Pins | Keyed | Standard | All | Polytetrafluoroethylene (PTFE) | |||||||||||||||
 Omnetics | Natural | Unshielded | Keyed | LCP Liquid Crystal Polymer | 27 | Male Pins Plug | 125 °C | -55 °C | Liquid Crystal Polymer (LCP) | Free Hanging (In-Line) | Gold | Beryllium Copper | 50 µin | Push-Pull | Plastic | Solder Cup | 3 A |
