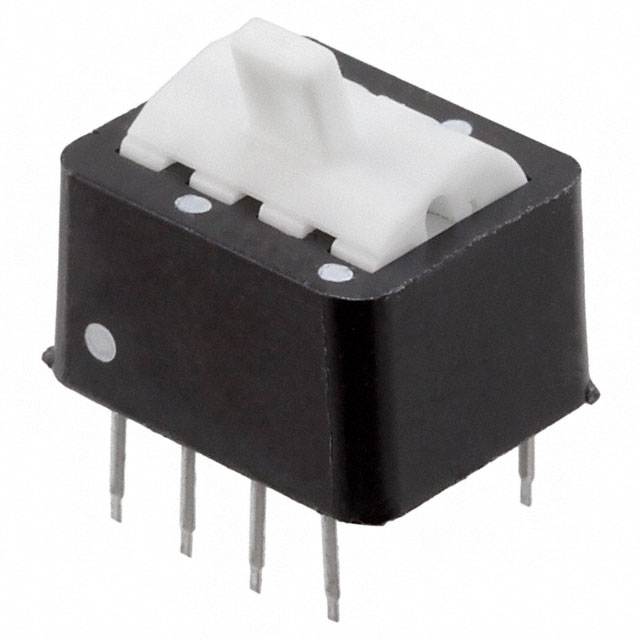

8-435470 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
SW TOGGLE DIP DPDT 0.025A 24V
| Part | Actuator Type | Number of Positions | Termination Style | Pitch [x] | Pitch | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Washable | Electrical Life | Body Material | Contact Material | Current Rating (Amps) | Length | Length | Actuator Level | Mounting Type | Contact Finish | Height Above Board | Height Above Board | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Toggle | 1 | PC Pin | 0.1 in | Full | 2.54 mm | 105 ░C | -55 °C | 24 VDC | 7000 Cycles | Polyester (PET) Glass Filled | Copper Alloy | 25 mA | 0.48 in | 12.19 mm | Raised | Through Hole | Gold | 11.68 mm | 0.46 in | DPDT |
