2834085 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

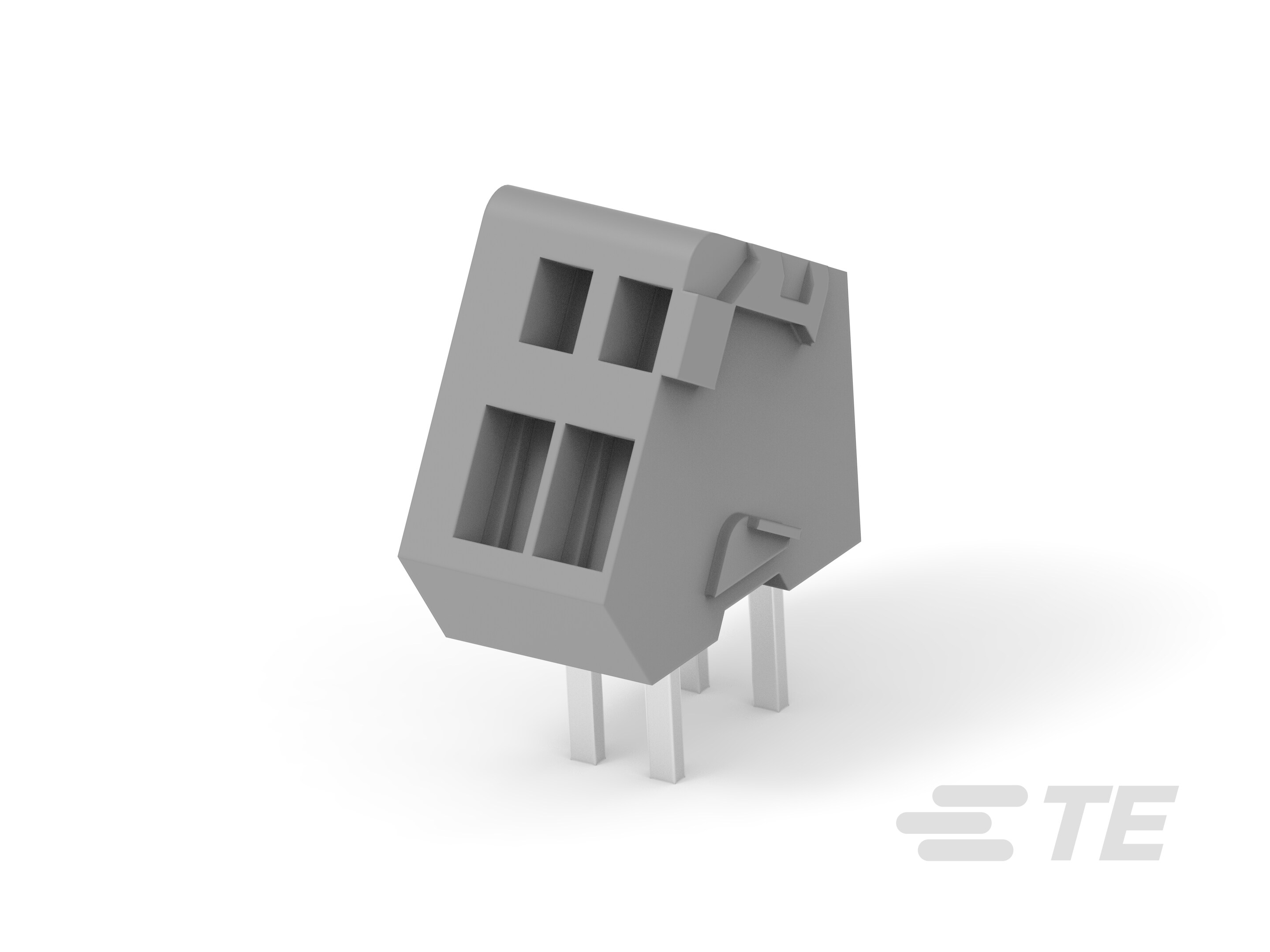

TERM BLOCK 2POS 45DEG 2.54MM PCB
| Part | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Plating | Features | Number of Levels | Pitch | Mounting Type | Wire Termination | Positions Per Level | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Current | Voltage | Mating Orientation (Angle) | Mating Orientation (Description) | Mating Orientation (Angle) (Alternate) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nylon 6/6 PA66 Polyamide | -40 °C | 105 °C | Brass | Tin Plated | Interlocking (Side) | 1 | 0.1 in | Through Hole | Screwless Spring Cage Tension Clamp | 2 | 19.5 AWG | 28 AWG | 4 A | 150 V | 45 ° | Angle with Board | 135 ° |
