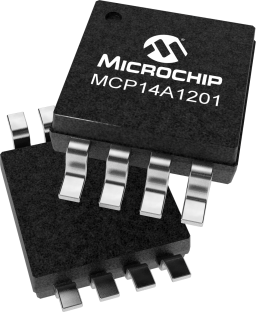

MCP14A1201 Series

Catalog

12 A MOSFET GATE DRIVER WITH LOW INPUT THRESHOLD AND ENABLE

Part	Gate Type	Input Type	Number of Drivers	Mounting Type	Logic Voltage - VIH	Logic Voltage - VIL	Qualification	Gate Channel	Driven Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Channel Type	Package / Case	Fall Time (Typ)	Rise Time (Typ)	Package Width	Package Name	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Current - Peak Output (Source)	Current - Peak Output (Sink)	Grade
Microchip Technology MCP14A1201T-E/MNYVAO	IGBT MOSFET N-Channel P-Channel MOSFET	Inverting	1	Surface Mount	2 V	0.8 V	AEC-Q100	N-Channel P-Channel	Low-Side	125 °C	-40 °C	Single	8-WFDFN Exposed Pad	25 ns	25 ns	3 mm	8-TDFN	2 mm	18 V	4.5 V	12 A	12 A	Automotive
Microchip Technology MCP14A1201-E/MS	IGBT MOSFET N-Channel P-Channel MOSFET	Inverting	1	Surface Mount	2 V	0.8 V		N-Channel P-Channel	Low-Side	125 °C	-40 °C	Single		25 ns	25 ns	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	18 V	4.5 V	12 A	12 A
Microchip Technology MCP14A1201T-E/MS	IGBT MOSFET N-Channel P-Channel MOSFET	Inverting	1	Surface Mount	2 V	0.8 V		N-Channel P-Channel	Low-Side	125 °C	-40 °C	Single		25 ns	25 ns	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	18 V	4.5 V	12 A	12 A
Microchip Technology MCP14A1201T-E/SN	IGBT MOSFET N-Channel P-Channel MOSFET	Inverting	1	Surface Mount	2 V	0.8 V		N-Channel P-Channel	Low-Side	125 °C	-40 °C	Single		25 ns	25 ns	3.9 mm	8-SOIC	0.154 in	18 V	4.5 V	12 A	12 A
Microchip Technology MCP14A1201T-E/MNY	IGBT MOSFET N-Channel P-Channel MOSFET	Inverting	1	Surface Mount	2 V	0.8 V		N-Channel P-Channel	Low-Side	125 °C	-40 °C	Single	8-WFDFN Exposed Pad	25 ns	25 ns	3 mm	8-TDFN	2 mm	18 V	4.5 V	12 A	12 A
Microchip Technology MCP14A1201T-E/SNVAO	IGBT MOSFET N-Channel P-Channel MOSFET	Inverting	1	Surface Mount	2 V	0.8 V	AEC-Q100	N-Channel P-Channel	Low-Side	125 °C	-40 °C	Synchronous		25 ns	25 ns	3.9 mm	8-SOIC	0.154 in	18 V	4.5 V	12 A	12 A	Automotive
Microchip Technology MCP14A1201T-E/MSVAO	IGBT MOSFET N-Channel P-Channel MOSFET	Inverting	1	Surface Mount	2 V	0.8 V	AEC-Q100	N-Channel P-Channel	Low-Side	125 °C	-40 °C	Single		25 ns	25 ns	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	18 V	4.5 V	12 A	12 A	Automotive
Microchip Technology MCP14A1201-E/SN	IGBT MOSFET N-Channel P-Channel MOSFET	Inverting	1	Surface Mount	2 V	0.8 V		N-Channel P-Channel	Low-Side	125 °C	-40 °C	Single		25 ns	25 ns	3.9 mm	8-SOIC	0.154 in	18 V	4.5 V	12 A	12 A
