644897 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN SHROUDED HEADER HDR 8 POS 2.54MM SOLDER ST THRU-HOLE PACKAGE

Part	Insulation Height	Connector Type	Termination	Contact Shape	Mounting Type	Material Flammability Rating	Pitch - Mating	Contact Finish - Post	Contact Length - Post	Voltage Rating	Current Rating	Number of Positions	Contact Material	Fastening Type	Overall Contact Length	Number of Positions Loaded	Contact Length - Mating	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Style	Shrouding	Contact Finish - Mating	Contact Type	Insulation Material	Insulation Color	Features	Contact Finish Thickness - Mating	Applications
TE Connectivity AMP Connectors 3-644897-8	0.41 in	Header	Solder	Square	Through Hole	UL94 V-0	0.1 in	Tin	0.14 in	250 V	Varies by Wire Gauge	8	Copper Alloy	Friction Lock	0.52 in	All	0.28 in	1	-55 °C	105 °C	Board Cable/Wire	Shrouded - 4 Wall	Gold	Male Pin	Polyester	Black	Board Guide	30 µin	General Purpose Lighting
TE Connectivity AMP Connectors 644897-4	0.41 in	Header	Solder	Square	Through Hole	UL94 V-0	0.1 in	Tin-Lead	0.14 in	250 V	Varies by Wire Gauge	4	Copper Alloy	Friction Lock	0.52 in	All	0.28 in	1	-55 °C	105 °C	Board Cable/Wire	Shrouded - 4 Wall	Gold	Male Pin	Polyester	Black	Board Guide	30 µin	General Purpose Lighting
TE Connectivity AMP Connectors 3-644897-6	0.41 in	Header	Solder	Square	Through Hole	UL94 V-0	0.1 in	Tin	0.14 in	250 V	Varies by Wire Gauge	6	Copper Alloy	Friction Lock	0.52 in	All	0.28 in	1	-55 °C	105 °C	Board Cable/Wire	Shrouded - 4 Wall	Gold	Male Pin	Polyester	Black	Board Guide	30 µin	General Purpose Lighting
TE Connectivity AMP Connectors 1-644897-0	0.41 in	Header	Solder	Square	Through Hole	UL94 V-0	0.1 in	Tin-Lead	0.14 in	250 V	Varies by Wire Gauge	10	Copper Alloy	Friction Lock	0.52 in	All	0.28 in	1	-55 °C	105 °C	Board Cable/Wire	Shrouded - 4 Wall	Gold	Male Pin	Polyester	Black	Board Guide	30 µin	General Purpose Lighting

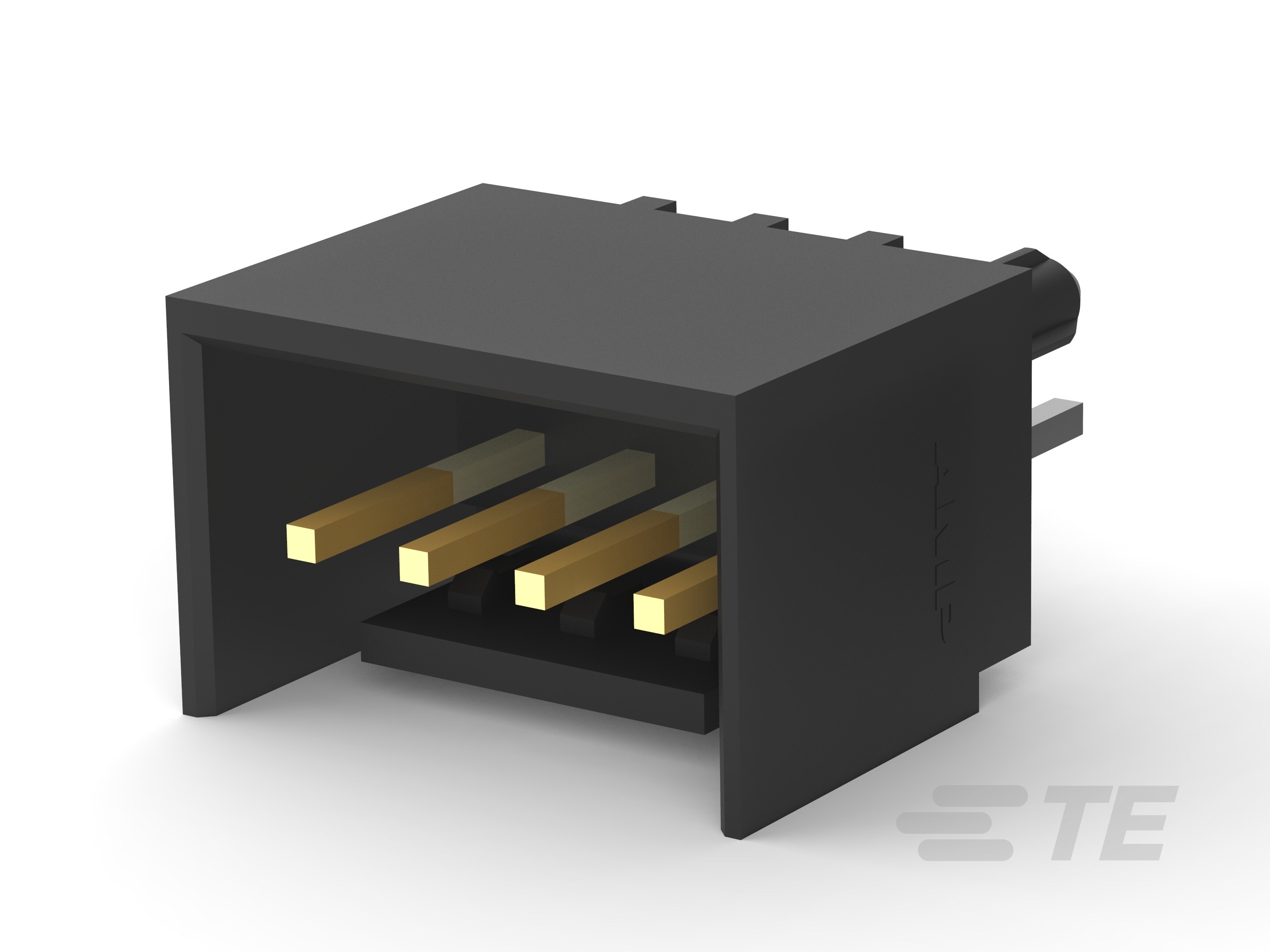

TE Connectivity AMP Connectors 3-644897-4	0.41 in	Header	Solder	Square	Through Hole	UL94 V-0	0.1 in	Tin	0.14 in	250 V	Varies by Wire Gauge	4	Copper Alloy	Friction Lock	0.52 in	All	0.28 in	1	-55 °C	105 °C	Board Cable/Wire	Shrouded - 4 Wall	Gold	Male Pin	Polyester	Black	Board Guide	30 µin	General Purpose Lighting
TE Connectivity AMP Connectors 4-644897-0	0.41 in	Header	Solder	Square	Through Hole	UL94 V-0	0.1 in	Tin	0.14 in	250 V	Varies by Wire Gauge	10	Copper Alloy	Friction Lock	0.52 in	All	0.28 in	1	-55 °C	105 °C	Board Cable/Wire	Shrouded - 4 Wall	Gold	Male Pin	Polyester	Black	Board Guide	30 µin	General Purpose Lighting
TE Connectivity AMP Connectors 644897-6	0.41 in	Header	Solder	Square	Through Hole	UL94 V-0	0.1 in	Tin-Lead	0.14 in	250 V	Varies by Wire Gauge	6	Copper Alloy	Friction Lock	0.52 in	All	0.28 in	1	-55 °C	105 °C	Board Cable/Wire	Shrouded - 4 Wall	Gold	Male Pin	Polyester	Black	Board Guide	30 µin	General Purpose Lighting
