749639 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

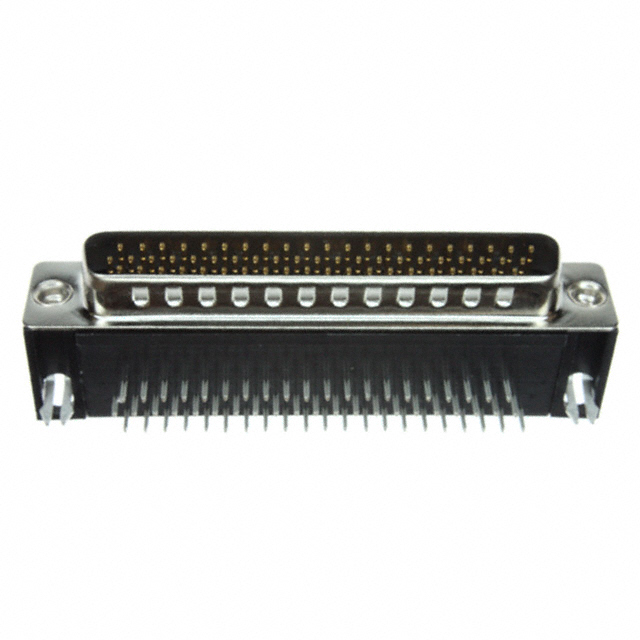

CONN D-SUB HD PLUG 62P R/A SLDR
| Part | Backset Spacing | Backset Spacing | Voltage Rating | Number of Positions | Dielectric Material | Number of Rows | Color | Material Flammability Rating | Contact Finish Thickness | Connector Type | Shell Material, Finish | Contact Type | Contact Finish | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Current Rating (Amps) | Contact Material | Connector Style | Features | Mounting Type | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 8.89 mm | 0.35 in | 125 VDC | 62 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 3 | Black | UL94 V-0 | Flash | Male Pins Plug | Nickel Plated Steel | Signal | Gold | Solder | 105 ░C | -55 °C | Housing/Shell (4-40) | 2 A | Phosphor Bronze | D-Sub High Density | Board Lock Grounding Indents | Through Hole Right Angle | 4 | ||
 TE Connectivity Raychem Cable Protection | 8.89 mm | 0.35 in | 125 VDC | 62 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 3 | Black | UL94 V-0 | Male Pins Plug | Nickel Plated Steel | Signal | Gold | Solder | 105 ░C | -55 °C | Housing/Shell (4-40) | 2 A | Phosphor Bronze | D-Sub High Density | Board Lock Grounding Indents | Through Hole Right Angle | 4 | 0.76 Ám | 30 Áin |
