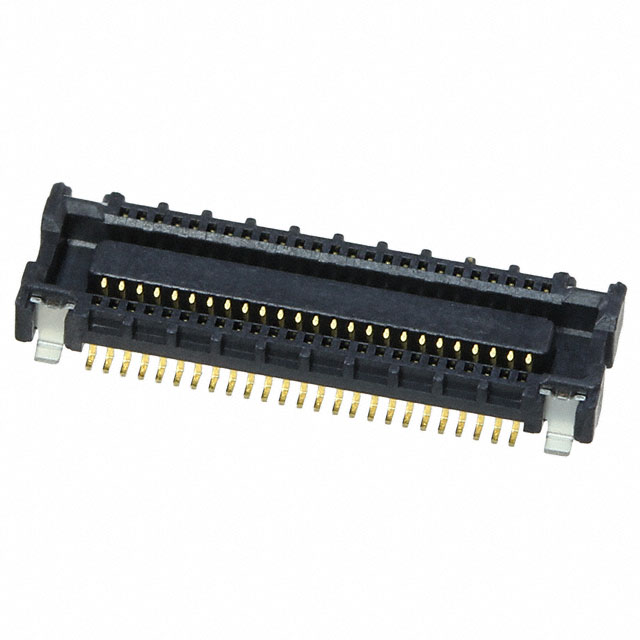

500913 Series

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 1.80 or 2.30mm Mated Height, 4.20mm Mated Width, 50 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 1.80 or 2.30mm Mated Height, 4.20mm Mated Width, 50 Circuits

Part	Height Above Board	Mounting Type	Mated Stacking Height	Pitch	Number of Rows	Contact Finish Thickness	Number of Positions	Connector Type	Contact Finish	Features
Molex 5009130402	0.063 in	Surface Mount	1.8 mm	0.016 in	2	8 µin	40	Center Strip Contacts Receptacle	Gold	Solder Retention
Molex 5009130302	0.063 in	Surface Mount	1.8 mm	0.016 in	2	8 µin	30	Center Strip Contacts Receptacle	Gold	Solder Retention
Molex 5009130602	0.063 in	Surface Mount	1.8 mm	0.016 in	2	8 µin	60	Center Strip Contacts Receptacle	Gold	Solder Retention
Molex 5009130502	0.063 in	Surface Mount	1.8 mm	0.016 in	2	8 µin	50	Center Strip Contacts Receptacle	Gold	Solder Retention
Molex 5009130902	0.063 in	Surface Mount	1.8 mm	0.016 in	2	8 µin	90	Center Strip Contacts Receptacle	Gold	Solder Retention
Molex 5009130702	0.063 in	Surface Mount	1.8 mm	0.016 in	2	8 µin	70	Center Strip Contacts Receptacle	Gold	Solder Retention
Molex 5009131002	0.063 in	Surface Mount	1.8 mm	0.016 in	2	8 µin	100	Center Strip Contacts Receptacle	Gold	Solder Retention

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 1.80 or 2.30mm Mated Height, 4.20mm Mated Width, 50 Circuits
