SHCS03 Series
Manufacturer: Altech Corporation
Beta
⌘K

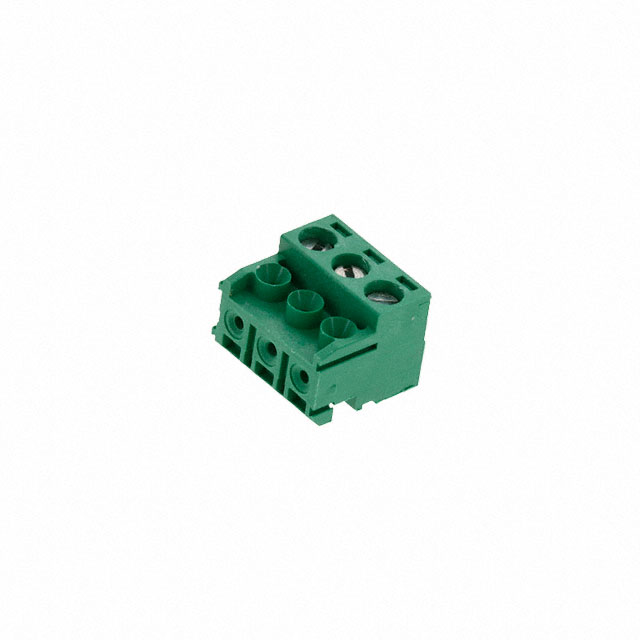

TERM BLOCK PLUG 3POS 5MM
| Part | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Current - IEC | Plug Wire Entry Options | Pitch | Operating Temperature (Min) | Operating Temperature (Max) | Number of Levels | Type | Color | Voltage - IEC | Voltage - UL | Mounting Type | Current - UL | Contact Mating Finish | Wire Gauge or Range - mm² (Minimum) | Wire Gauge or Range - mm² (Maximum) | Number of Positions | Termination Style | Positions Per Level | Screw Size | Housing Material | Insulation Height | Wire Strip Length | Material Flammability Rating | Contact Material | Torque - Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 30 AWG | 14 AWG | 15 A | 180° 90° | 0.197 in | -30 °C | 105 °C | 1 | Plug for Unshrouded Header | Green | 250 V | 300 V | Free Hanging (In-Line) | 15 A | Nickel | 0.25 mm² | 4 mm² | 3 | Screw - Rising Cage Clamp | 3 | M3 | Nylon PA Polyamide | 0.453 in | 7 mm | UL94 V-0 | Copper | 0.51 Nm |
