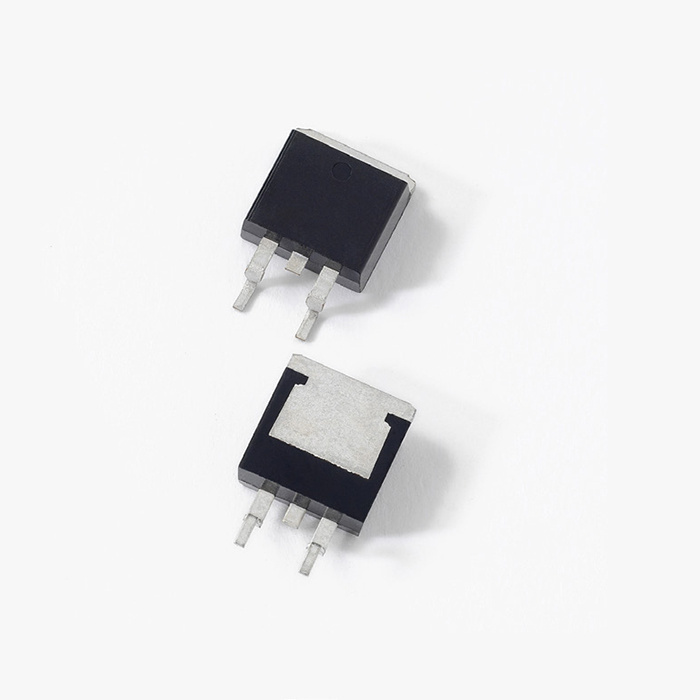

DURB2020CT Series

200V 20A Ultrafast Rectifier DUR series

Catalog

200V 20A Ultrafast Rectifier DUR series

Part	Reverse Recovery Time (trr)	Diode Pair Count	Diode Configuration	Package Name	Package / Case	Voltage - Forward (Vf) (Max)	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Mounting Type	Voltage - DC Reverse (Vr) (Max)	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Technology
LITTELFUSE DURB2020CT	35 ns	1 pair	Common Cathode	TO-263 (D2PAK)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.15 V	10 A	15 µA	150 °C	-55 °C	Surface Mount	200 V	500 ns	200 mA	Standard

Catalog

200V 20A Ultrafast Rectifier DUR series

Description

Littelfuse DURB2020CT series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, low-leakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
