T37001 Series

Catalog

CONN BARRIER STRIP 8CIRC 0.375"

Part	Mounting Type	Material Flammability Rating	Material - Insulation	Operating Temperature	Voltage Rating	Number of Wire Entries	Features	Number of Circuits	Bottom Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Barrier Type	Pitch	Top Termination	Terminal Block Type	Current Rating	Number of Rows
Curtis Industries T37001-08-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	8	Flange	8	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37001-18-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	18	Flange	18	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37001-06-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	6	Flange	6	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37001-23-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	23	Flange	23	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37001-21-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	21	Flange	21	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37001-09-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	9	Flange	9	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37001-19-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	19	Flange	19	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1

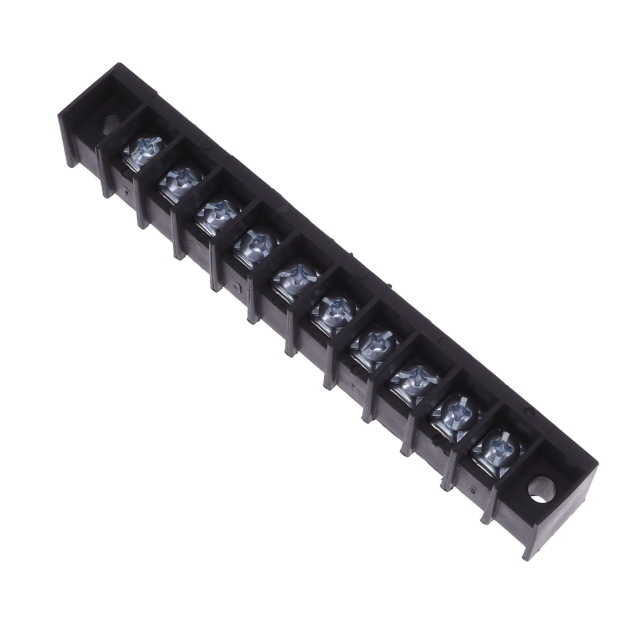

Curtis Industries T37001-10-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	10	Flange	10	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37001-17-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	17	Flange	17	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37001-15-0	Chassis Panel	UL94 V-0	Polypropylene PP	105 °C	300 VAC/DC	15	Flange	15	Closed	12 AWG	22 AWG	3 Wall (Tri)	0.375 in	Screws with Captive Plate	Barrier Block	20 A	1
