747306 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN D-SUB PLUG 15POS IDC
| Part | Number of Positions | Termination | Material Flammability Rating | Contact Material | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Type | Color | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Connector Type | Flange Feature | Mounting Type | Number of Rows | Features | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

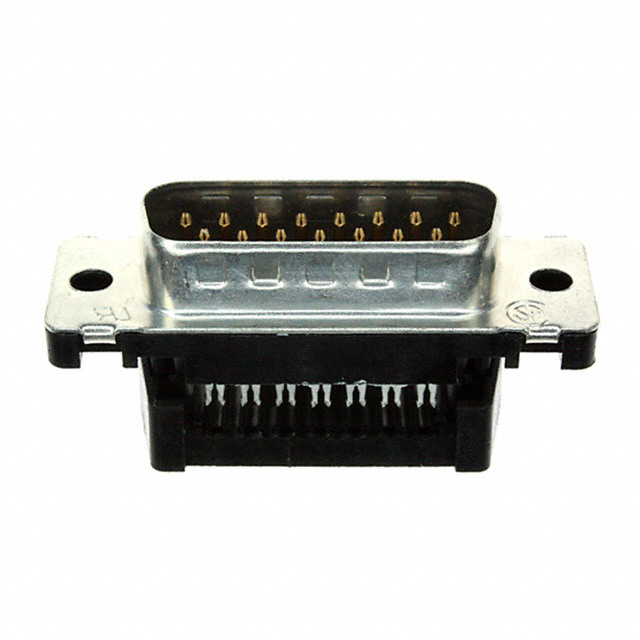

 TE Connectivity Raychem Cable Protection | 15 | IDC Ribbon Cable | UL94 V-0 | Phosphor Bronze | 2 | 0.76 Ám | 30 Áin | Gold | Signal | Black | 1.25 A | 105 ░C | -55 °C | Thermoplastic | Male Pins Plug | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | 2 | Feed Through Grounding Indents | D-Sub | ||

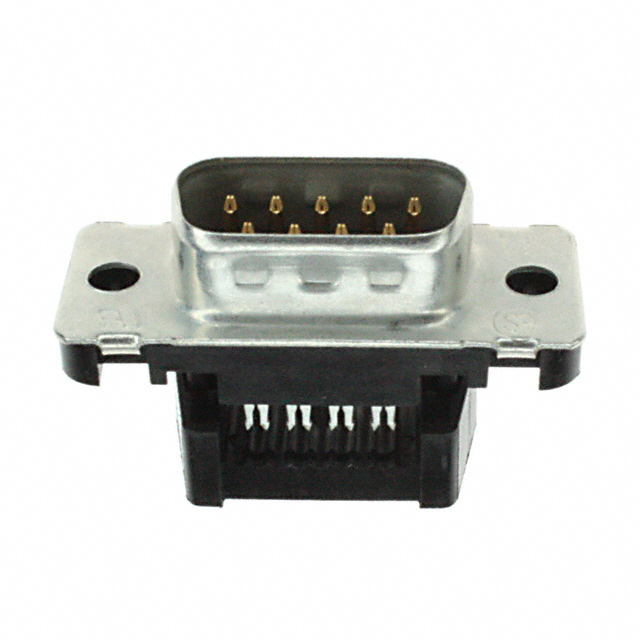

 TE Connectivity Raychem Cable Protection | 9 | IDC Ribbon Cable | UL94 V-0 | Phosphor Bronze | 0.76 Ám | 30 Áin | Gold | Signal | Black | 1.25 A | 105 ░C | -55 °C | Thermoplastic | Male Pins Plug | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | 2 | Feed Through Grounding Indents | D-Sub | DE E | 1 |
