5177984 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN FINE PITCH CONNECTOR HDR 60 POS 0.8MM SOLDER ST TOP ENTRY SMD BOX/TUBE
| Part | Contact Finish | Mated Stacking Height Options | Height Above Board | Mounting Type | Connector Type | Number of Rows | Number of Positions | Features | Pitch | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|

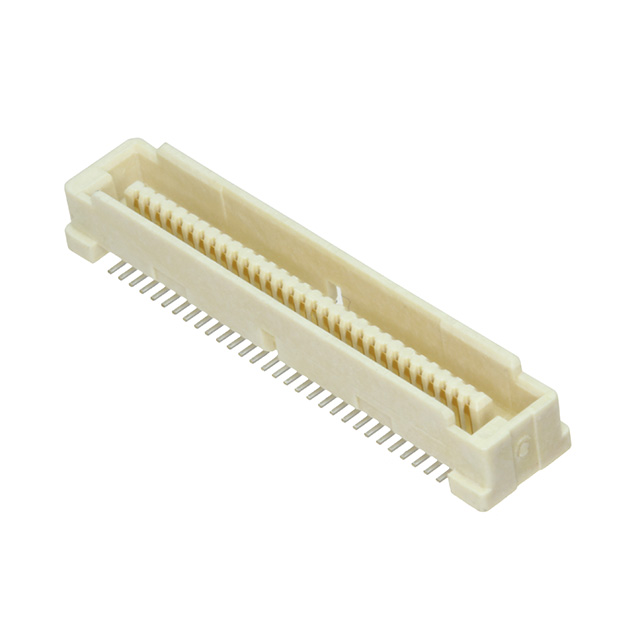

 TE Connectivity AMP Connectors | Gold | 13mm 17mm 5mm 9mm | 0.181 in | Surface Mount | Center Strip Contacts Plug | 2 | 60 | Board Guide | 0.031 in | 8 µin |
 TE Connectivity AMP Connectors | Gold | 13mm 17mm 5mm 9mm | 0.181 in | Surface Mount | Center Strip Contacts Plug | 2 | 140 | Board Guide | 0.031 in | 8 µin |

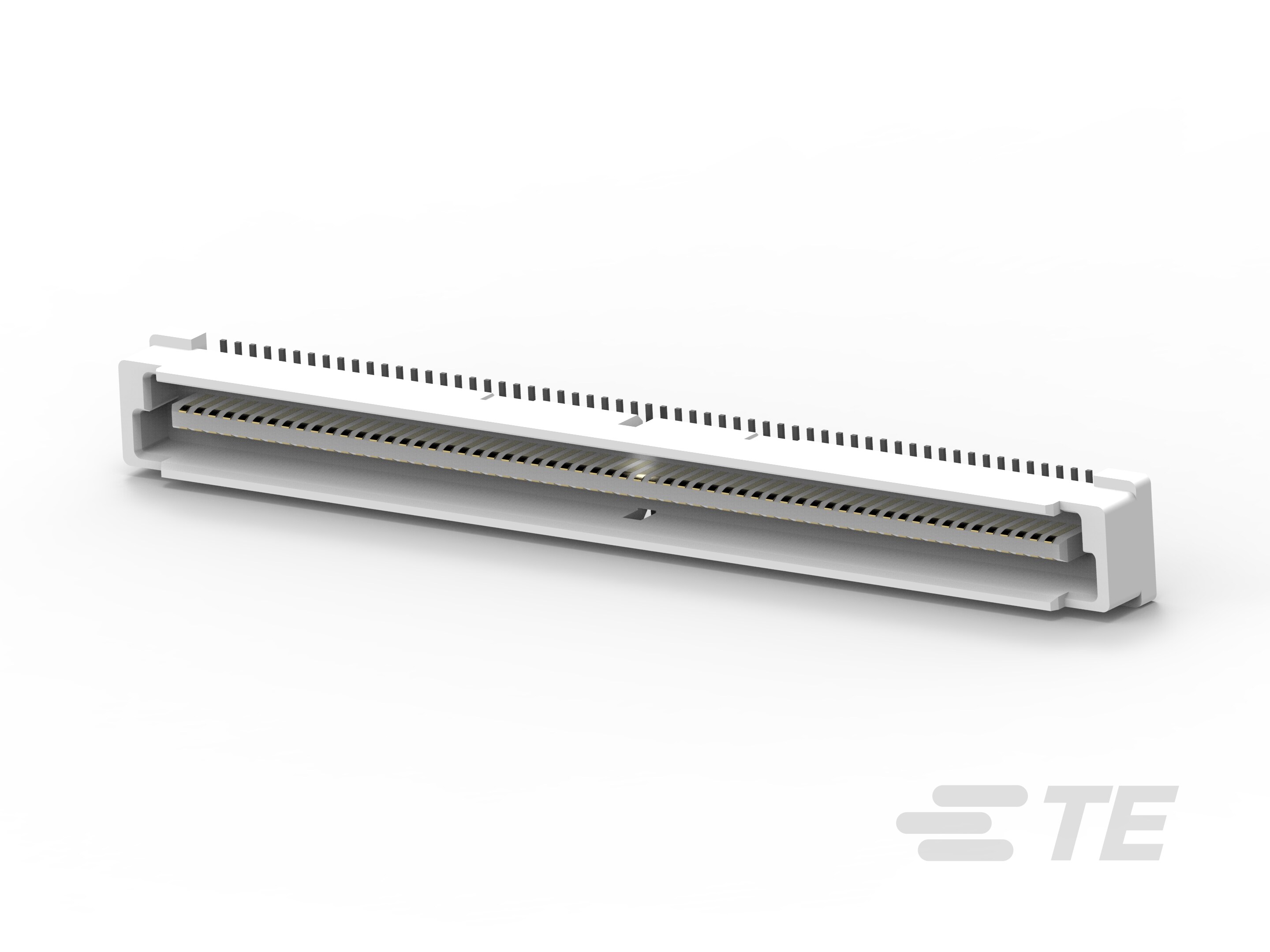

 TE Connectivity AMP Connectors | Gold | 13mm 17mm 5mm 9mm | 0.181 in | Surface Mount | Center Strip Contacts Plug | 2 | 120 | Board Guide | 0.031 in | 8 µin |

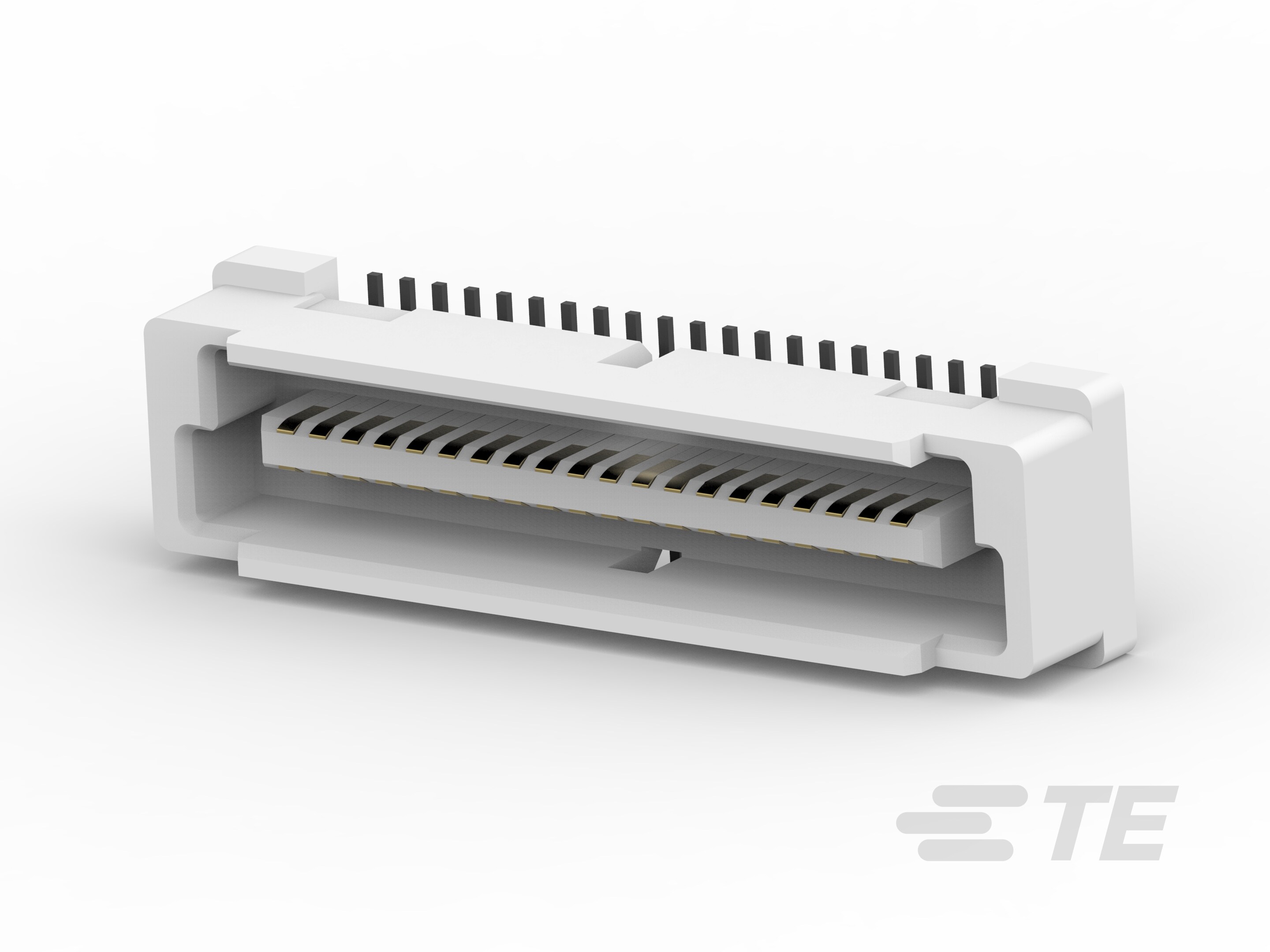

 TE Connectivity AMP Connectors | Gold | 13mm 17mm 5mm 9mm | 0.181 in | Surface Mount | Center Strip Contacts Plug | 2 | 40 | Board Guide | 0.031 in | 8 µin |

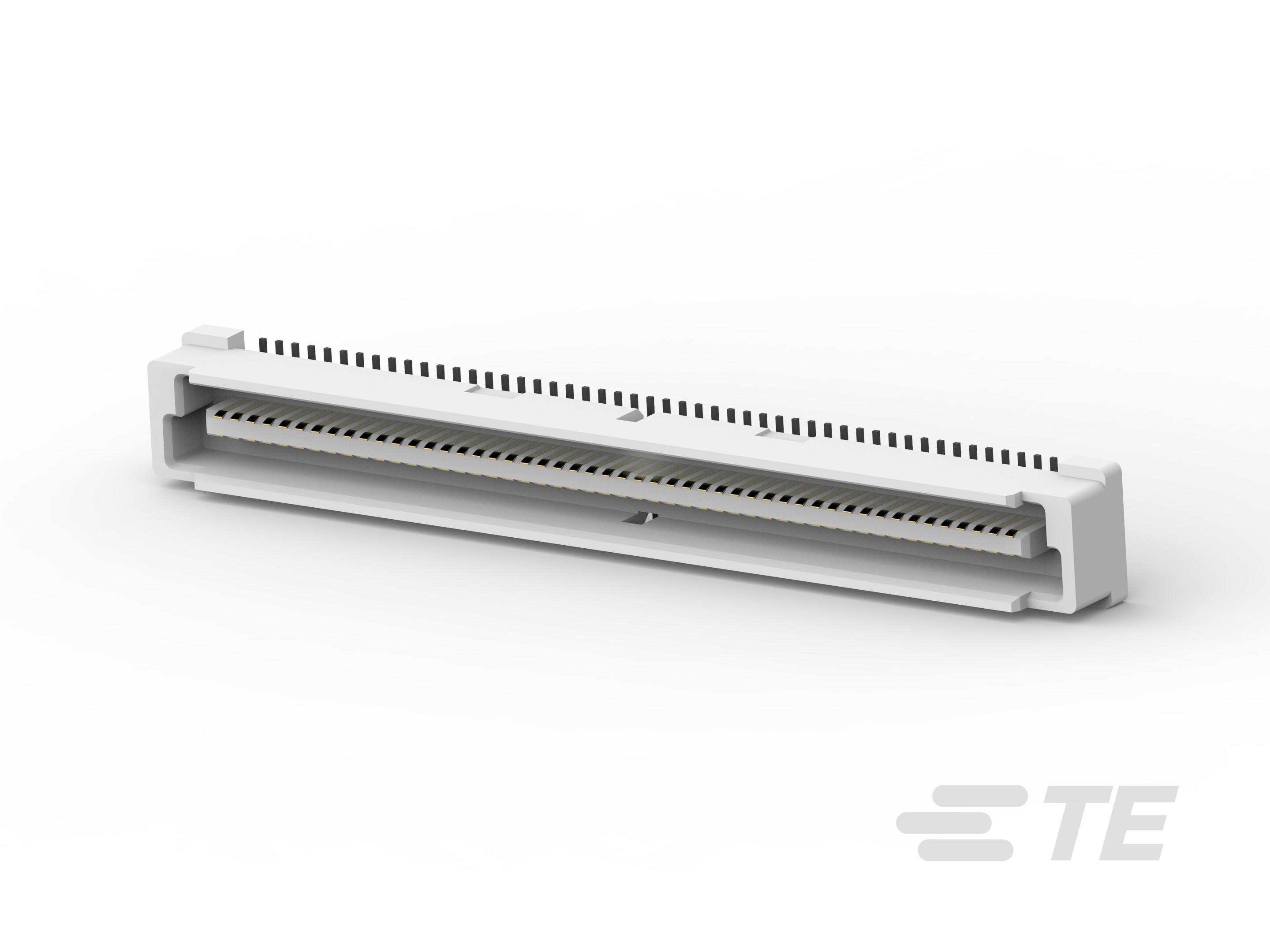

 TE Connectivity AMP Connectors | Gold | 13mm 17mm 5mm 9mm | 0.181 in | Surface Mount | Center Strip Contacts Plug | 2 | 100 | Board Guide | 0.031 in | 8 µin |
 TE Connectivity AMP Connectors | Gold | 13mm 17mm 5mm 9mm | 0.181 in | Surface Mount | Center Strip Contacts Plug | 2 | 80 | Board Guide | 0.031 in | 8 µin |
