3229 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

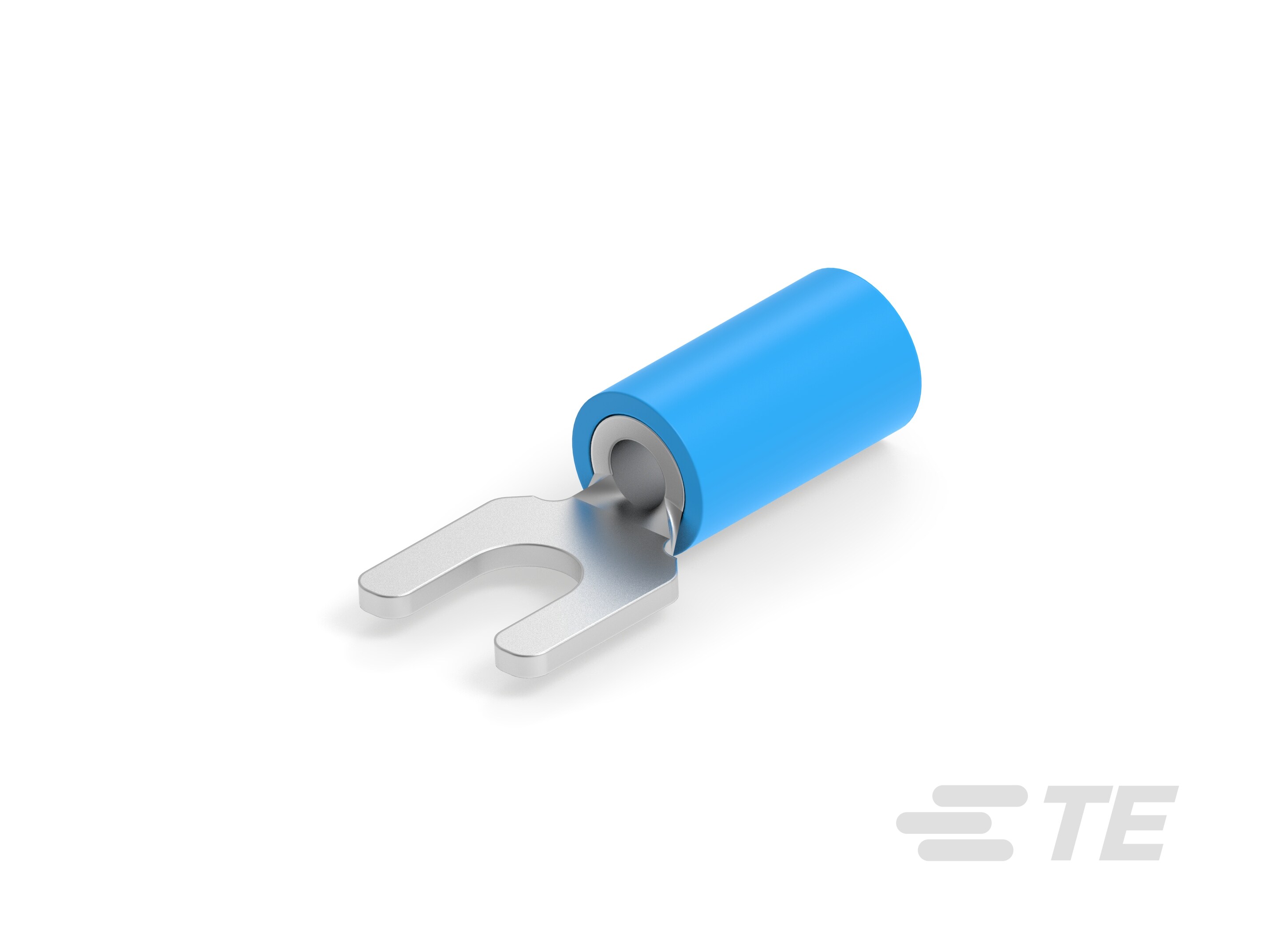

FORK / SPADE TONGUE TERMINAL, PLASTI-GRIP SERIES, 16 AWG, 14 AWG, 2.62 MM², M3.5, #6
| Part | Width - Outer Edges | Color | Mounting Type | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Termination | Contact Material | Stud/Tab Size | Features | Length - Overall | Insulation | Contact Finish | Terminal Type | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation | Length - Termination | Length - Ring Center to Termination | Tongue Inside Opening | Insulation Diameter | Wire Gauge | Thickness | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.297 in | Blue | Free Hanging (In-Line) | 16 AWG | 14 AWG | Crimp | Copper | 6 Stud | Serrated Termination | 0.765 in | Insulated | Tin | Standard | 0.105 in | 0.145 in | Poly-Vinyl Chloride PVC | 0.416 in | 0.203 in | 0.145 in | ||||
 TE Connectivity AMP Connectors | 0.807 in | Blue | Free Hanging (In-Line) Right Angle | Crimp | Copper | 0.25 Stud | Serrated Termination | Insulated | Tin | Circular | Vinyl | 0.632 in | 1/0 AWG | 0.07 in | |||||||||

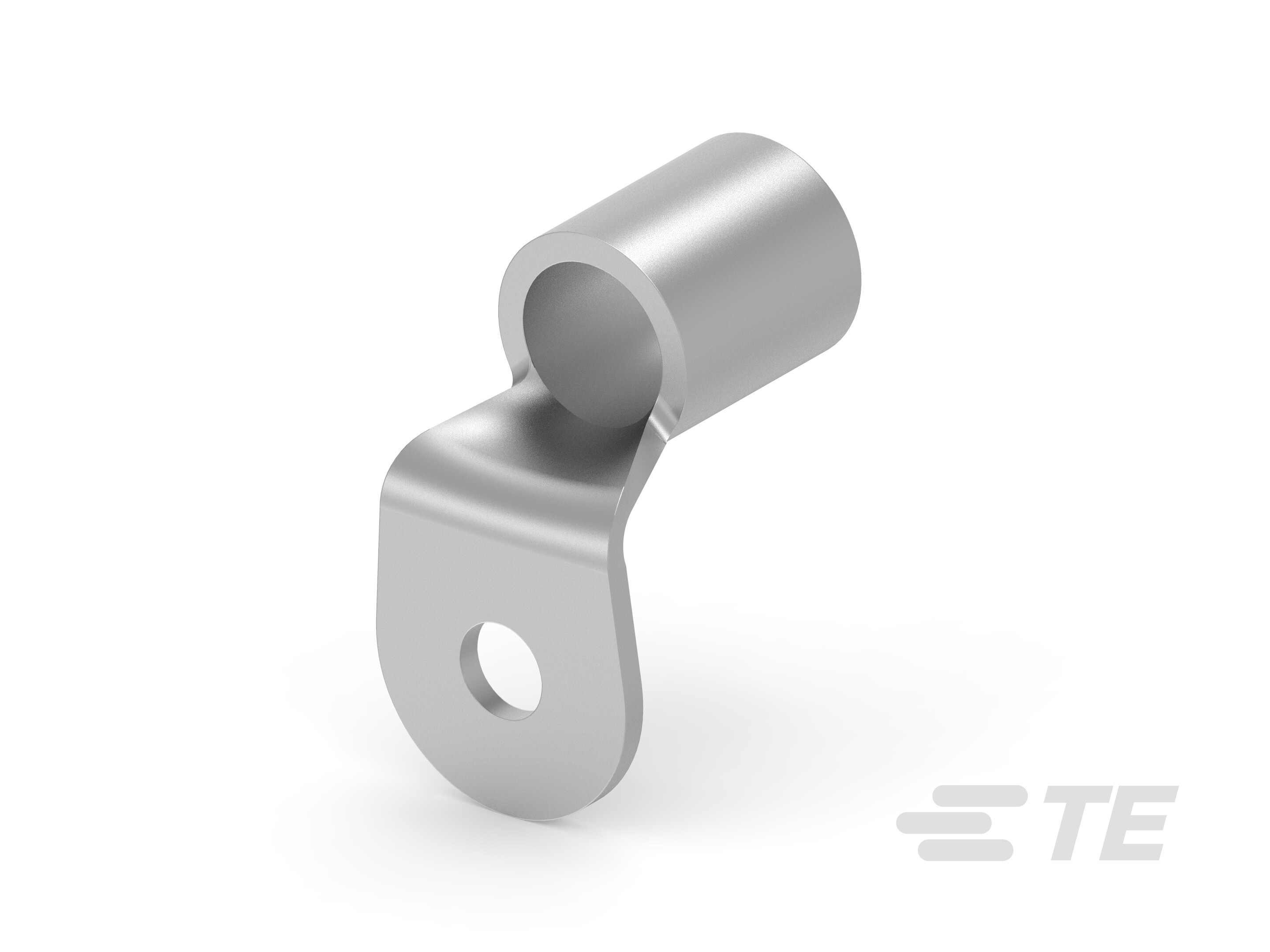

 TE Connectivity AMP Connectors | 0.807 in | Free Hanging (In-Line) Right Angle | Crimp | Copper | 0.25 Stud | Non-Insulated | Tin | Circular | 1/0 AWG | 0.07 in | |||||||||||||

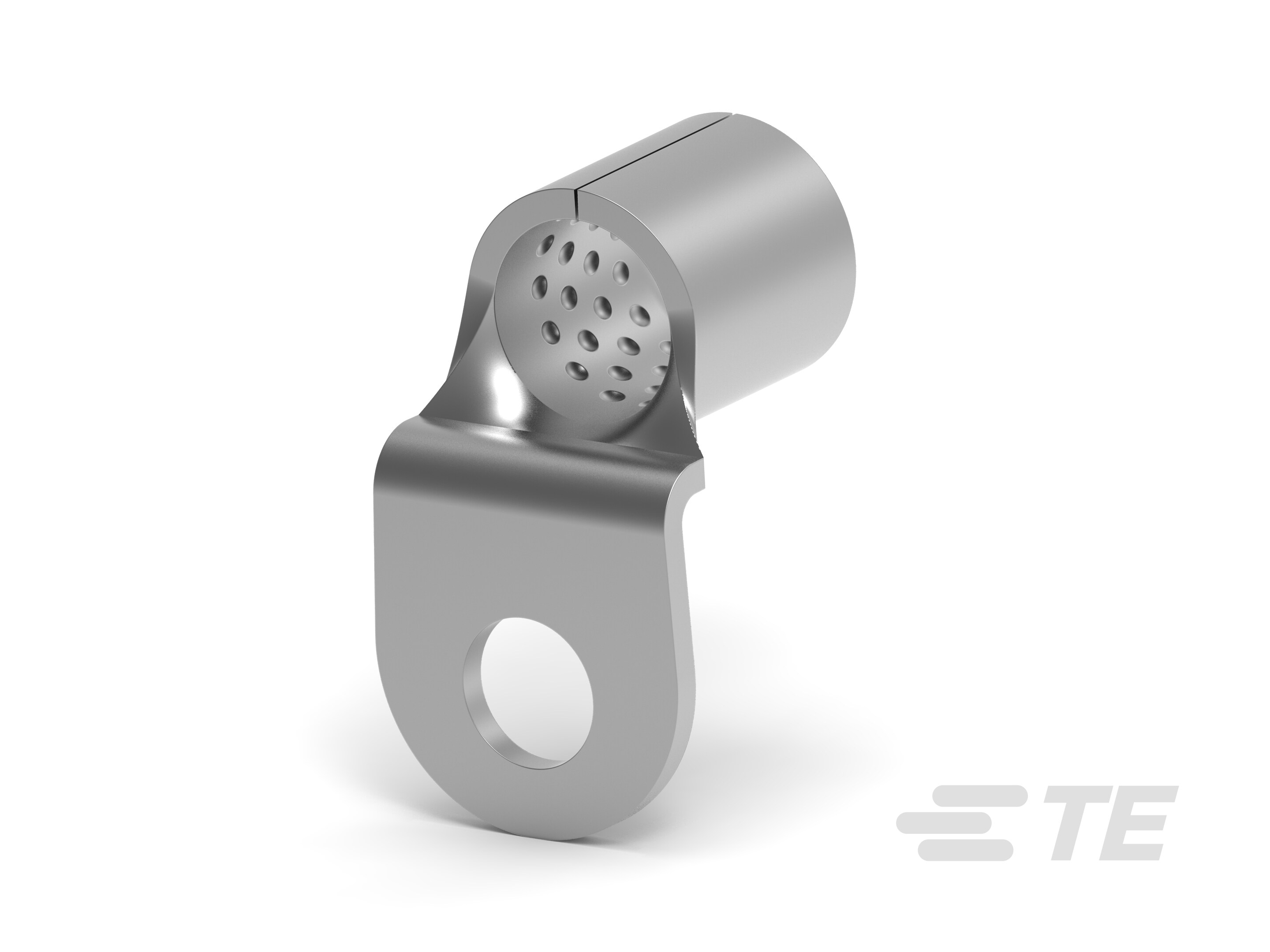

 TE Connectivity AMP Connectors | 0.926 in | Free Hanging (In-Line) Right Angle | Crimp | Copper | 0.375 in | Serrated Termination | Non-Insulated | Tin | Circular | 2/0 AWG | 0.08 in | 3 Stud 8 Stud | |||||||||||
 TE Connectivity AMP Connectors | 0.675 in | Red | Free Hanging (In-Line) Right Angle | Crimp | Copper | 0.25 Stud | Serrated Termination | Insulated | Tin | Circular | Vinyl | 0.505 in | 2 AWG | 0.057 in | |||||||||
 TE Connectivity AMP Connectors | 0.297 in | Free Hanging (In-Line) | 16 AWG | 14 AWG | Crimp | Copper | 6 Stud | Brazed Seam Serrated Termination | 0.53 in | Non-Insulated | Tin | Standard | 0.181 in | 0.203 in | 0.145 in | ||||||||
 TE Connectivity AMP Connectors | 0.807 in | Free Hanging (In-Line) Right Angle | Crimp | Copper | 0.375 in | Serrated Termination | Non-Insulated | Tin | Circular | 1/0 AWG | 0.07 in | 3 Stud 8 Stud | |||||||||||
TE Connectivity AMP Connectors | 0.926 in | Yellow | Free Hanging (In-Line) Right Angle | Crimp | Copper | 0.375 in | Serrated Termination | Insulated | Tin | Circular | Vinyl | 0.684 in | 2/0 AWG | 0.08 in | 3 Stud 8 Stud |
