DA14683 Series

Manufacturer: Renesas Electronics Corporation

Catalog

BLUETOOTH LOW ENERGY DEVELOPMENT

Part	Supplied Contents	For Use With/Related Products	Contents	Utilized IC / Part	Type	Frequency	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Package Length	Package Width	Current - Receiving	Package / Case	Protocol	Mounting Type	Current - Transmitting	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	RF Family/Standard	Power - Output	Sensitivity	Serial Interfaces	GPIO Count

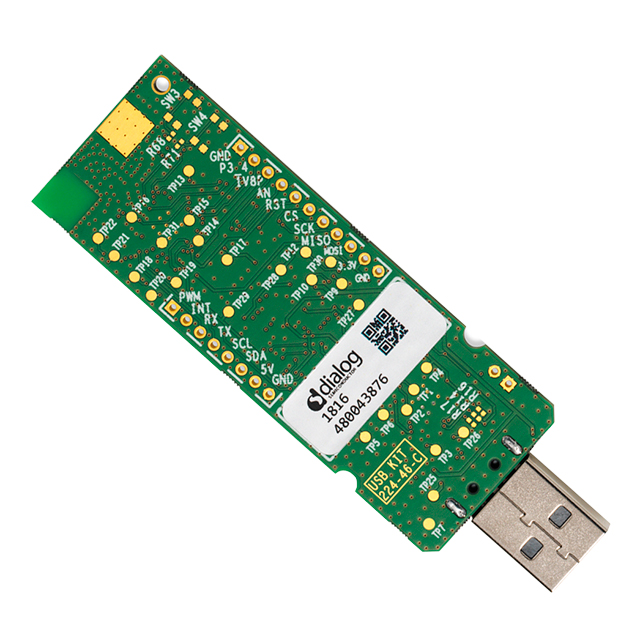

Renesas Electronics Corporation DA14683-00A9DEVKT-U	Board(s)	DA14683	Board	DA14683	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz
Renesas Electronics Corporation DA14683-00000A9					TxRx + MCU	2.4 GHz	100 °C	-40 °C	53-WLCSP	3.41 mm	3.01 mm	3.1 mA	53-UFBGA WLCSP	Bluetooth v5.0	Surface Mount	3.4 mA	1.9 V	3.6 V	Bluetooth	0 dBm	-94 dBm	GPIO I2S SPI UART USB	21
Renesas Electronics Corporation DA14683-00000A92					TxRx + MCU	2.4 GHz	100 °C	-40 °C	60-AQFN	6 mm	6 mm	3.1 mA	60-VQFN Dual Rows Exposed Pad	Bluetooth v5.0	Surface Mount	3.4 mA	1.9 V	3.6 V	Bluetooth	0 dBm	-94 dBm	GPIO I2S SPI UART USB	21
Renesas Electronics Corporation DA14683-00000U22					TxRx + MCU	2.4 GHz	100 °C	-40 °C	53-WLCSP	3.41 mm	3.01 mm	3.1 mA	53-UFBGA WLCSP	Bluetooth v5.0	Surface Mount	3.4 mA	1.9 V	3.6 V	Bluetooth	0 dBm	-94 dBm	GPIO I2S SPI UART USB	21
Renesas Electronics Corporation DA14683-00A9DEVKT-P	Board(s)	DA14683	Board	DA14683	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz
Renesas Electronics Corporation DA14683-00000U2					TxRx + MCU	2.4 GHz	100 °C	-40 °C	53-WLCSP	3.41 mm	3.01 mm	3.1 mA	53-UFBGA WLCSP	Bluetooth v5.0	Surface Mount	3.4 mA	1.9 V	3.6 V	Bluetooth	0 dBm	-94 dBm	GPIO I2S SPI UART USB	21

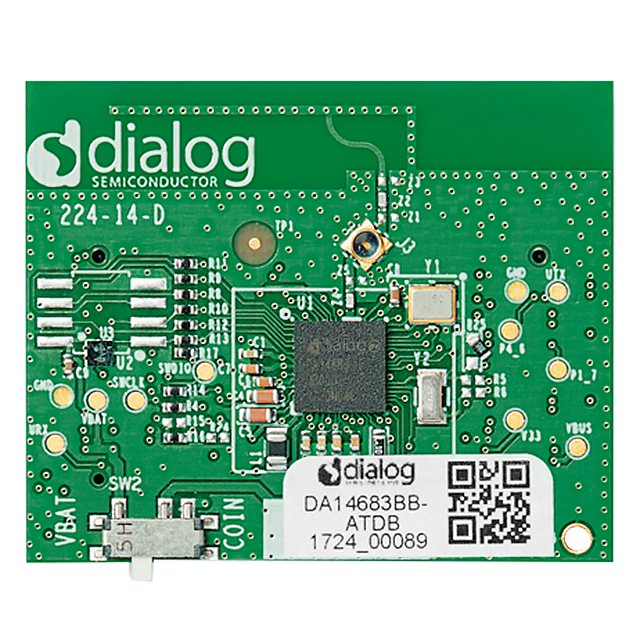

Renesas Electronics Corporation DA14683-00A9DB-P	Board(s)	DA14683	Board	DA14683	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz
