MAX17595 Series

Catalog

POWER MANAGEMENT, EVALUATION KIT

Part	Supplied Contents	Board Type	Voltage - Input (Range 2) Minimum	Voltage - Input (Range 2) Maximum	Voltage - Input (Range 1) Maximum	Voltage - Input (Range 1) Minimum	Power - Output	Total Output Count	Output Type	Isolated Output Count	Voltage - Output	Regulator Topology	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Contents	Current - Output	Utilized IC / Part	Main Purpose	Frequency - Switching	Mounting Type	Output Isolation	Voltage - Start Up	Operating Temperature (Max)	Operating Temperature (Min)	Duty Cycle	Frequency - Switching (Max)	Frequency - Switching (Min)	Control Features	Internal Switch(s)	Package Width	Package Name	Package Length	Fault Protection	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Package / Case	Topology

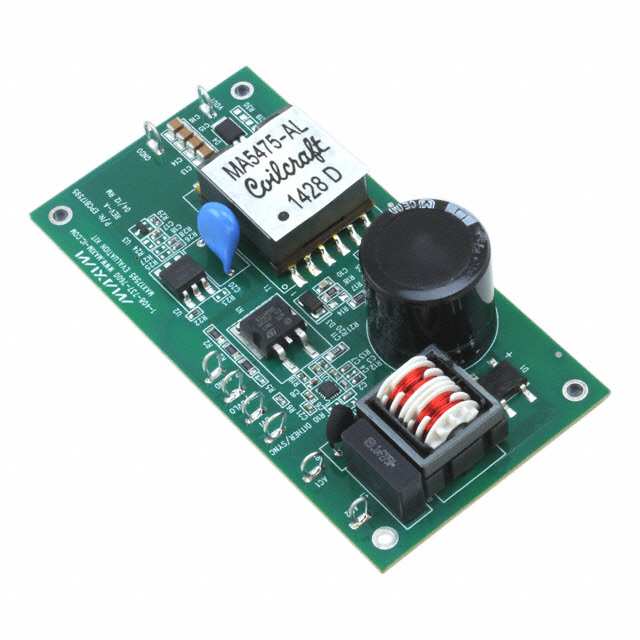

Analog Devices Inc./Maxim Integrated MAX17595EVKIT#	Board(s)	Fully Populated	120 VAC	375 V	265 VAC	85 V	30 W	1	Isolated	1	15 V	Flyback	265 VAC	85 VAC	375 V	120 V	Board	2 A	MAX17595	AC/DC Primary Side	100 kHz
Analog Devices Inc./Maxim Integrated MAX17595ATE+																						Surface Mount	Isolated	20 V	125 °C	-40 °C	48 %	1 MHz	100 kHz	EN Frequency Control Soft Start Sync	No	3 mm	16-TQFN	3 mm	Current Limiting Over Temperature Over Voltage Short Circuit	8 V	29 V	16-WFQFN Exposed Pad	Flyback
Analog Devices Inc./Maxim Integrated MAX17595ATE+T																						Surface Mount	Isolated	20 V	125 °C	-40 °C	48 %	1 MHz	100 kHz	EN Frequency Control Soft Start Sync	No	3 mm	16-TQFN	3 mm	Current Limiting Over Temperature Over Voltage Short Circuit	8 V	29 V	16-WFQFN Exposed Pad	Flyback
