Power Diode Discretes-Sonic TO-220AC
Description
AI
The SONIC series offers improved reverse recovery characteristics with hard turn-off capability and breakdown voltages up to 1800V.
Beta
⌘K
Power Diode Discretes-Sonic TO-220AC
Power Diode Discretes-Sonic TO-220AC
| Part | Voltage - Forward (Vf) (Max) | Technology | Package / Case | Reverse Recovery Time (trr) | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) | Current - Reverse Leakage | Package Name | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 2.2 V | Standard | TO-220-2 | 35 ns | 500 ns | 200 mA | 150 °C | -55 °C | 5 A | 600 V | 10 µA | TO-220AC | Through Hole |

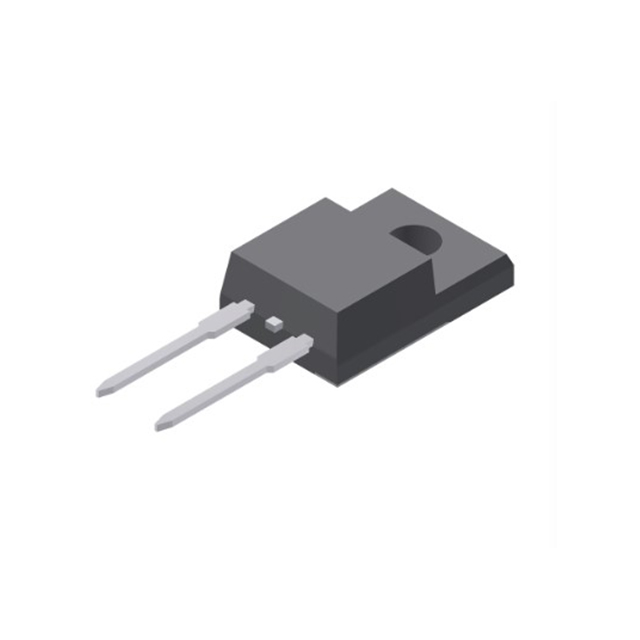

 LITTELFUSE | 2.2 V | Standard | Isolated Tab TO-220-2 Full Pack | 35 ns | 500 ns | 200 mA | 150 °C | -55 °C | 5 A | 600 V | 10 µA | TO-220ACFP | Through Hole |
