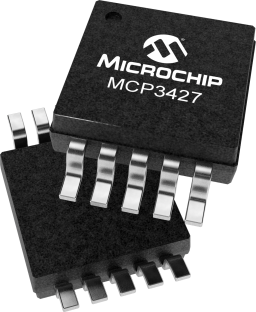

MCP3427 Series

Catalog

ANALOG TO DIGITAL CONVERTER, 16 BIT, 15 SPS, DIFFERENTIAL, I2C, SINGLE, 2.7 V

Part	Sampling Rate (Per Second)	Number of A/D Converters	Number of Bits	Data Interface	Number of Inputs	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Package Length	Package Name	Package Width	Reference Type	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Features	Configuration	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Input Type	Architecture	Package / Case
Microchip Technology MCP3427-E/UN	15 Hz	1 count	16 bits	I2C	2	2.7 V	5.5 V	0.118 in	10-MSOP 10-TFSOP	3 mm	Internal	2.7 V	5.5 V	PGA Selectable Address	MUX-PGA-ADC	Surface Mount	125 °C	-40 °C	Differential	Sigma-Delta
Microchip Technology MCP3427T-E/MF	15 Hz	1 count	16 bits	I2C	2	2.7 V	5.5 V	3 mm	10-DFN	3 mm	Internal	2.7 V	5.5 V	PGA Selectable Address	MUX-PGA-ADC	Surface Mount	125 °C	-40 °C	Differential	Sigma-Delta	10-VFDFN Exposed Pad
Microchip Technology MCP3427-E/MF	15 Hz	1 count	16 bits	I2C	2	2.7 V	5.5 V	3 mm	10-DFN	3 mm	Internal	2.7 V	5.5 V	PGA Selectable Address	MUX-PGA-ADC	Surface Mount	125 °C	-40 °C	Differential	Sigma-Delta	10-VFDFN Exposed Pad
Microchip Technology MCP3427T-E/UN	15 Hz	1 count	16 bits	I2C	2	2.7 V	5.5 V	0.118 in	10-MSOP 10-TFSOP	3 mm	Internal	2.7 V	5.5 V	PGA Selectable Address	MUX-PGA-ADC	Surface Mount	125 °C	-40 °C	Differential	Sigma-Delta
