ATZB-RF Series

Catalog

RF TXRX MOD 802.15.4 CHIP SMD

Part	RF Family/Standard	Utilized IC / Part	Data Rate	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Current - Receiving	Frequency	Protocol	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Antenna Type	Sensitivity	Power - Output	Current - Transmitting (Min)	Current - Transmitting (Max)	Serial Interfaces	Current - Receiving (Min)	Current - Receiving (Max)	Current - Transmitting
Microchip Technology ATZB-RF-212B-0-CNR	802.15.4	AT86RF212B	1 Mbps	3.6 V	1.8 V	Surface Mount	9.3 mA	900 MHz	Zigbee®	-40 °C	85 °C	Module	Chip Integrated	-103 dBm	11 dBm	5 mA	26.9 mA	SPI
Microchip Technology ATZB-RF-212B-0-CN	802.15.4	AT86RF212B	1 Mbps	3.6 V	1.8 V	Surface Mount	9.3 mA	900 MHz	Zigbee®	-40 °C	85 °C	Module	Chip Integrated	-103 dBm	11 dBm	5 mA	26.9 mA	SPI
Microchip Technology ATZB-RF-233-1-C	802.15.4	AT86RF233	2 Mbps	3.6 V	2 V	Surface Mount		2.4 GHz	Zigbee®	-40 °C	85 °C	Module	Chip Integrated	-105 dBm	19.9 dBm			SPI	7.5 mA	17 mA	157 mA
Microchip Technology ATZB-RF-233-1-CR	802.15.4	AT86RF233	2 Mbps	3.6 V	2 V	Surface Mount		2.4 GHz	Zigbee®	-40 °C	85 °C	Module	Chip Integrated	-105 dBm	19.9 dBm			SPI	7.5 mA	17 mA	157 mA

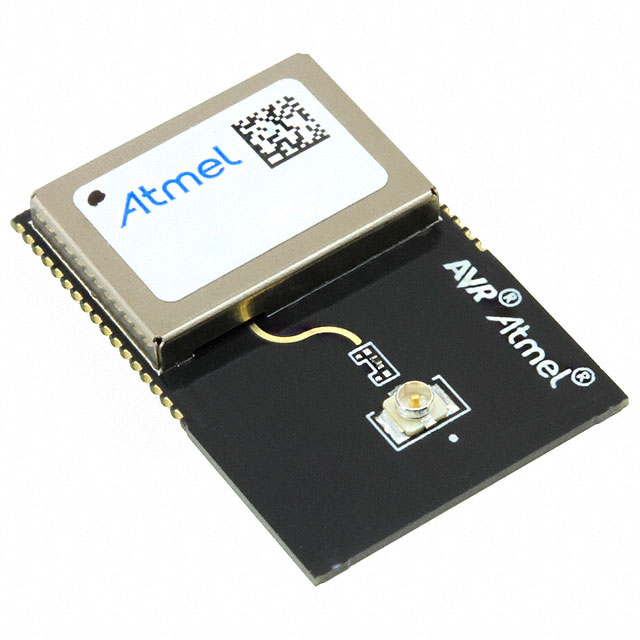

Microchip Technology ATZB-RF-212B-0-U	802.15.4	AT86RF212B	1 Mbps	3.6 V	1.8 V	Surface Mount	8.7 mA	900 MHz	Zigbee®	-40 °C	85 °C	Module	Antenna Not Included U.FL	-103 dBm	10 dBm			I2C SPI UART			27 mA
Microchip Technology ATZB-RF-212B-0-UR	802.15.4	AT86RF212B	1 Mbps	3.6 V	1.8 V	Surface Mount	8.7 mA	900 MHz	Zigbee®	-40 °C	85 °C	Module	Antenna Not Included U.FL	-103 dBm	10 dBm			I2C SPI UART			27 mA
