QRM8-052 Series | Samtec Inc. | Zenode.ai

Catalog

Board to Board & Mezzanine Connectors

Part	Pitch	Connector Type	Number of Positions	Contact Finish Thickness	Mated Stacking Height Options	Height Above Board	Contact Finish	Mounting Type	Number of Rows	Features
Samtec Inc. QRM8-052-05.0-L-D-A-GP-TR	0.031 in	Array Male Pins	104	10 Ąin	10mm 12mm	0.307 in	Gold	Surface Mount	2	Board Guide Ground Bus (Plane)
Samtec Inc. QRM8-052-07.0-L-D-A-GP-K-TR	0.031 in	Array Male Pins	104	10 Ąin	12mm 14mm	0.385 in	Gold	Surface Mount	2	Board Guide Ground Bus (Plane) Pick and Place

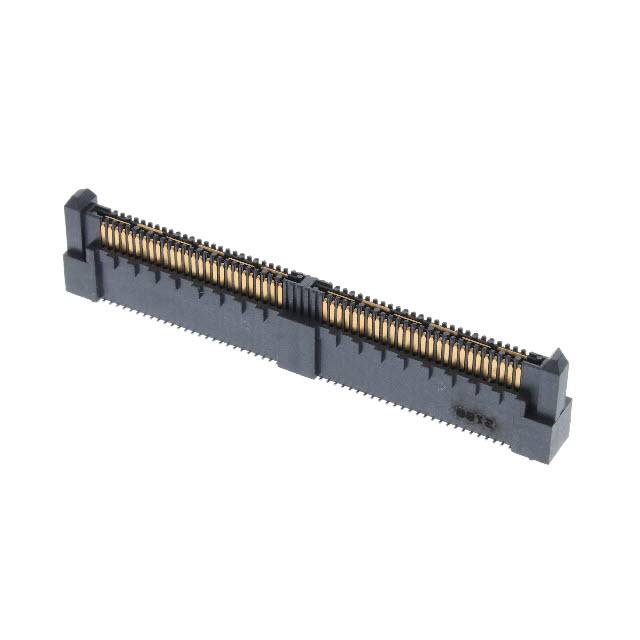

Samtec Inc. QRM8-052-07.0-L-D-A-GP	0.031 in	Array Male Pins	104	10 Ąin	12mm 14mm	0.385 in	Gold	Surface Mount	2	Board Guide Ground Bus (Plane)
Samtec Inc. QRM8-052-02.0-S-D-A-GP-K-TR	0.031 in	Array Male Pins	104		7mm 9mm	0.189 in	Gold	Surface Mount	2	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRM8-052-01-L-RA-GP-TR	0.031 in	Array Male Pins	104	10 Ąin			Gold	Right Angle Surface Mount	2	Board Guide Ground Bus (Plane)
Samtec Inc. QRM8-052-07.0-L-D-A-TR	0.031 in	Array Male Pins	104	10 Ąin	12mm 14mm	0.385 in	Gold	Surface Mount	2	Board Guide Ground Bus (Plane)
Samtec Inc. QRM8-052-02.0-L-D-A-GP-K	0.031 in	Array Male Pins	104	10 Ąin	7mm 9mm	0.189 in	Gold	Surface Mount	2	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRM8-052-05.0-S-D-A-GP	0.031 in	Array Male Pins	104		10mm 12mm	0.307 in	Gold	Surface Mount	2	Board Guide Ground Bus (Plane)
Samtec Inc. QRM8-052-05.0-L-D-A-K-TR	0.031 in	Array Male Pins	104	10 Ąin	10mm 12mm	0.307 in	Gold	Surface Mount	2	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRM8-052-01-S-RA-GP-K-TR	0.031 in	Array Male Pins	104				Gold	Right Angle Surface Mount	2	Board Guide Ground Bus (Plane) Pick and Place
