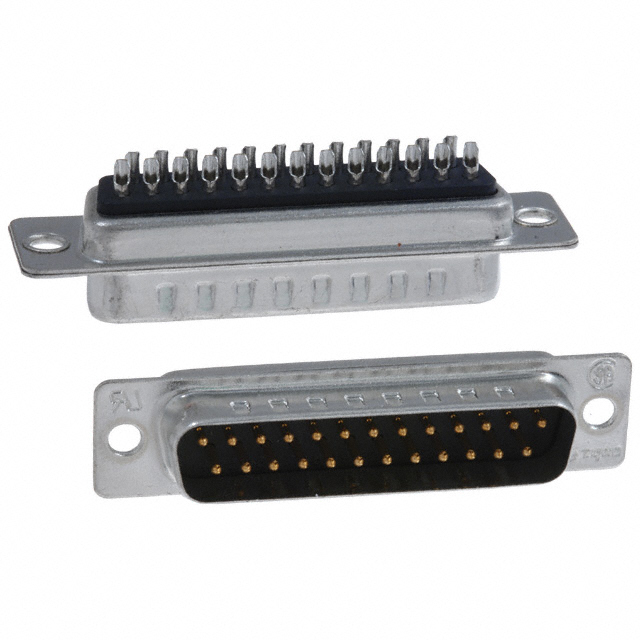

747912 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN D-SUB PLUG 25POS SLDR CUP

Part	Number of Rows	Finish	Shell Material	Connector Style	Contact Finish Thickness	Current Rating	Connector Type	Flange Feature	Contact Type	Material Flammability Rating	Termination	Shell Size	Connector Layout	Number of Positions	Mounting Type	Contact Finish	Features	Contact Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Dielectric Material
TE Connectivity AMP Connectors 747912-8	2	Tin Plated	Steel	D-Sub	8 µin	3 A	Male Pins Plug	Housing Shell (Unthreaded)	Signal	UL94 V-0	Solder Cup	3	B DB	25	Free Hanging (In-Line)	Gold	Grounding Indents	Brass	Black	-55 °C	105 °C	250 V	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 747912-4	2	Blue Zinc Plated	Steel	D-Sub	8 µin	3 A	Male Pins Plug	Housing Shell (Unthreaded)	Signal	UL94 V-0	Solder Cup	3	B DB	25	Free Hanging (In-Line)	Gold		Brass	Black	-55 °C	105 °C	250 V	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 747912-2	2	Tin Plated	Steel	D-Sub	8 µin	3 A	Male Pins Plug	Housing Shell (Unthreaded)	Signal	UL94 V-0	Solder Cup	3	B DB	25	Free Hanging (In-Line)	Gold	Grounding Indents	Brass	Black	-55 °C	105 °C	250 V	Glass Filled Polybutylene Terephthalate (PBT)

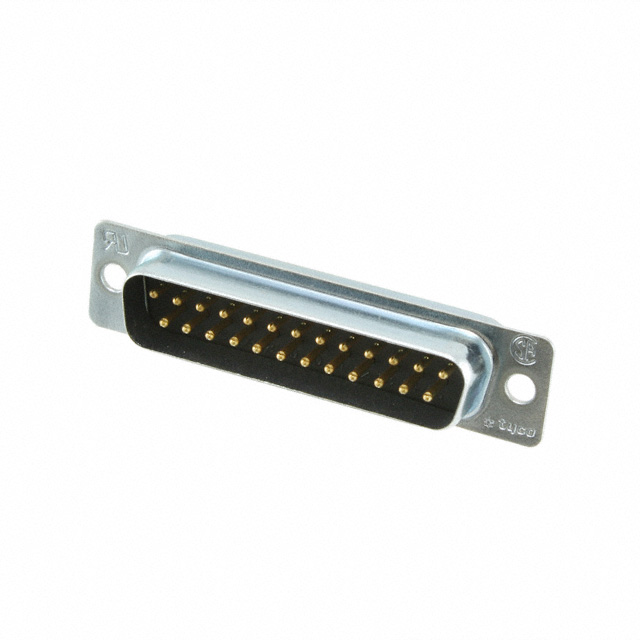

TE Connectivity AMP Connectors 5-747912-4	2	Tin Plated	Steel	D-Sub	8 µin	3 A	Male Pins Plug	Housing Shell (Unthreaded)	Signal	UL94 V-0	Solder Cup	3	B DB	25	Free Hanging (In-Line)	Gold	Grounding Indents	Brass	Black	-55 °C	105 °C	250 V	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 5-747912-7	2	Tin Plated	Steel	D-Sub	8 µin	3 A	Male Pins Plug	Cable Side (4-40)	Signal	UL94 V-0	Solder Cup	3	B DB	25	Free Hanging (In-Line)	Gold	Grounding Indents	Brass	Black	-55 °C	105 °C	250 V	Glass Filled Polybutylene Terephthalate (PBT)
