CPC9909 Series

Catalog

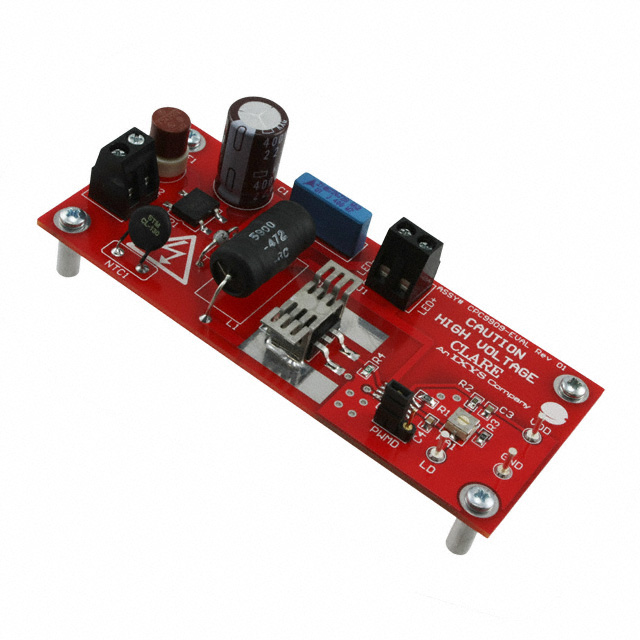

EVAL BOARD FOR CPC9909

Part	Supplied Contents	Voltage - Input (AC) Minimum	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Voltage - Input (AC) Maximum	Current - Output / Channel	Total Output Count	Output Type	Non-Isolated Output Count	Features	Contents	Utilized IC / Part	Internal Switch(s)	Dimming	Applications	Number of Outputs	Frequency (Min)	Frequency (Max)	Topology	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Min)	Package Name	Package Length	Package Features	Package Width	Mounting Type	Type	Voltage - Supply (Max)
LITTELFUSE CPC9909-EVAL	Board(s)	90 V	15 V	375 V	265 VAC	350 mA	1	Non-Isolated	1 count	Dimmable	Board	CPC9909
LITTELFUSE CPC9909NE													No	PWM	Signage	1	30 kHz	120 kHz	Step-Down (Buck) Step-Up (Boost)	85 °C	-40 °C	8 V	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	Surface Mount	AC DC Offline Switcher	550 V
LITTELFUSE CPC9909N													No	PWM	Signage	1	30 kHz	120 kHz	Step-Down (Buck) Step-Up (Boost)	85 °C	-40 °C	8 V	8-SOIC	0.154 in		3.9 mm	Surface Mount	AC DC Offline Switcher	550 V
LITTELFUSE CPC9909NETR													No	PWM	Signage	1	30 kHz	120 kHz	Step-Down (Buck) Step-Up (Boost)	85 °C	-40 °C	8 V	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	Surface Mount	AC DC Offline Switcher	550 V
LITTELFUSE CPC9909N													No	PWM	Signage	1	30 kHz	120 kHz	Step-Down (Buck) Step-Up (Boost)	85 °C	-40 °C	8 V	8-SOIC	0.154 in		3.9 mm	Surface Mount	AC DC Offline Switcher	550 V
LITTELFUSE CPC9909NETR													No	PWM	Signage	1	30 kHz	120 kHz	Step-Down (Buck) Step-Up (Boost)	85 °C	-40 °C	8 V	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	Surface Mount	AC DC Offline Switcher	550 V
LITTELFUSE CPC9909NE													No	PWM	Signage	1	30 kHz	120 kHz	Step-Down (Buck) Step-Up (Boost)	85 °C	-40 °C	8 V	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	Surface Mount	AC DC Offline Switcher	550 V
LITTELFUSE CPC9909DB	Board(s)	90 V	15 V	375 V	265 VAC	350 mA	1	Non-Isolated	1 count	Dimmable	Board	CPC9909
LITTELFUSE CPC9909NTR													No	PWM	Signage	1	30 kHz	120 kHz	Step-Down (Buck) Step-Up (Boost)	85 °C	-40 °C	8 V	8-SOIC	0.154 in		3.9 mm	Surface Mount	AC DC Offline Switcher	550 V
