2287018 Series

Catalog

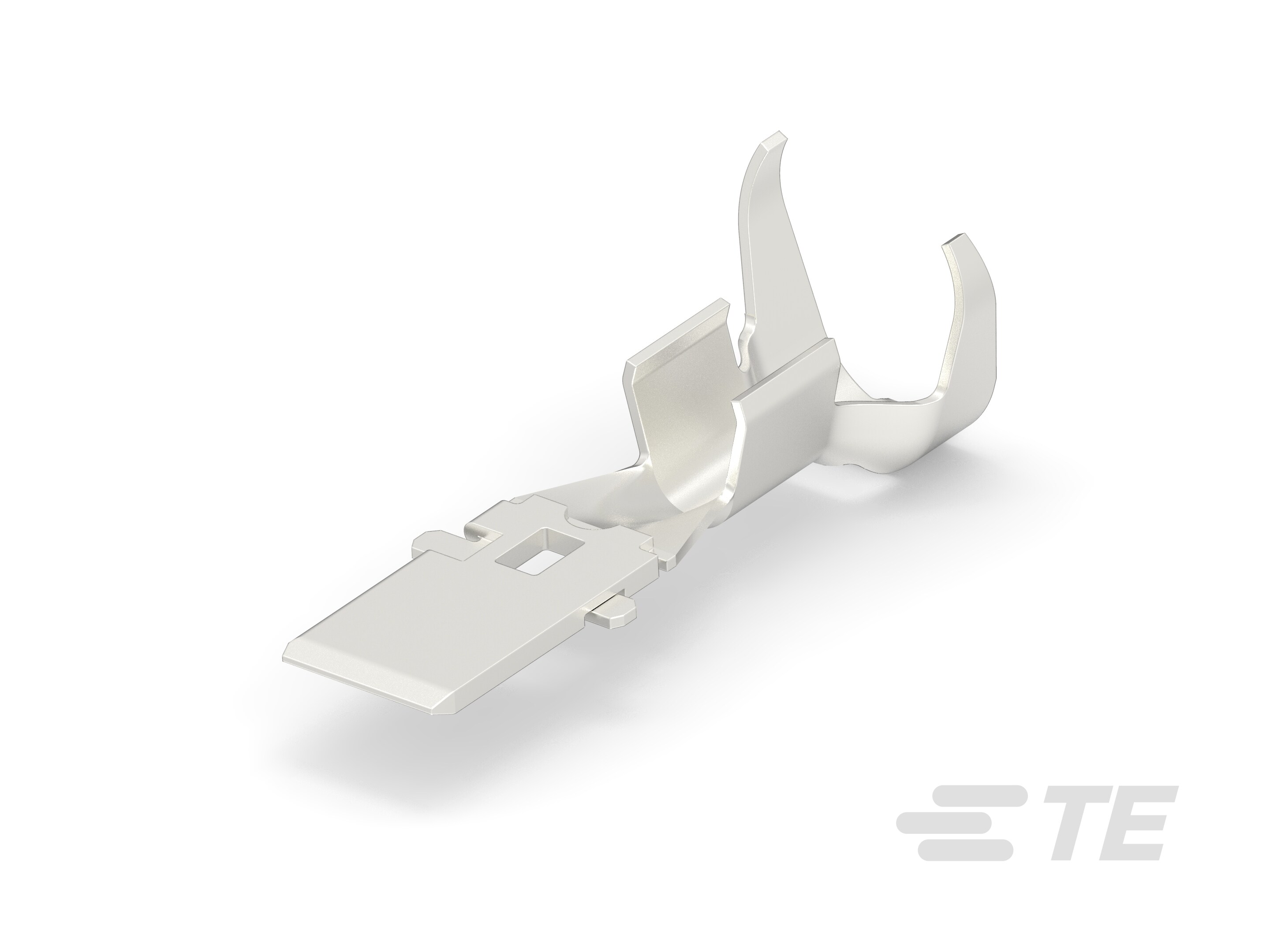

TAB 9.5X1.2,10SQMM,AG

Part	Length - Overall	Mounting Type	Terminal Type	Gender	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Termination	Insulation	Tab Thickness	Contact Material	Tab Width	Tab Length	Contact Finish
TE Connectivity AMP Connectors 2-2287018-3	1.591 in	Free Hanging (In-Line)	Standard	Male	8 AWG	10 AWG	Crimp	Non-Insulated	0.047 in	Copper	0.374 in	0.693 in	Tin
TE Connectivity AMP Connectors 2-2287018-1	1.591 in	Free Hanging (In-Line)	Standard	Male	8 AWG	10 AWG	Crimp	Non-Insulated	0.047 in	Copper	0.374 in	0.693 in	Tin
TE Connectivity AMP Connectors 1-2287018-1	1.551 in	Free Hanging (In-Line)	Standard	Male	4 AWG	6 AWG	Crimp	Non-Insulated	0.047 in	Copper	0.374 in	0.693 in	Tin
