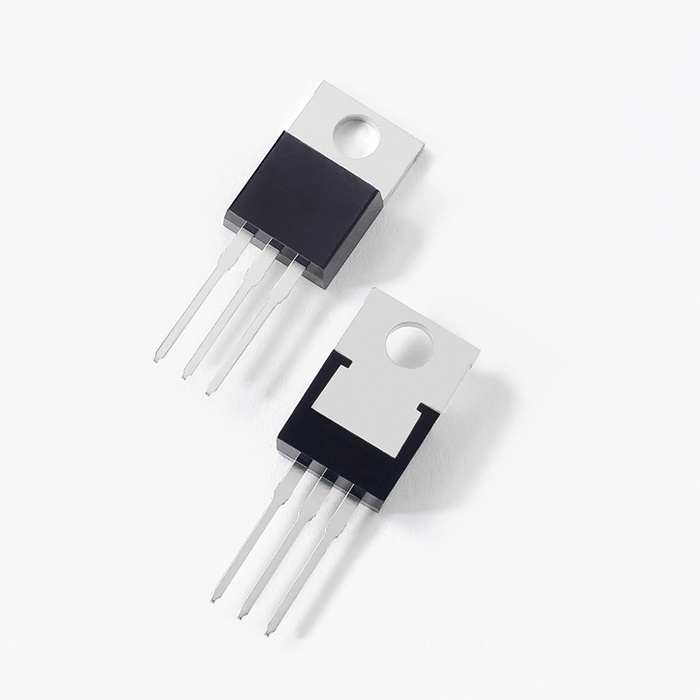

DUR2030CT Series

300V 20A Ultrafast Rectifier DUR series

Catalog

300V 20A Ultrafast Rectifier DUR series

Part	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Technology	Diode Pair Count	Diode Configuration	Mounting Type	Voltage - Forward (Vf) (Max)	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Reverse Recovery Time (trr)	Package Name	Package / Case	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage
LITTELFUSE DUR2030CT	150 °C	-55 °C	Standard	1 pair	Common Cathode	Through Hole	1.3 V	500 ns	200 mA	45 ns	TO-220AB	TO-220-3	300 V	10 A	30 µA

Catalog

300V 20A Ultrafast Rectifier DUR series

Description

Littelfuse DUR2030CT series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, low-leakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
