ISL55016 Series

MMIC Silicon Bipolar Differential Amplifier

Manufacturer: Renesas Electronics Corporation

Catalog

MMIC Silicon Bipolar Differential Amplifier

Part	Frequency (Min)	Frequency (Max)	Current - Supply	Gain	Package / Case	Noise Figure	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Length	Package Name	Package Width	Mounting Type	RF Type
Renesas Electronics Corporation ISL55016IRTZ-T7	0 Hz	2 GHz	104 mA	17.5 dB	6-WFDFN Exposed Pad	5.4 dB	5.5 V	4.5 V	1.6 mm	6-TDFN	1.6 mm	Surface Mount	Bluetooth

Catalog

MMIC Silicon Bipolar Differential Amplifier

Description

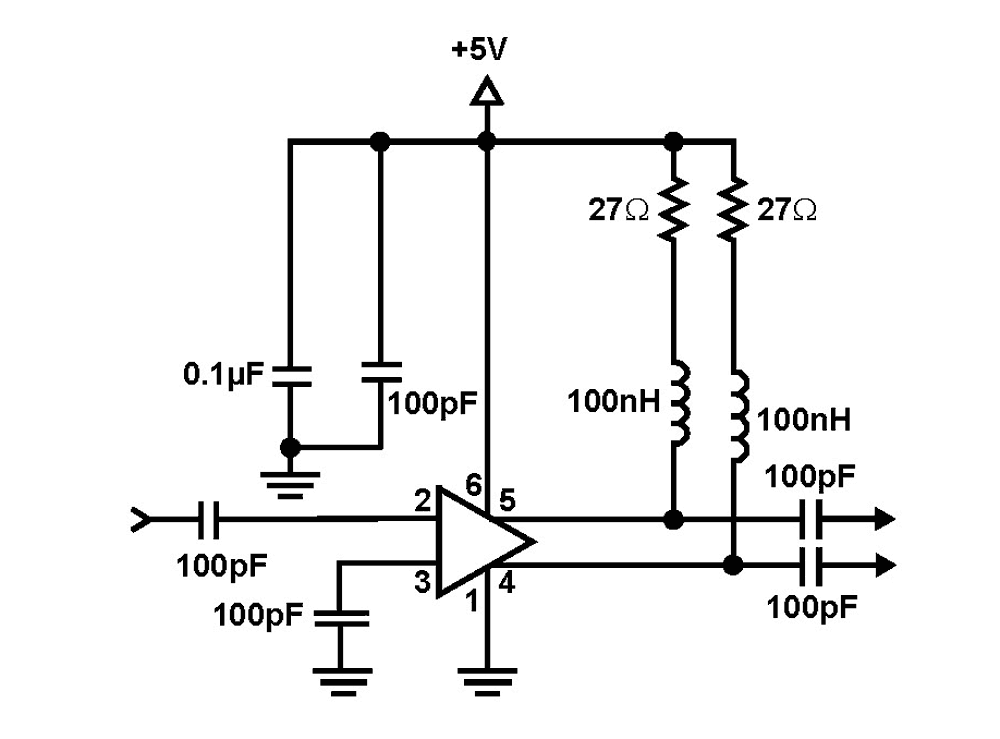

The ISL55016 is a high performance gain block which can match a 75Ω single-ended source to a 100Ω differential load. This feature makes the ISL55016 ideal for a wide range of general-purpose applications such as Satellite TV. The ISL55016 can be used as single-ended to differential converter and eliminates the need for an external balun structure.
