2842165 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

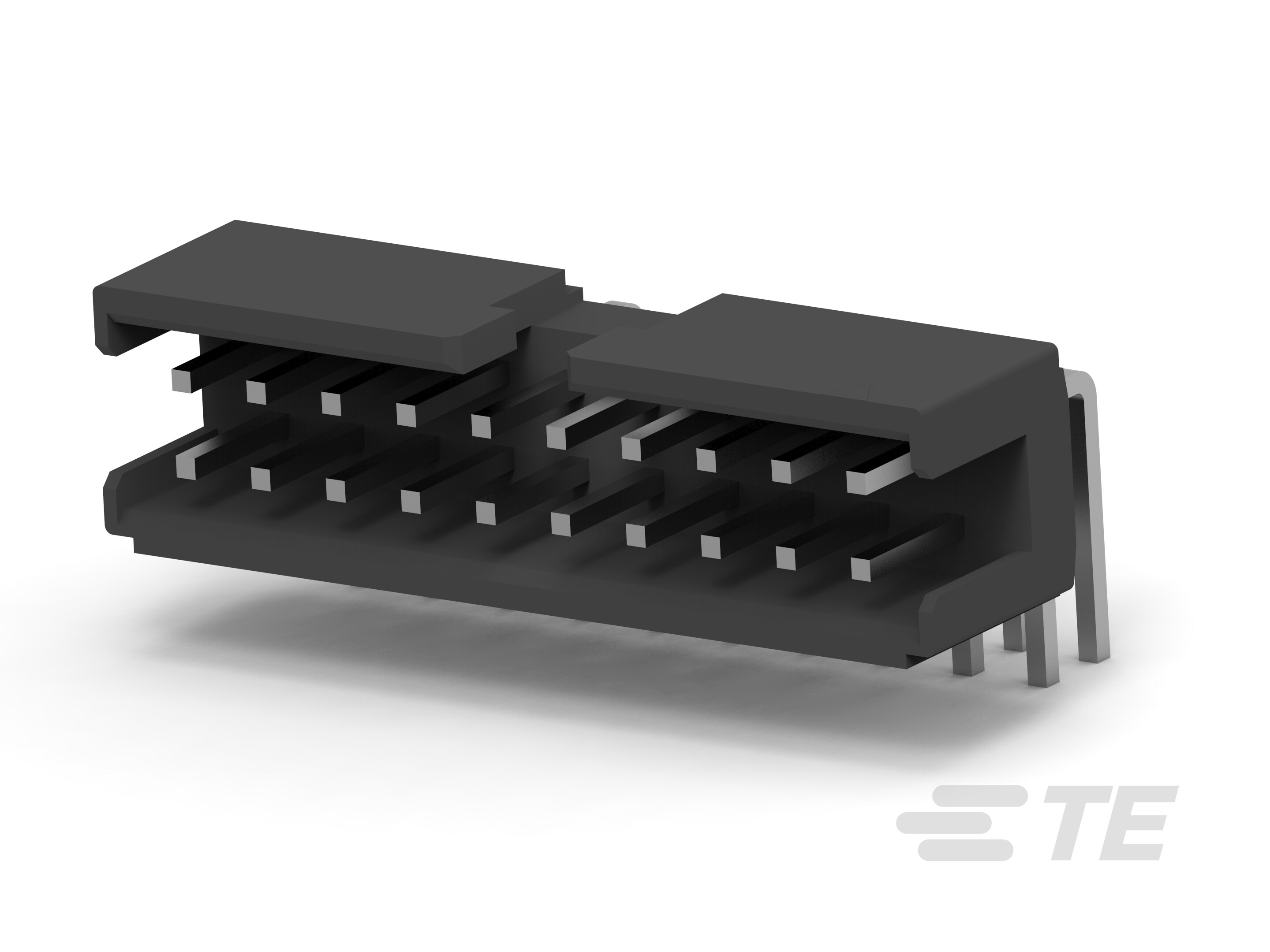

22P,2MM,SHRD HDR,DRRT,SN,TB

Part	Insulation Material	Number of Positions	Insulation Height	Contact Type	Material Flammability Rating	Row Spacing - Mating	Connector Type	Current Rating	Number of Positions Loaded	Fastening Type	Voltage Rating	Voltage Rating (Type)	Pitch - Mating	Contact Material	Shrouding	Number of Rows	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Shape	Style	Insulation Color	Termination	Contact Length - Post	Contact Finish - Post	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Mating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2-2842165-2	Thermoplastic	22	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 3-2842165-2	Thermoplastic	32	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 5-2842165-0	Thermoplastic	50	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 2842165-6	Thermoplastic	6	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 3-2842165-6	Thermoplastic	36	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 4-2842165-0	Thermoplastic	40	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 4-2842165-2	Thermoplastic	42	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 4-2842165-8	Thermoplastic	48	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 2-2842165-0	Thermoplastic	20	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
TE Connectivity AMP Connectors 1-2842165-0	Thermoplastic	10	0.24 in	Male Pin	UL94 V-0	0.079 in	Header	2 A	All	Detent Lock	125 V	DC	0.079 in	Copper Alloy	Shrouded - 2 Wall	2	78.7 Ąin	Tin	Square	Board Board or Cable	Black	Solder	0.098 in	Tin	Right Angle Through Hole	-40 °C	105 °C	0.146 in	78.7 µin
