2317212 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

6P,2MM,REC,IDC,LATCH,26-30,STRIP

Part	Contact Type	Mounting Type	Contact Finish	Contact Finish Thickness	Color	Number of Rows	Number of Positions	Connector Type	Cable Termination	Wire Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Fastening Type	Pitch
TE Connectivity AMP Connectors 2317212-6	Female Socket	Free Hanging (In-Line)	Tin	50 µin	Black	1	6	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in
TE Connectivity AMP Connectors 1-2317212-1	Female Socket	Free Hanging (In-Line)	Tin	50 µin	Black	1	11	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in
TE Connectivity AMP Connectors 2317212-5	Female Socket	Free Hanging (In-Line)	Tin	50 µin	Black	1	5	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in

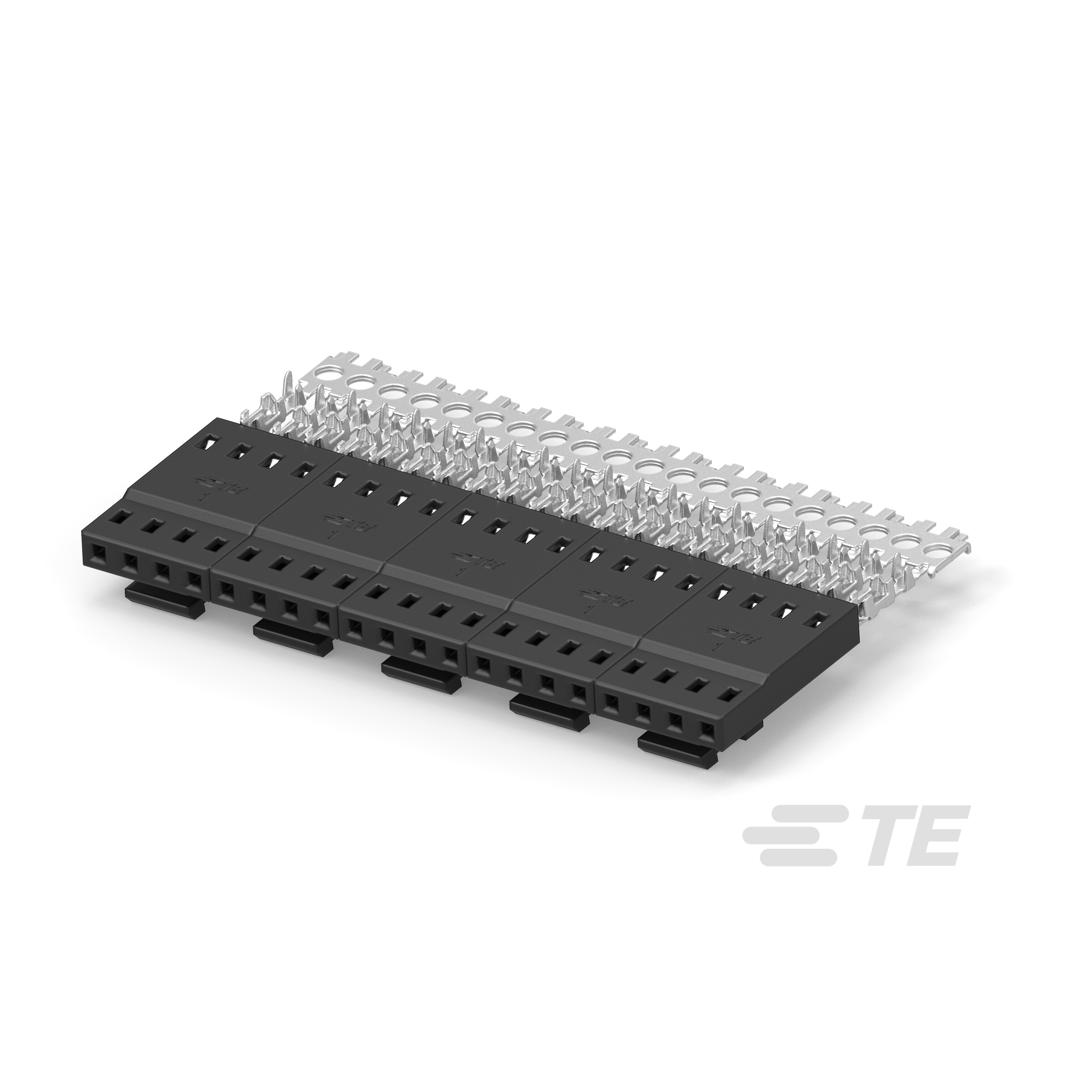

TE Connectivity AMP Connectors 2317212-4	Female Socket	Free Hanging (In-Line)	Tin	50 µin	Black	1	4	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in
TE Connectivity AMP Connectors 1-2317212-2	Female Socket	Free Hanging (In-Line)	Tin	50 µin	Black	1	12	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in
TE Connectivity AMP Connectors 2317212-8	Female Socket	Free Hanging (In-Line)	Tin	50 µin	Black	1	8	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in
TE Connectivity AMP Connectors 2317212-9	Female Socket	Free Hanging (In-Line)	Tin	50 µin	Black	1	9	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in
TE Connectivity AMP Connectors 2317212-3	Female Socket	Free Hanging (In-Line)	Gold	30 µin	Black	1	3	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in
TE Connectivity AMP Connectors 2317212-7	Female Socket	Free Hanging (In-Line)	Tin	50 µin	Black	1	7	Receptacle	IDC	Discrete Ribbon Cable	26 AWG	30 AWG	Latch Lock	0.079 in
