532428 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT HD 20POS PCB

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Termination	Number of Rows	Mounting Type	Contact Finish Thickness	Pitch	Color	Contact Finish	Connector Style	Connector Type	Current Rating	Features
TE Connectivity AMP Connectors 532428-1	125 °C	-65 °C	UL94 V-0	All	20	Solder	2	Right Angle Through Hole	30 µin	0.1 in	Natural	Gold	High Density (HDC HDI HPC)	Female Sockets Receptacle
TE Connectivity AMP Connectors 1-532428-0	125 °C	-65 °C	UL94 V-0	All	110	Solder	2	Right Angle Through Hole	30 µin	0.1 in	Black	Gold	High Density (HDC HDI HPC)	Female Sockets Receptacle	3 A	Mating Guide

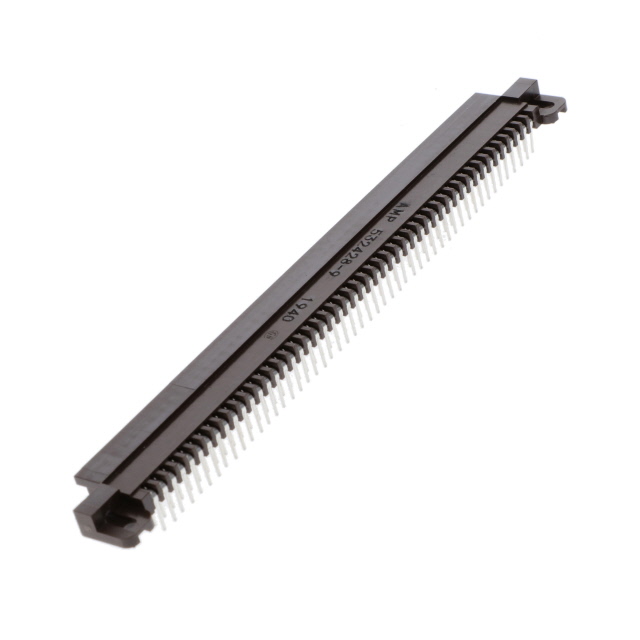

TE Connectivity AMP Connectors 532428-9	125 °C	-65 °C	UL94 V-0	All	100	Solder	2	Right Angle Through Hole	30 µin	0.1 in	Natural	Gold	High Density (HDC HDI HPC)	Female Sockets Receptacle		Mating Guide
TE Connectivity AMP Connectors 1-532428-5	125 °C	-65 °C	UL94 V-0	All	200	Solder	2	Right Angle Through Hole	30 µin	0.1 in	Natural	Gold	High Density (HDC HDI HPC)	Female Sockets Receptacle	3 A	Mating Guide
TE Connectivity AMP Connectors 1-532428-1	125 °C	-65 °C	UL94 V-0	All	120	Solder	2	Right Angle Through Hole	30 µin	0.1 in	Natural	Gold	High Density (HDC HDI HPC)	Female Sockets Receptacle	3 A	Mating Guide

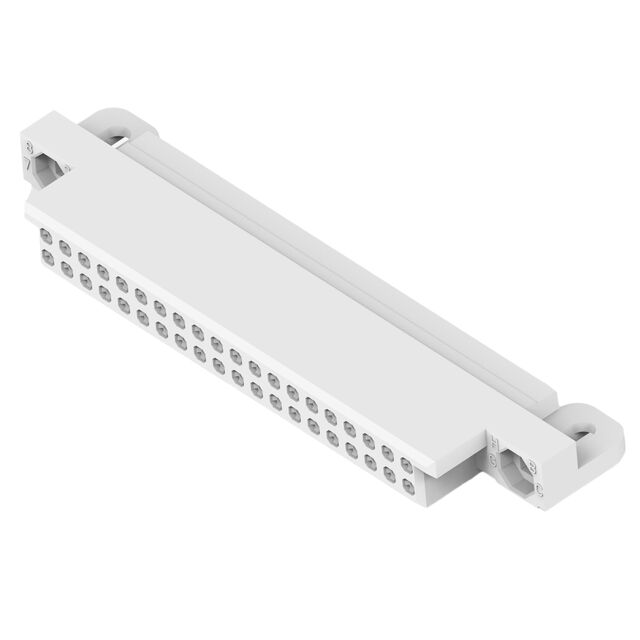

TE Connectivity AMP Connectors 532428-3	125 °C	-65 °C	UL94 V-0	All	40	Solder	2	Right Angle Through Hole	30 µin	0.1 in	Natural	Gold	High Density (HDC HDI HPC)	Female Sockets Receptacle
TE Connectivity AMP Connectors 1-532428-8	125 °C	-65 °C	UL94 V-0	All	180	Solder	2	Right Angle Through Hole	30 µin	0.1 in	Natural	Gold	High Density (HDC HDI HPC)	Female Sockets Receptacle	3 A	Mating Guide
TE Connectivity AMP Connectors 1-532428-3	125 °C	-65 °C	UL94 V-0	All	140	Solder	2	Right Angle Through Hole	30 µin	0.1 in	Natural	Gold	High Density (HDC HDI HPC)	Female Sockets Receptacle	3 A	Mating Guide
