2842116 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

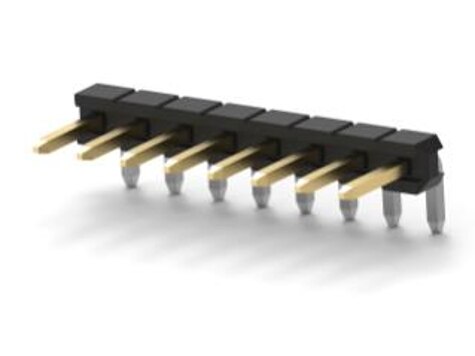

BOARD TO BOARD & MEZZANINE CONNECTORS 10P,2MM,BRK HDR,SRRT,2.8,0.76AU,TB W/CAP
| Part | Number of Rows | Contact Type | Features | Current Rating | Style | Fastening Type | Shrouding | Mounting Type | Number of Positions Loaded | Contact Finish - Mating | Contact Length - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Length - Post | Contact Material | Pitch - Mating | Termination | Insulation Color | Voltage Rating | Voltage Rating (Type) | Insulation Material | Material Flammability Rating | Contact Shape | Connector Type | Insulation Height | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | Male Pin | Pick and Place | 2 A | Board | Push-Pull | Unshrouded | Right Angle Through Hole | All | Gold | 0.157 in | 30 µin | Tin | 0.11 in | Copper Alloy | 0.079 in | Solder | Black | 125 V | DC | Thermoplastic | UL94 V-0 | Square | Breakaway Header | 0.059 in | 10 | 125 °C | -40 °C | 78.7 µin |
 TE Connectivity AMP Connectors | 1 | Male Pin | Pick and Place | 2 A | Board | Push-Pull | Unshrouded | Right Angle Through Hole | All | Gold | 0.157 in | 30 µin | Tin | 0.11 in | Copper Alloy | 0.079 in | Solder | Black | 125 V | DC | Thermoplastic | UL94 V-0 | Square | Breakaway Header | 0.059 in | 6 | 125 °C | -40 °C | 78.7 µin |
TE Connectivity AMP Connectors | 1 | Male Pin | Pick and Place | 2 A | Board | Push-Pull | Unshrouded | Right Angle Through Hole | All | Gold | 0.157 in | 30 µin | Tin | 0.11 in | Copper Alloy | 0.079 in | Solder | Black | 125 V | DC | Thermoplastic | UL94 V-0 | Square | Breakaway Header | 0.059 in | 5 | 125 °C | -40 °C | 78.7 µin |
 TE Connectivity AMP Connectors | 1 | Male Pin | Pick and Place | 2 A | Board | Push-Pull | Unshrouded | Right Angle Through Hole | All | Gold | 0.157 in | 30 µin | Tin | 0.11 in | Copper Alloy | 0.079 in | Solder | Black | 125 V | DC | Thermoplastic | UL94 V-0 | Square | Breakaway Header | 0.059 in | 8 | 125 °C | -40 °C | 78.7 µin |
 TE Connectivity AMP Connectors | 1 | Male Pin | Pick and Place | 2 A | Board | Push-Pull | Unshrouded | Right Angle Through Hole | All | Gold | 0.157 in | 30 µin | Tin | 0.11 in | Copper Alloy | 0.079 in | Solder | Black | 125 V | DC | Thermoplastic | UL94 V-0 | Square | Breakaway Header | 0.059 in | 4 | 125 °C | -40 °C | 78.7 µin |
