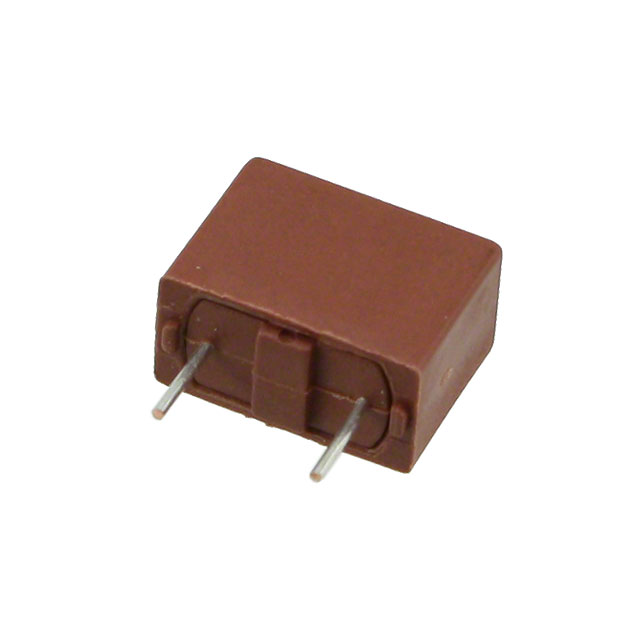

FUSE 250V TT L TE7 UMF SL SPECIAL 4A
Description
AI
The 804 Series is a TE UMF, TT time lag type subminiature fuse designed for overcurrent protection. It is 250V rated and designed in accordance to IEC 60127-4.
Beta
⌘K
FUSE 250V TT L TE7 UMF SL SPECIAL 4A
FUSE 250V TT L TE7 UMF SL SPECIAL 4A
| Part | DC Cold Resistance | Response Time | Fuse Type | Mounting Type | Breaking Capacity | Approval Agency | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Melting I²t | Package / Case | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.0174 Ohms | Slow Blow | Board Mount (Cartridge Style Excluded) | Through Hole | 150 A | CQC KC PSE UL VDE | 4 A | 125 °C | -40 °C | 0.488 in | 0.252 in | 0.362 in | 346 | Box Radial | 250 V |
