284509 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 3POS STR 3.81MM

Part	Positions Per Level	Current - UL	Number of Positions	Color	Operating Temperature (Min)	Operating Temperature (Max)	Plug Wire Entry Angle	Voltage - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Termination Style	Contact Mating Finish	Number of Levels	Features	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Type	Pitch	Mounting Type	Housing Material	Contact Material	Material Flammability Rating	Insulation Height	Wire Strip Length (Min)	Wire Strip Length (Max)	Screw Size	Torque - Screw

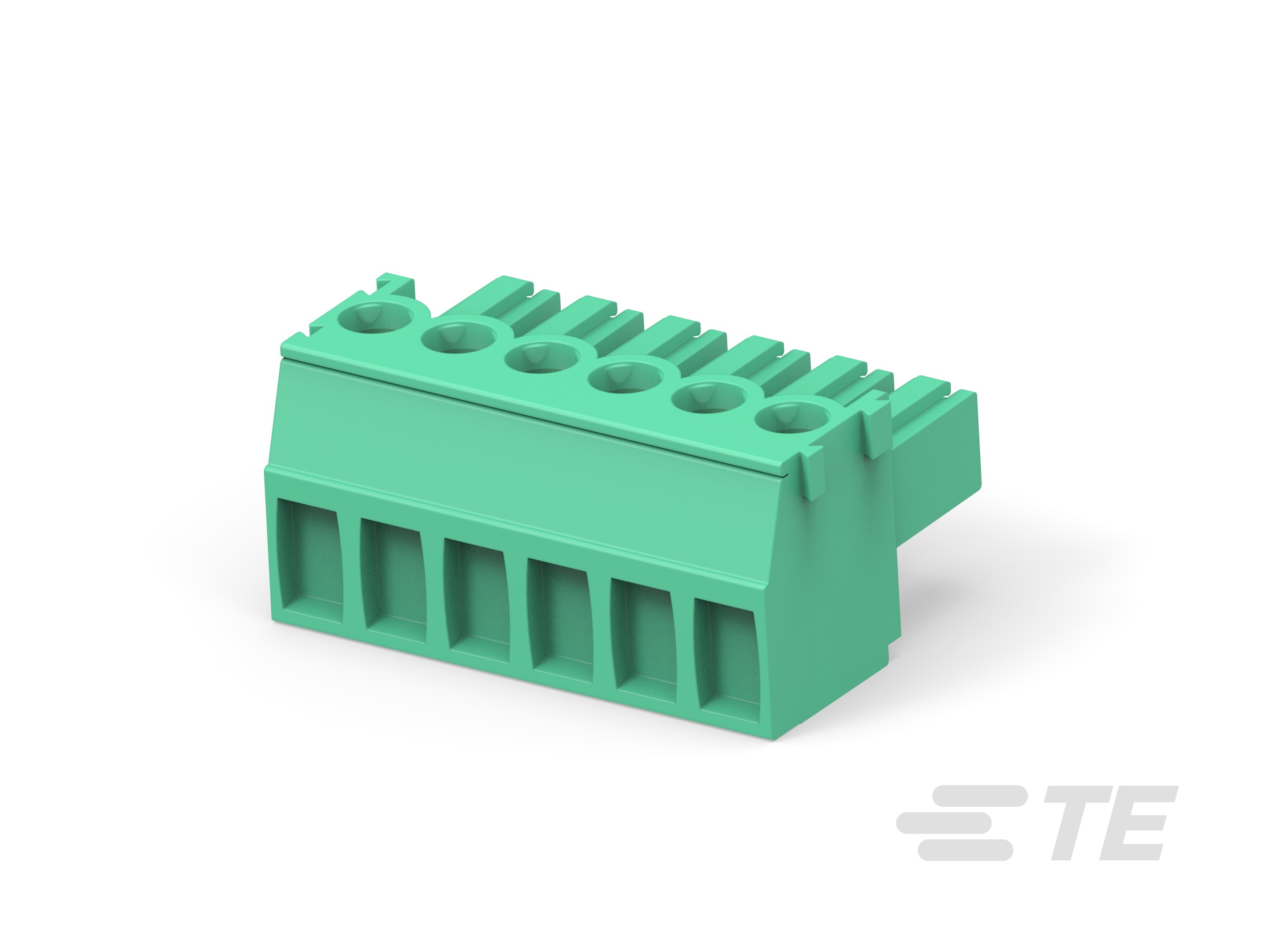

TE Connectivity AMP Connectors 284509-3	3	12 A	3	Green	-40 °C	110 °C	180 °	150 V	30 AWG	14 AWG	Screw - Rising Cage Clamp	Tin	1	Interlocking (Side)	0.05 mm²	2 mm²	Female Sockets Plug	0.15 in	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.437 in	5 mm	6 mm	M2	0.25 Nm
TE Connectivity AMP Connectors 284509-6	6	12 A	6	Green	-40 °C	110 °C	180 °	150 V	30 AWG	14 AWG	Screw - Rising Cage Clamp	Tin	1	Interlocking (Side)	0.05 mm²	2 mm²	Female Sockets Plug	0.15 in	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.437 in	5 mm	6 mm	M2	0.25 Nm
TE Connectivity AMP Connectors 1-284509-2	12	12 A	12	Green	-40 °C	110 °C	180 °	150 V	30 AWG	14 AWG	Screw - Rising Cage Clamp	Tin	1	Interlocking (Side)	0.05 mm²	2 mm²	Female Sockets Plug	0.15 in	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.437 in	5 mm	6 mm	M2	0.25 Nm

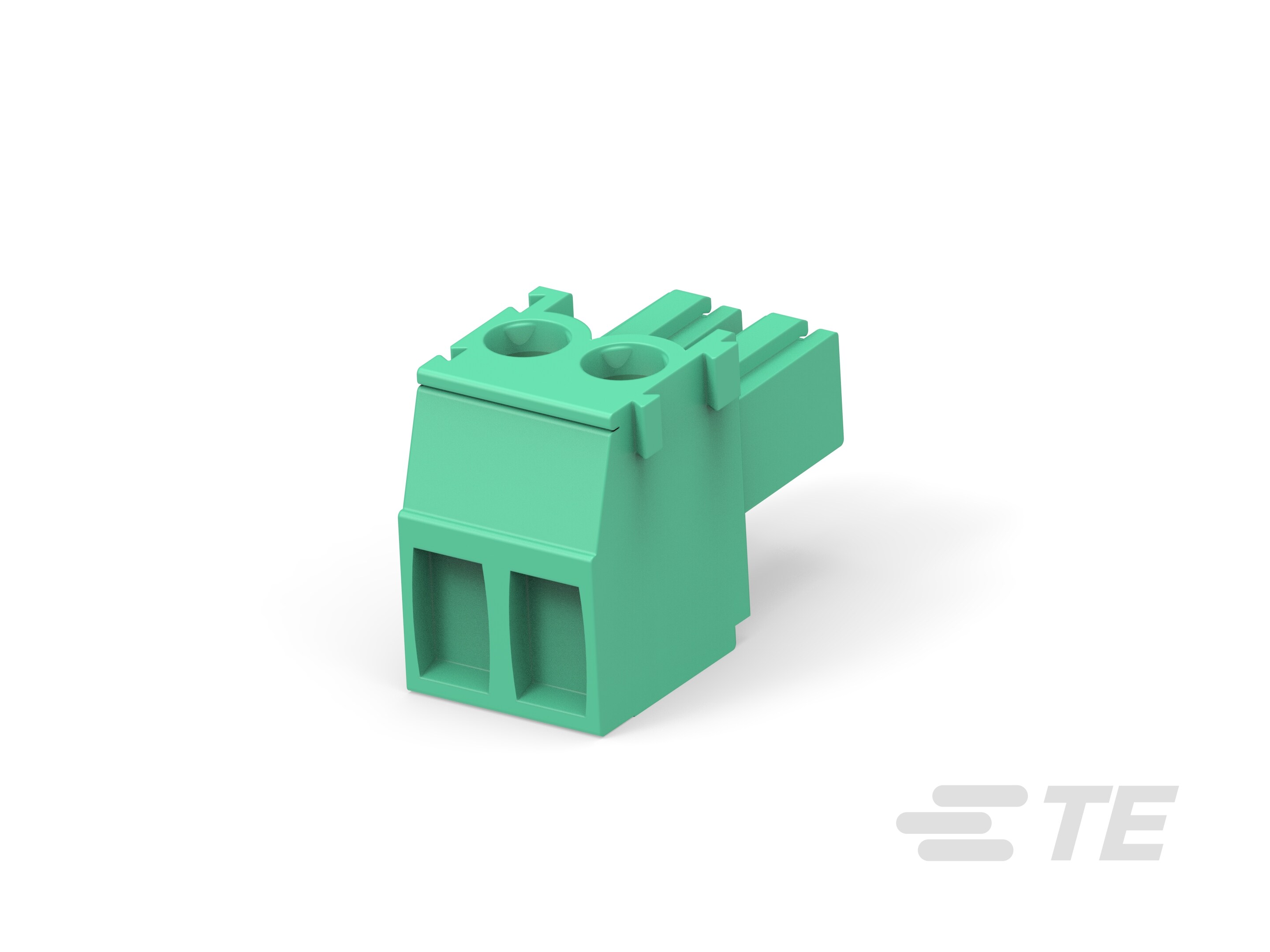

TE Connectivity AMP Connectors 284509-2	2	12 A	2	Green	-40 °C	110 °C	180 °	150 V	30 AWG	14 AWG	Screw - Rising Cage Clamp	Tin	1	Interlocking (Side)	0.05 mm²	2 mm²	Female Sockets Plug	0.15 in	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.437 in	5 mm	6 mm	M2	0.25 Nm
TE Connectivity AMP Connectors 284509-5	5	12 A	5	Green	-40 °C	110 °C	180 °	150 V	30 AWG	14 AWG	Screw - Rising Cage Clamp	Tin	1	Interlocking (Side)	0.05 mm²	2 mm²	Female Sockets Plug	0.15 in	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.437 in	5 mm	6 mm	M2	0.25 Nm

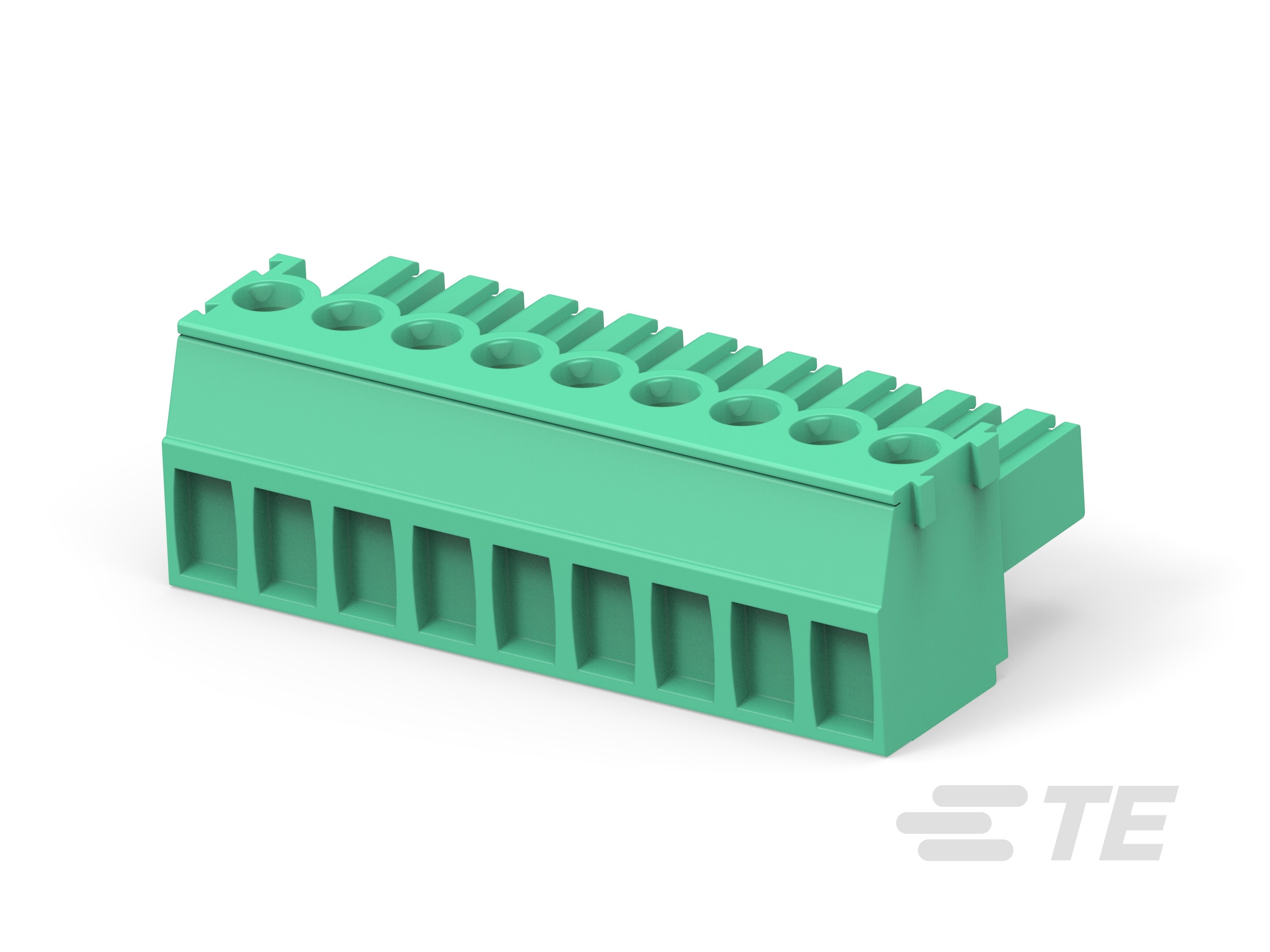

TE Connectivity AMP Connectors 284509-9	9	12 A	9	Green	-40 °C	110 °C	180 °	150 V	30 AWG	14 AWG	Screw - Rising Cage Clamp	Tin	1	Interlocking (Side)	0.05 mm²	2 mm²	Female Sockets Plug	0.15 in	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.437 in	5 mm	6 mm	M2	0.25 Nm
TE Connectivity AMP Connectors 284509-8	8	12 A	8	Green	-40 °C	110 °C	180 °	150 V	30 AWG	14 AWG	Screw - Rising Cage Clamp	Tin	1	Interlocking (Side)	0.05 mm²	2 mm²	Female Sockets Plug	0.15 in	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0	0.437 in	5 mm	6 mm	M2	0.25 Nm
