828548 Series

Catalog

CONN HEADER VERT 5POS 2.54MM

Part	Contact Finish - Mating	Fastening Type	Mounting Type	Contact Length - Post	Termination	Pitch - Mating	Insulation Material	Insulation Color	Number of Positions Loaded	Contact Type	Number of Positions	Contact Shape	Contact Length - Mating	Insulation Height	Material Flammability Rating	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Contact Material	Contact Finish Thickness - Post	Style
TE Connectivity AMP Connectors 828548-5	Tin	Friction Lock	Through Hole	0.114 in	Solder	0.1 in	Glass Filled Polybutylene Terephthalate (PBT)	Natural	All	Male Pin	5	Circular	0.205 in	0.346 in	UL94 V-0	Shrouded - 2 Wall	Tin	78.7 Ąin	1	Header	Copper Alloy	78.7 µin

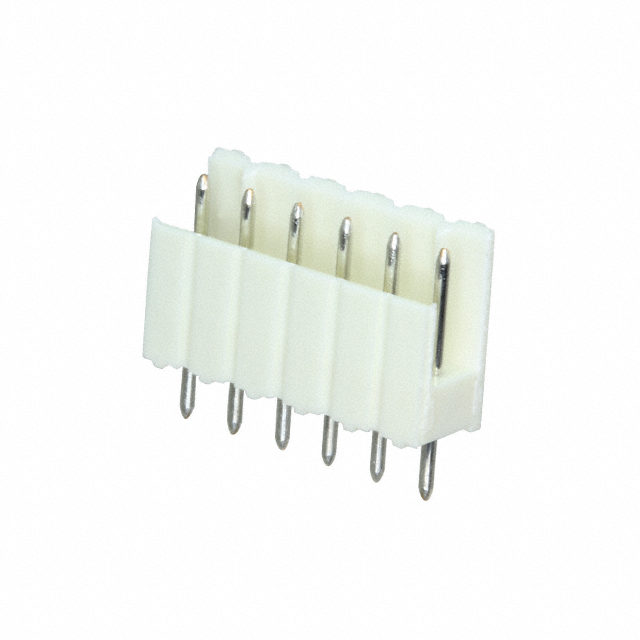

TE Connectivity AMP Connectors 828548-6	Tin	Friction Lock	Through Hole	0.114 in	Solder	0.1 in	Glass Filled Polybutylene Terephthalate (PBT)	Natural	All	Male Pin	6	Circular	0.205 in	0.346 in	UL94 V-0	Shrouded - 2 Wall	Tin	78.7 Ąin	1	Header	Copper Alloy	78.7 µin

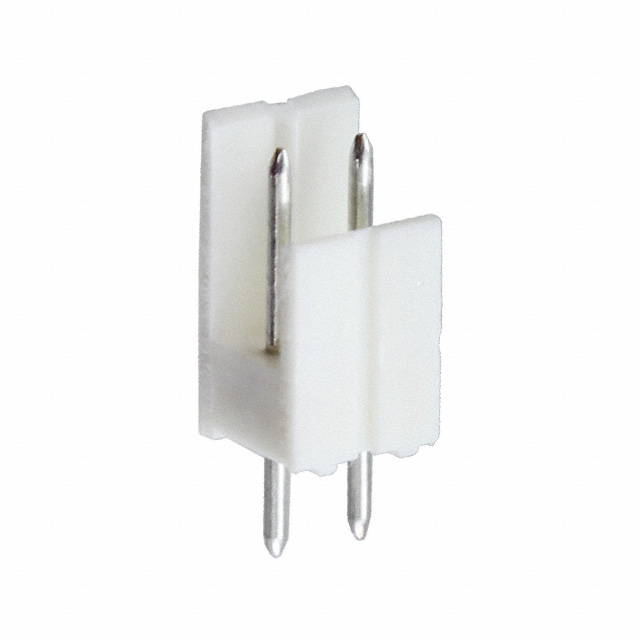

TE Connectivity AMP Connectors 828548-2	Tin	Friction Lock	Through Hole	0.114 in	Solder	0.1 in	Glass Filled Polybutylene Terephthalate (PBT)	Natural	All	Male Pin	2	Circular	0.205 in	0.346 in	UL94 V-0	Shrouded - 2 Wall	Tin	78.7 Ąin	1	Header	Copper Alloy	78.7 µin	Board
TE Connectivity AMP Connectors 1-828548-3	Tin	Friction Lock	Through Hole	0.114 in	Solder	0.1 in	Glass Filled Polybutylene Terephthalate (PBT)	Natural	All	Male Pin	13	Circular	0.205 in	0.346 in	UL94 V-0	Shrouded - 2 Wall	Tin	78.7 Ąin	1	Header	Copper Alloy	78.7 µin
