DCNLH200PD24 Series

DCNLH 200A 96V P 24Vcoil

Catalog

DCNLH 200A 96V P 24Vcoil

Part	Form A Count	Contact Form	Coil Voltage	Switching Voltage DC (Max)	Quick Connect Size (0.250")	Termination Style	Must Operate Voltage	Mounting Type	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)
LITTELFUSE DCNLH200PD24	1	SPST-NO	24 VDC	110 VDC	0.25 in	Quick Connect Screw Terminal	16.8 VDC	Chassis Mount	200 A	-40 °C	85 °C

Catalog

DCNLH 200A 96V P 24Vcoil

Description

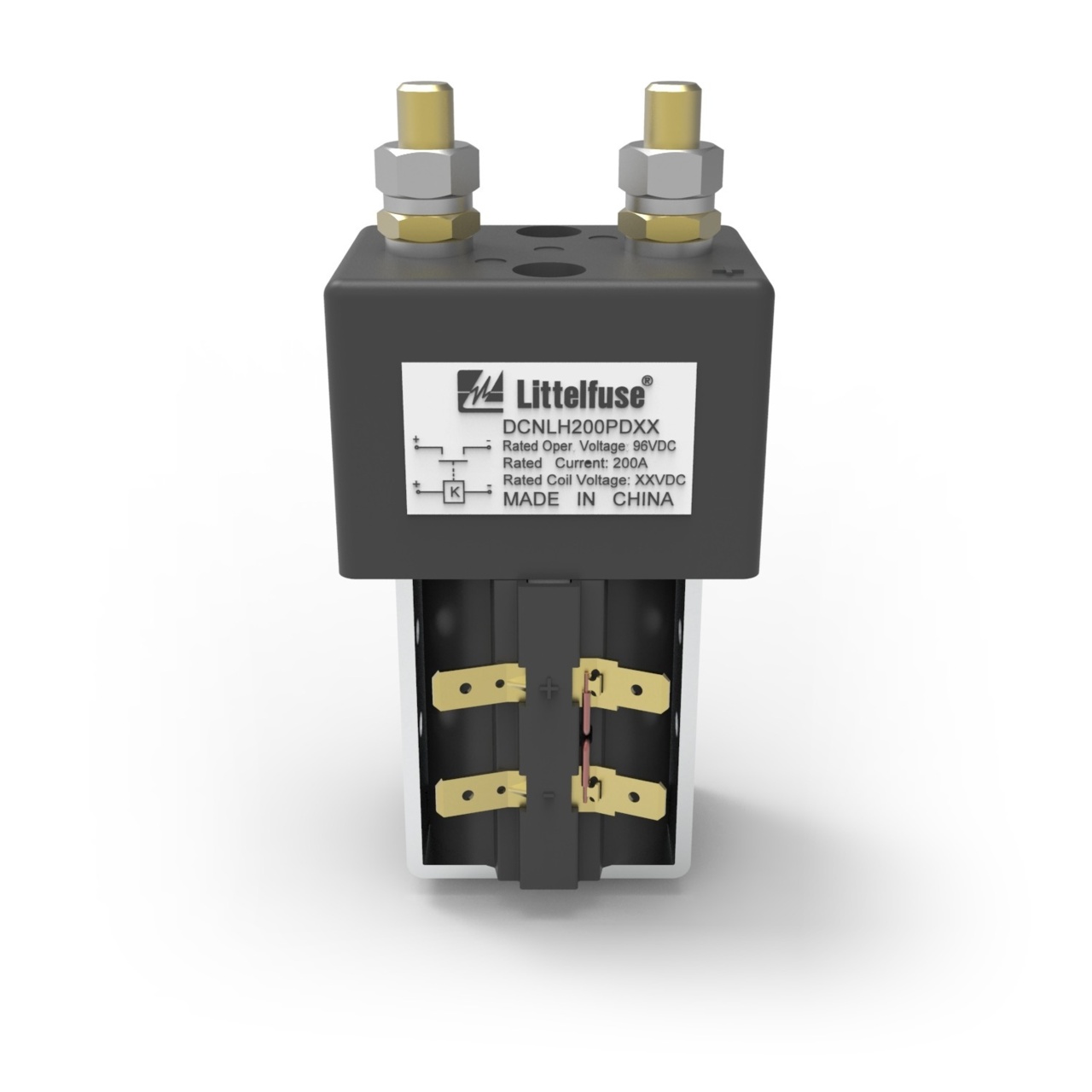

The DCNLH magnetically latching DC Contactor Relay is ideal for high-current electric control systems of communication power supplies, forklifts, uninterruptible power supplies (UPS), machinery, and more. This model of the DCNLH magnetic latching, bistable relay (DCNLH200PD24) features a 200A continuous current rating, a 24V coil, and polarized contacts rated for 96V (typical) and 110V (max).
