2842150 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

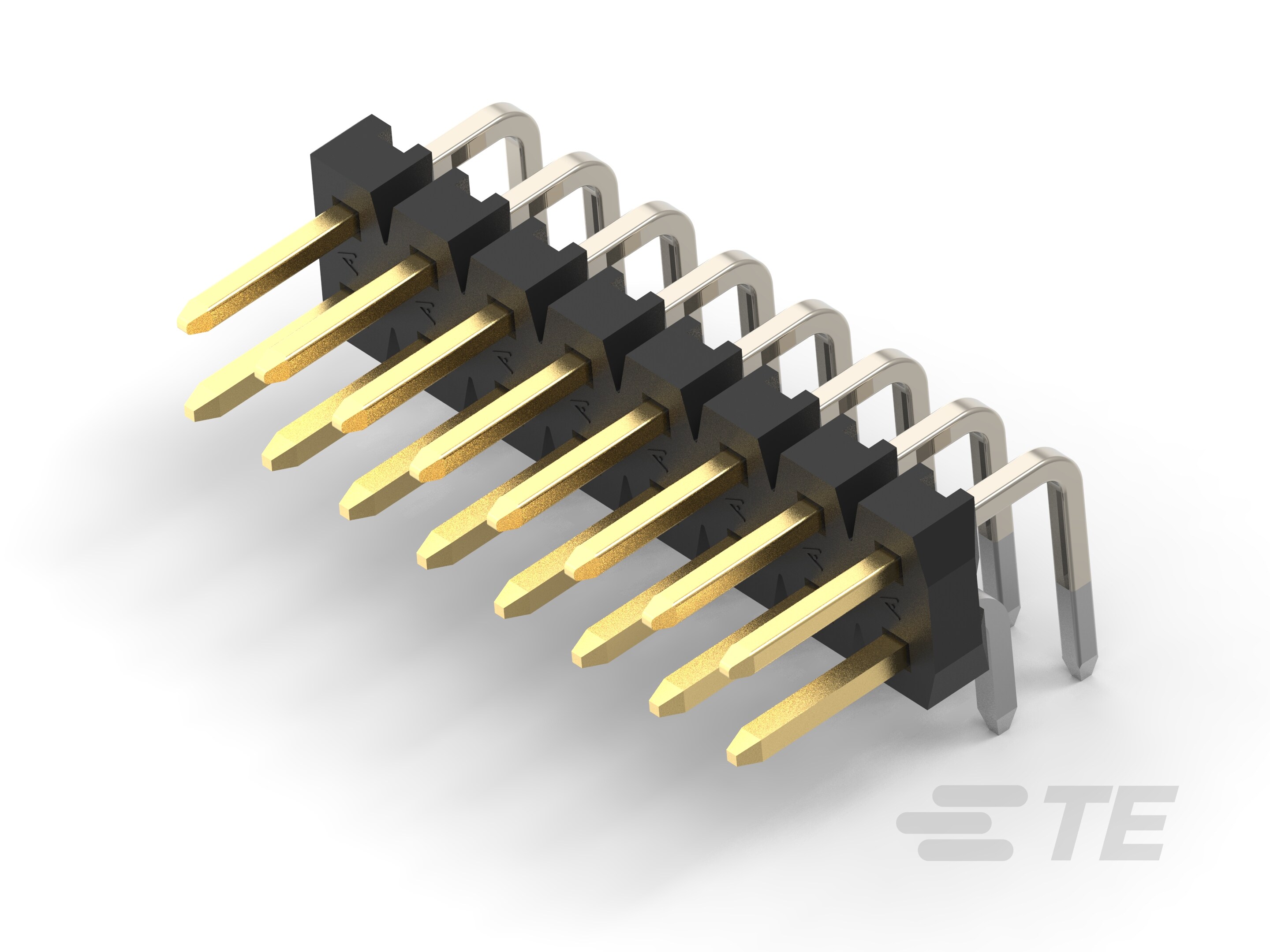

BOARD TO BOARD & MEZZANINE CONNECTORS 16P,2MM,BRK HDR,DRRT,2.8,0.1AU,TB

Part	Contact Finish - Post	Contact Type	Contact Finish Thickness - Mating	Voltage Rating	Voltage Rating (Type)	Insulation Material	Number of Positions	Row Spacing - Mating	Contact Length - Mating	Shrouding	Insulation Height	Contact Length - Post	Current Rating	Pitch - Mating	Mounting Type	Number of Positions Loaded	Insulation Color	Number of Rows	Style	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Fastening Type	Contact Finish - Mating	Termination	Contact Shape	Material Flammability Rating	Contact Material	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2842150-8	Tin	Male Pin	3.94 µin	125 V	DC	Thermoplastic	16	0.079 in	0.157 in	Unshrouded	0.059 in	0.11 in	2 A	0.079 in	Right Angle Through Hole	All	Black	2	Board	125 °C	-40 °C	Breakaway Header	Push-Pull	Gold	Solder	Square	UL94 V-0	Copper Alloy	78.7 µin
TE Connectivity AMP Connectors 2842150-6	Tin	Male Pin	3.94 µin	125 V	DC	Thermoplastic	12	0.079 in	0.157 in	Unshrouded	0.059 in	0.11 in	2 A	0.079 in	Right Angle Through Hole	All	Black	2	Board	125 °C	-40 °C	Breakaway Header	Push-Pull	Gold	Solder	Square	UL94 V-0	Copper Alloy	78.7 µin
TE Connectivity AMP Connectors 1-2842150-0	Tin	Male Pin	3.94 µin	125 V	DC	Thermoplastic	20	0.079 in	0.157 in	Unshrouded	0.059 in	0.11 in	2 A	0.079 in	Right Angle Through Hole	All	Black	2	Board	125 °C	-40 °C	Breakaway Header	Push-Pull	Gold	Solder	Square	UL94 V-0	Copper Alloy	78.7 µin
TE Connectivity AMP Connectors 2842150-4	Tin	Male Pin	3.94 µin	125 V	DC	Thermoplastic	8	0.079 in	0.157 in	Unshrouded	0.059 in	0.11 in	2 A	0.079 in	Right Angle Through Hole	All	Black	2	Board	125 °C	-40 °C	Breakaway Header	Push-Pull	Gold	Solder	Square	UL94 V-0	Copper Alloy	78.7 µin
TE Connectivity AMP Connectors 2842150-5	Tin	Male Pin	3.94 µin	125 V	DC	Thermoplastic	10	0.079 in	0.157 in	Unshrouded	0.059 in	0.11 in	2 A	0.079 in	Right Angle Through Hole	All	Black	2	Board	125 °C	-40 °C	Breakaway Header	Push-Pull	Gold	Solder	Square	UL94 V-0	Copper Alloy	78.7 µin
TE Connectivity AMP Connectors 2842150-7	Tin	Male Pin	3.94 µin	125 V	DC	Thermoplastic	14	0.079 in	0.157 in	Unshrouded	0.059 in	0.11 in	2 A	0.079 in	Right Angle Through Hole	All	Black	2	Board	125 °C	-40 °C	Breakaway Header	Push-Pull	Gold	Solder	Square	UL94 V-0	Copper Alloy	78.7 µin
