25AA010A Series

Catalog

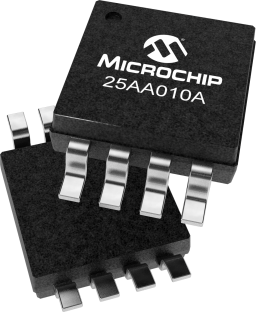

EEPROM, 1 KBIT, 128 X 8BIT, SPI, 10 MHZ, MSOP, 8 PINS

Part	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Interface (Type)	Technology	Memory Size	Memory Type	Package Name	Memory Format	Write Cycle Time - Word	Write Cycle Time - Page	Package Width	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Clock Frequency	Memory Depth	Memory Width	Package / Case
Microchip Technology 25AA010AT-I/MS	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	8-MSOP 8-TSSOP 8-MSOP	EEPROM	5 ms	5 ms	3 mm	0.118 in	85 °C	-40 °C	10 MHz	128	8 bit
Microchip Technology 25AA010A-I/MS	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	8-MSOP 8-TSSOP 8-MSOP	EEPROM	5 ms	5 ms	3 mm	0.118 in	85 °C	-40 °C	10 MHz	128	8 bit
Microchip Technology 25AA010AT-I/OT	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	SOT-23-6	EEPROM	5 ms	5 ms			85 °C	-40 °C	10 MHz	128	8 bit	SOT-23-6
Microchip Technology 25AA010A-I/P	Through Hole	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	8-DIP 8-PDIP	EEPROM	5 ms	5 ms	7.62 mm	0.3 in	85 °C	-40 °C	10 MHz	128	8 bit
Microchip Technology 25AA010AT-I/ST	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	8-TSSOP	EEPROM	5 ms	5 ms	4.4 mm	0.173 in	85 °C	-40 °C	10 MHz	128	8 bit
Microchip Technology 25AA010A/WF16K	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	Die	EEPROM	5 ms	5 ms			70 °C	0 °C	10 MHz	128	8 bit	Die
Microchip Technology 25AA010A/S16K	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	Die	EEPROM	5 ms	5 ms			70 °C	0 °C	10 MHz	128	8 bit	Die
Microchip Technology 25AA010A-I/ST	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	8-TSSOP	EEPROM	5 ms	5 ms	4.4 mm	0.173 in	85 °C	-40 °C	10 MHz	128	8 bit
Microchip Technology 25AA010A-I/SN	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	8-SOIC	EEPROM	5 ms	5 ms	3.9 mm	0.154 in	85 °C	-40 °C	10 MHz	128	8 bit
Microchip Technology 25AA010AT-I/MNY	Surface Mount	5.5 V	1.8 V	SPI	EEPROM	1 Kbit	Non-Volatile	8-TDFN	EEPROM	5 ms	5 ms	3 mm	2 mm	85 °C	-40 °C	10 MHz	128	8 bit	8-WFDFN Exposed Pad
