34122 Series

Catalog

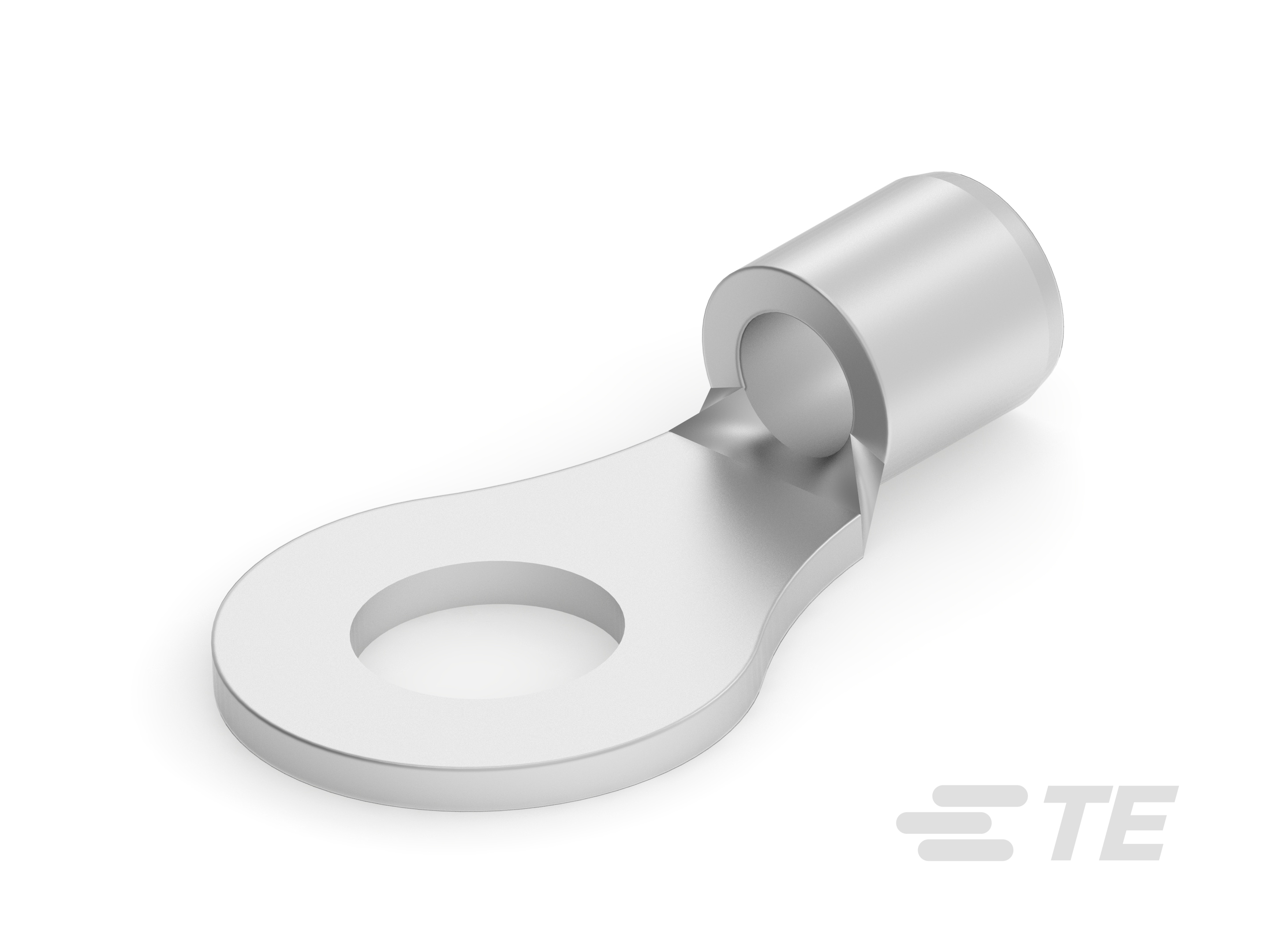

RING TONGUE TERMINAL, M4, #8, 14 AWG, 2.62 MM², SOLISTRAND SERIES

Part	Termination	Terminal Type	Width - Outer Edges	Mounting Type	Contact Material	Thickness	Features	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size	Contact Finish	Insulation
TE Connectivity AMP Connectors 2-34122-1	Crimp	Circular	0.343 in	Free Hanging (In-Line)	Copper	0.031 in	Brazed Seam Serrated Termination	0.636 in	16 AWG	14 AWG	8 Stud	Tin	Non-Insulated
TE Connectivity AMP Connectors 8-34122-1	Crimp	Circular	0.343 in	Free Hanging (In-Line)	Copper	0.031 in	Brazed Seam Serrated Termination	0.636 in	16 AWG	14 AWG	8 Stud	Tin	Non-Insulated
