2350397 Series

Catalog

PLUGGABLE TERMINAL BLOCKS 2 POS PLUG PUSH-IN 5.00MM

Part	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Number of Positions	Number of Levels	Pitch	Plug Wire Entry Angle	Features	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Mating Finish	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Type	Current - UL	Positions Per Level	Mounting Type	Voltage - UL	Color	Contact Material	Material Flammability Rating	Insulation Height	Housing Material	Wire Strip Length (Min)	Wire Strip Length (Max)

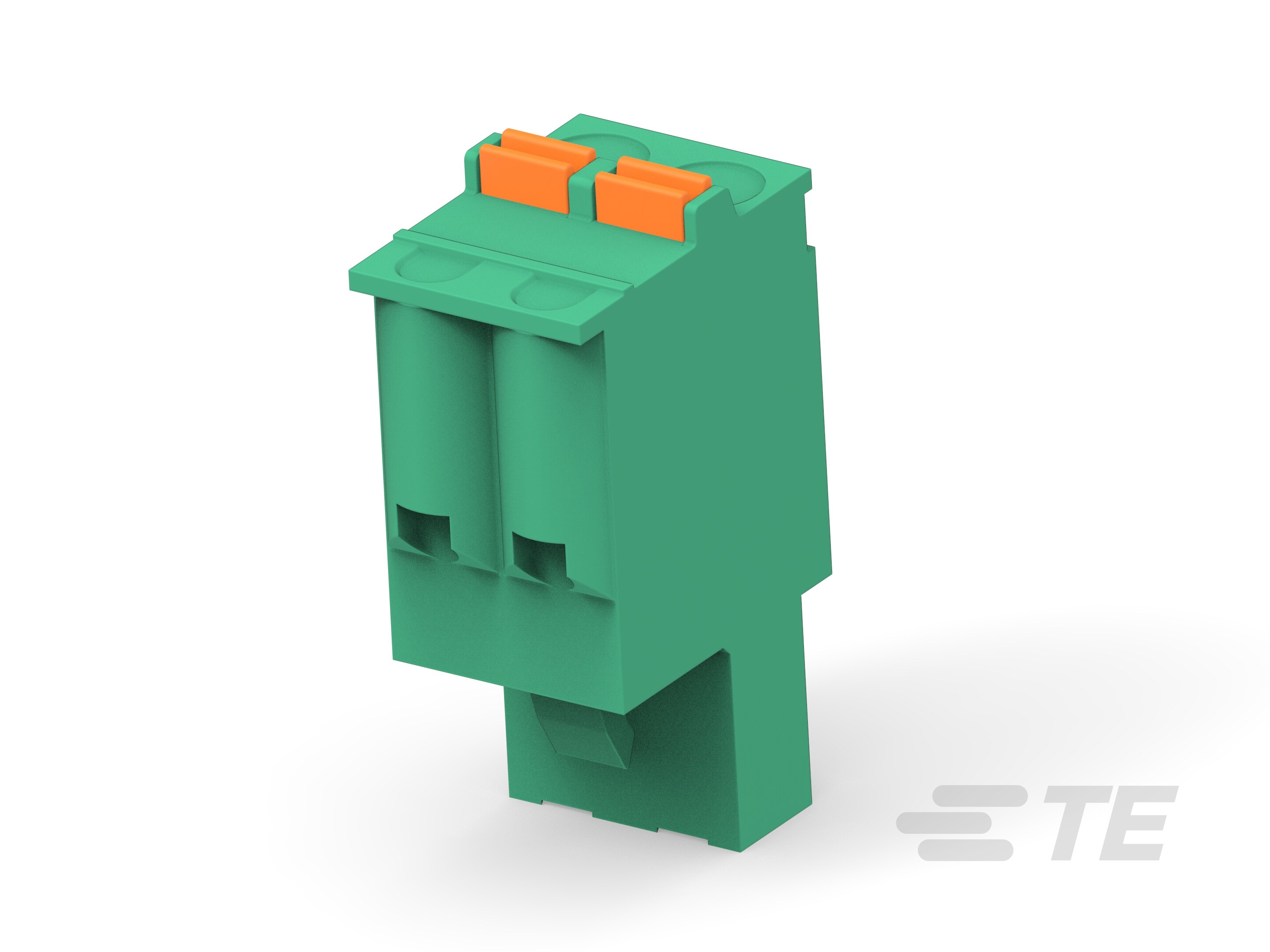

TE Connectivity AMP Connectors 2350397-2	12 AWG	25.5 AWG	2	1	0.197 in	180 °	Push Button Actuated Retention Latches (Non-Wire Side)	0.13 mm²	3.31 mm²	Tin	-40 °C	105 °C	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	16 A	2	Free Hanging (In-Line)	300 V	Green	Copper Alloy	UL94 V-0	0.591 in	Nylon 6/6 PA66 Polyamide	12 mm	13 mm

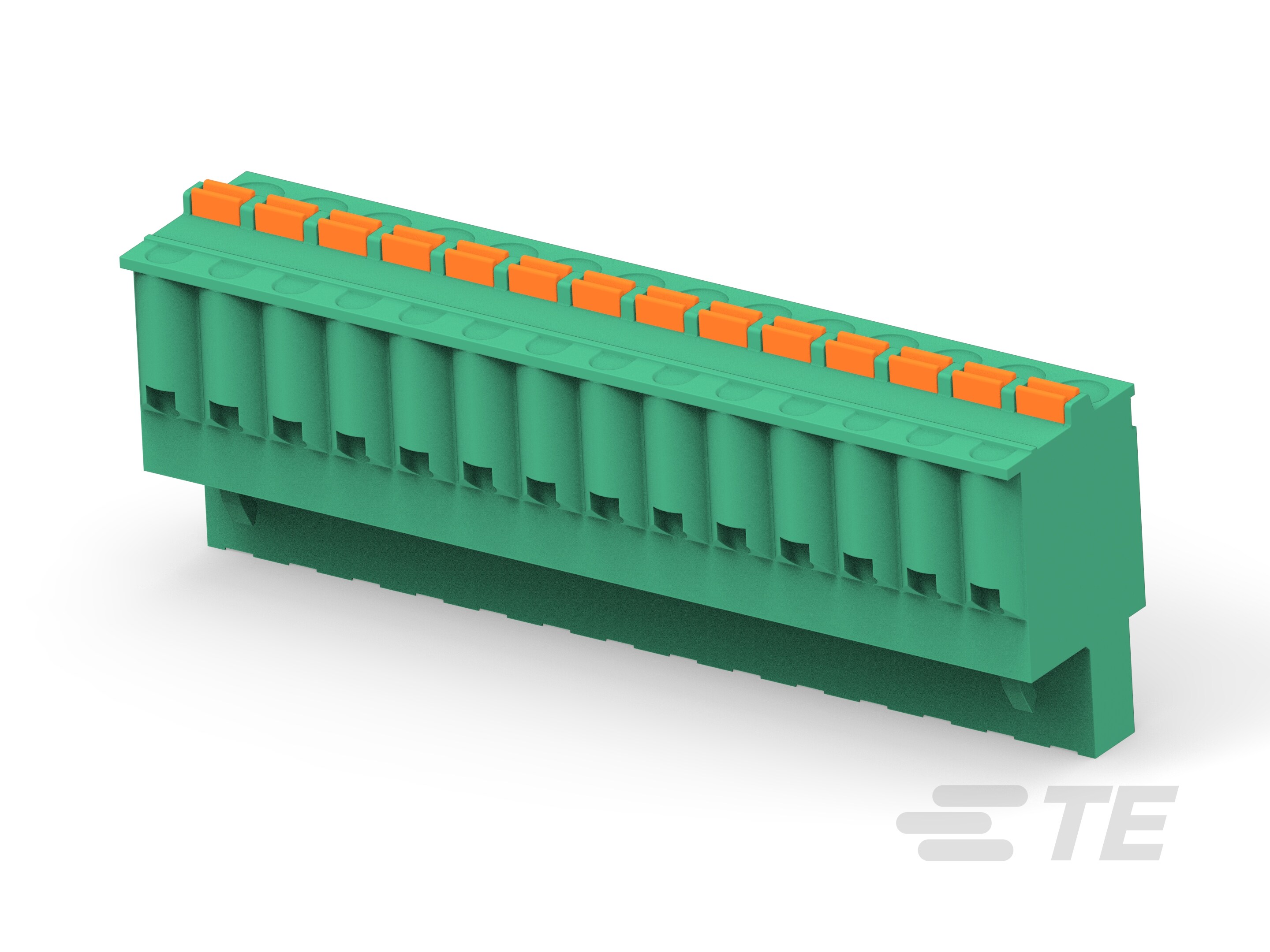

TE Connectivity AMP Connectors 1-2350397-4	12 AWG	25.5 AWG	14	1	0.197 in	180 °	Push Button Actuated Retention Latches (Non-Wire Side)	0.13 mm²	3.31 mm²	Tin	-40 °C	105 °C	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	16 A	14	Free Hanging (In-Line)	300 V	Green	Copper Alloy	UL94 V-0	0.591 in	Nylon 6/6 PA66 Polyamide	12 mm	13 mm
