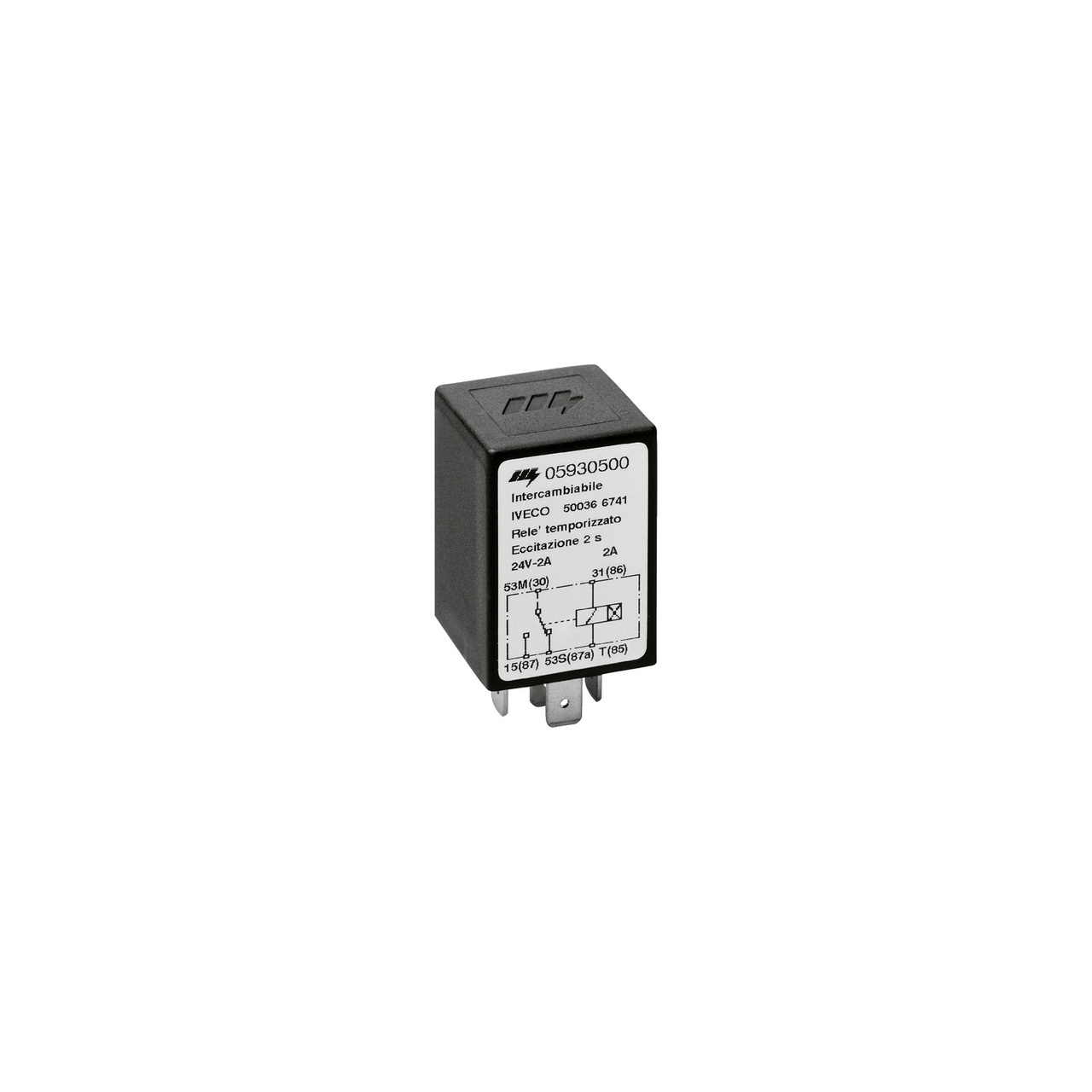

05930500 Series

Relay For Time-Delayed Energizing 2 Sec.

Catalog

Relay For Time-Delayed Energizing 2 Sec.

Part	Circuit	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)	Contact Rating (Current)	Function	Mounting Type	Relay Type	Timing Adjustment Method	Delay Time Mode	Delay Time (Fixed)	Termination Style
LITTELFUSE 05930500	SPDT (1 Form C)	24 VAC	24 VDC	24 DC	5 A	On-Delay	Panel Mount	Mechanical Relay	Fixed	Fixed	2 Sec	Plug In

Catalog

Relay For Time-Delayed Energizing 2 Sec.

Description

The 05930100 Series 32V Time Delay Relay with 24V Coil is a device with low current absorption that triggers a relay contact after a programmed time via an electronic circuit. This model (05930500) is energizing with a 2-second time delay. It has single-pole, double-throw (SPDT) circuitry and a continuous current rating of 5A.
