86832 Series

Catalog

CONN HEADER VERT 42POS 2.54MM

Part	Contact Finish - Post	Insulation Color	Contact Finish - Mating	Style	Overall Contact Length	Number of Positions	Contact Length - Mating	Fastening Type	Number of Positions Loaded	Current Rating	Contact Material	Row Spacing - Mating	Insulation Height	Shrouding	Contact Type	Pitch - Mating	Contact Length - Post	Number of Rows	Termination	Contact Shape	Mounting Type	Voltage Rating	Connector Type	Material Flammability Rating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 86832-442HLF	Tin	Black	Tin	Board	0.525 in	42	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	100 µin

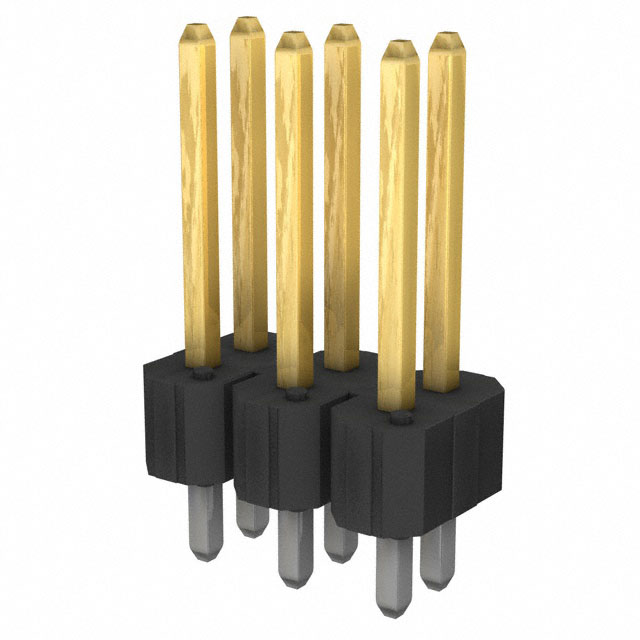

Amphenol ICC (FCI) 86832-106HLF		Black	Gold GXT™	Board	0.525 in	6	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	30 µin
Amphenol ICC (FCI) 86832-140HLF		Black	Gold GXT™	Board	0.525 in	40	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	30 µin
Amphenol ICC (FCI) 86832-172HLF		Black	Gold GXT™	Board	0.525 in	72	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	30 µin
Amphenol ICC (FCI) 86832-272HLF		Black	Gold GXT™	Board	0.525 in	72	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	15 µin
Amphenol ICC (FCI) 86832-412HLF	Tin	Black	Tin	Board	0.525 in	12	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	100 µin
Amphenol ICC (FCI) 86832-166HLF		Black	Gold GXT™	Board	0.525 in	66	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	30 µin
Amphenol ICC (FCI) 86832-422HLF	Tin	Black	Tin	Board	0.525 in	22	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	100 µin
Amphenol ICC (FCI) 86832-456HLF	Tin	Black	Tin	Board	0.525 in	56	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	100 µin
Amphenol ICC (FCI) 86832-404HLF	Tin	Black	Tin	Board	0.525 in	4	0.325 in	Push-Pull	All	5 A	Phosphor Bronze	0.1 in	0.1 in	Unshrouded	Male Pin	0.1 in	0.1 in	2	Solder	Square	Through Hole	110 VDC	Header	UL94 V-0	100 µin
