382470 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

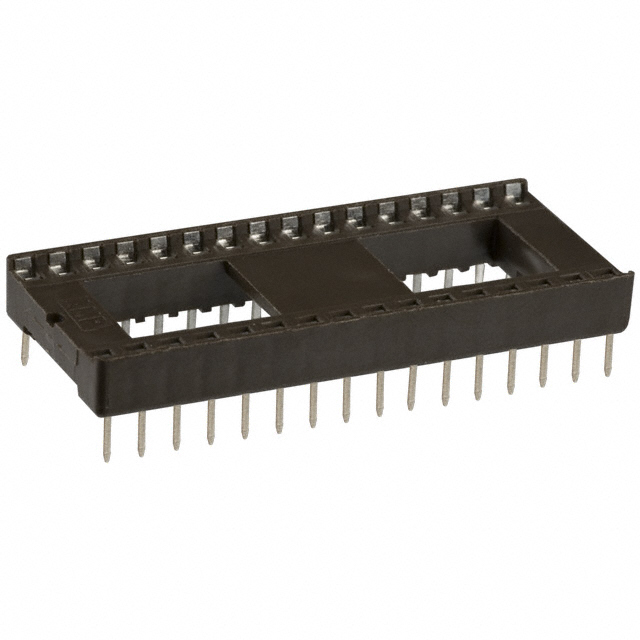

CONN IC DIP SOCKET 32POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Termination Post Length | Contact Material - Post | Contact Finish - Mating | Features | Mounting Type | Contact Material - Mating | Pitch - Mating | Grid Columns | Number of Positions or Pins (Grid) | Grid Rows | Contact Finish Thickness - Mating | Termination | Operating Temperature (Max) | Operating Temperature (Min) | Pitch - Post | Contact Finish - Post | Housing Material | Row Spacing | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 30 mOhm | 0.128 in | Phosphor Bronze | Gold | Open Frame | Through Hole | Phosphor Bronze | 0.1 in | 16 | 32 | 2 | 15 µin | Solder | 125 °C | -55 °C | 0.1 in | Tin-Lead | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | 0.6 in | 0.6" (15.24mm) Row Spacing DIP |
 TE Connectivity AMP Connectors | UL94 V-0 | 30 mOhm | 0.128 in | Phosphor Bronze | Tin | Open Frame | Through Hole | Phosphor Bronze | 0.1 in | 16 | 32 | 2 | Solder | 105 °C | -55 °C | 0.1 in | Tin-Lead | Thermoplastic | 0.6 in | 0.6" (15.24mm) Row Spacing DIP |
