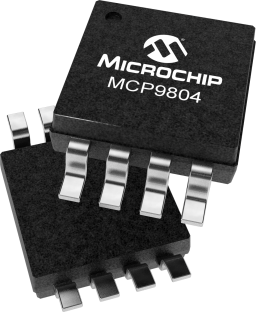

MCP9804 Series

Catalog

±0.25°C TYP. ACCURACY DIGITAL TEMP. SENSOR

Part	Accuracy - Highest	Accuracy - Lowest	Package / Case	Mounting Type	Features	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Sensor Type	Output Type	Resolution	Operating Temperature (Max)	Operating Temperature (Min)	Grade	Package Length	Package Name	Package Width	Test Condition (Min)	Test Condition (Max)	Qualification	Sensing Temperature - Local (Max)	Sensing Temperature - Local (Min)	Accuracy - Highest (Lowest)
Microchip Technology MCP9804-E/MCVAO	0.25 °C	1 °C	8-VFDFN Exposed Pad	Surface Mount	Output Switch Programmable Limit Programmable Resolution Shutdown Mode	5.5 V	2.7 V	Digital Local	I2C SMBus	12 b	125 °C	-40 °C	Automotive	2 mm	8-DFN	3 mm	-40 °C	125 °C	AEC-Q100	125 °C	-40 °C
Microchip Technology MCP9804T-E/MCVAO			8-VFDFN Exposed Pad	Surface Mount	Output Switch Programmable Limit Programmable Resolution Shutdown Mode	5.5 V	2.7 V	Digital Local	I2C SMBus	10 b	125 °C	-40 °C	Automotive	2 mm	8-DFN	3 mm	-40 °C	125 °C	AEC-Q100	125 °C	-40 °C	1 °C
Microchip Technology MCP9804-E/MS				Surface Mount	Output Switch Programmable Limit Programmable Resolution Shutdown Mode	5.5 V	2.7 V	Digital Local	I2C SMBus	10 b	125 °C	-40 °C		0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	-40 °C	125 °C		125 °C	-40 °C	1 °C
Microchip Technology MCP9804T-E/MS				Surface Mount	Output Switch Programmable Limit Programmable Resolution Shutdown Mode	5.5 V	2.7 V	Digital Local	I2C SMBus	10 b	125 °C	-40 °C		0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	-40 °C	125 °C		125 °C	-40 °C	1 °C
Microchip Technology MCP9804-E/MC	0.25 °C	1 °C	8-VFDFN Exposed Pad	Surface Mount	Output Switch Programmable Limit Programmable Resolution Shutdown Mode	5.5 V	2.7 V	Digital Local	I2C SMBus	12 b	125 °C	-40 °C		2 mm	8-DFN	3 mm	-40 °C	125 °C		125 °C	-40 °C
Microchip Technology MCP9804T-E/MC			8-VFDFN Exposed Pad	Surface Mount	Output Switch Programmable Limit Programmable Resolution Shutdown Mode	5.5 V	2.7 V	Digital Local	I2C SMBus	10 b	125 °C	-40 °C		2 mm	8-DFN	3 mm	-40 °C	125 °C		125 °C	-40 °C	1 °C
