641209 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 16POS 3.96MM

Part	Voltage Rating	Contact Finish Thickness - Mating	Shrouding	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions Loaded	Contact Type	Contact Length - Post	Overall Contact Length	Contact Shape	Insulation Color	Fastening Type	Insulation Height	Material Flammability Rating	Contact Material	Insulation Material	Termination	Contact Finish - Mating	Mounting Type	Number of Positions	Contact Finish - Post	Connector Type	Contact Length - Mating	Pitch - Mating	Current Rating	Style	Applications

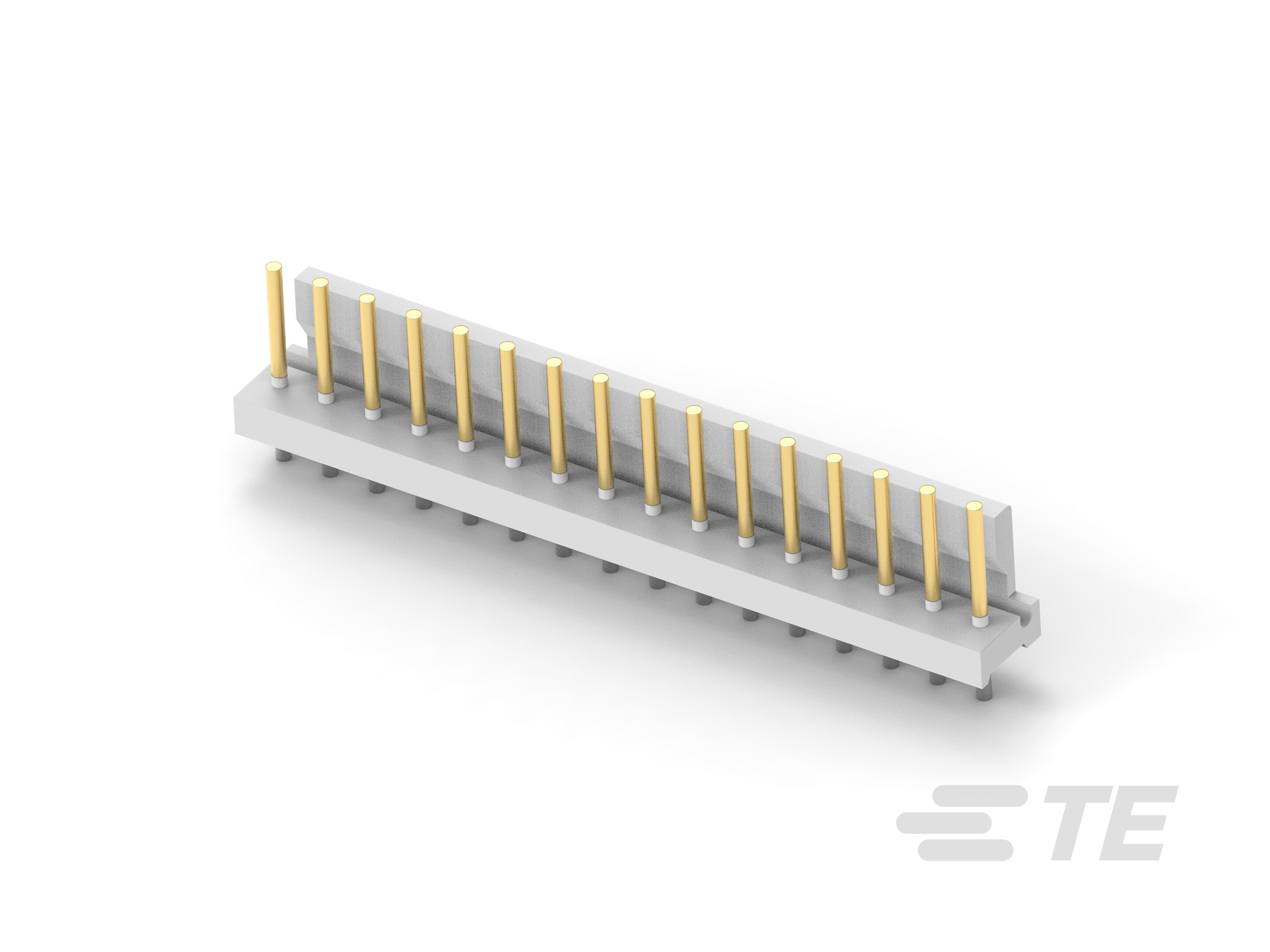

TE Connectivity AMP Connectors 4-641209-6	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	16	Tin	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial

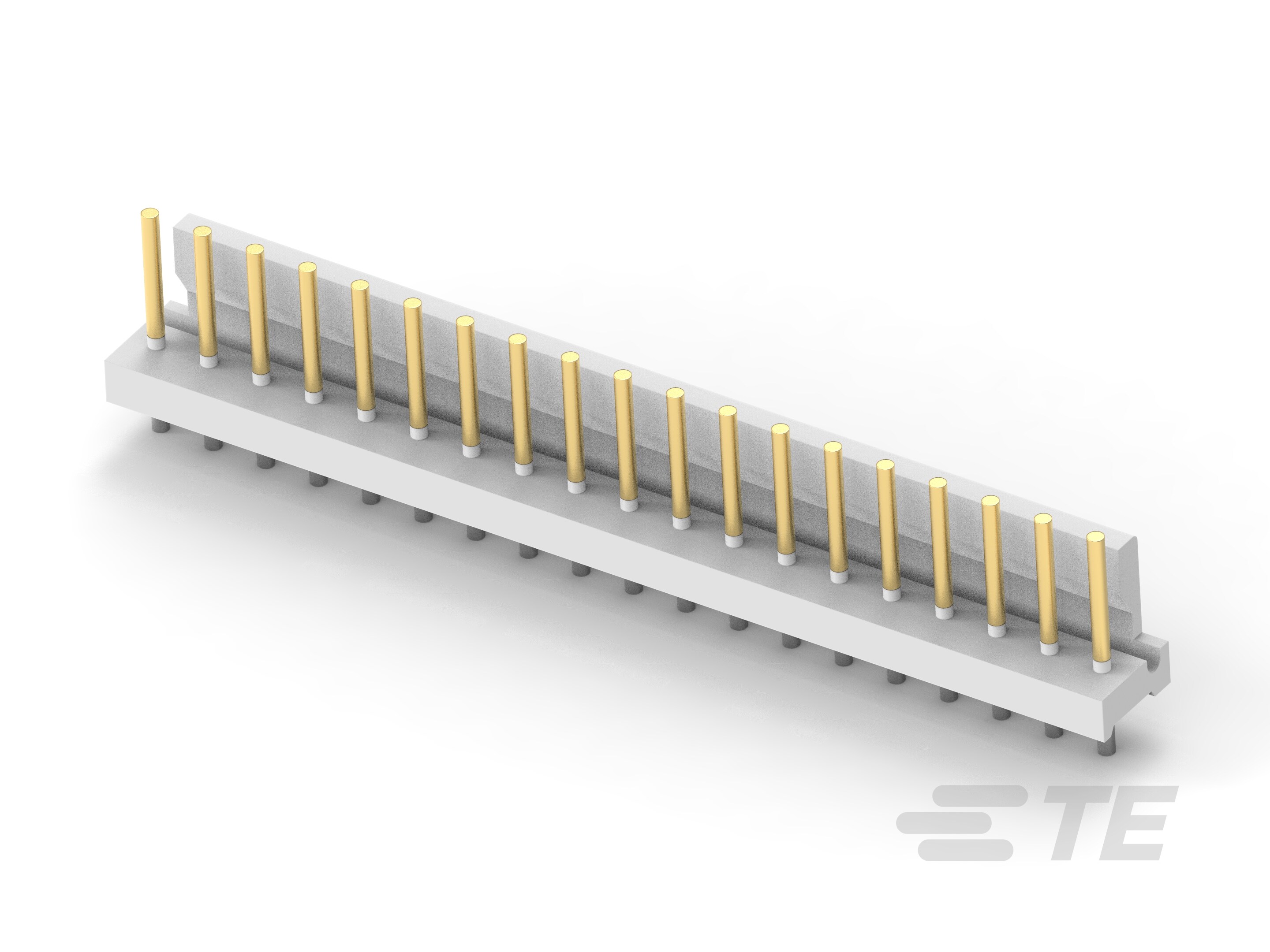

TE Connectivity AMP Connectors 4-641209-9	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	19	Tin	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial
TE Connectivity AMP Connectors 3-641209-8	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	8	Tin	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial

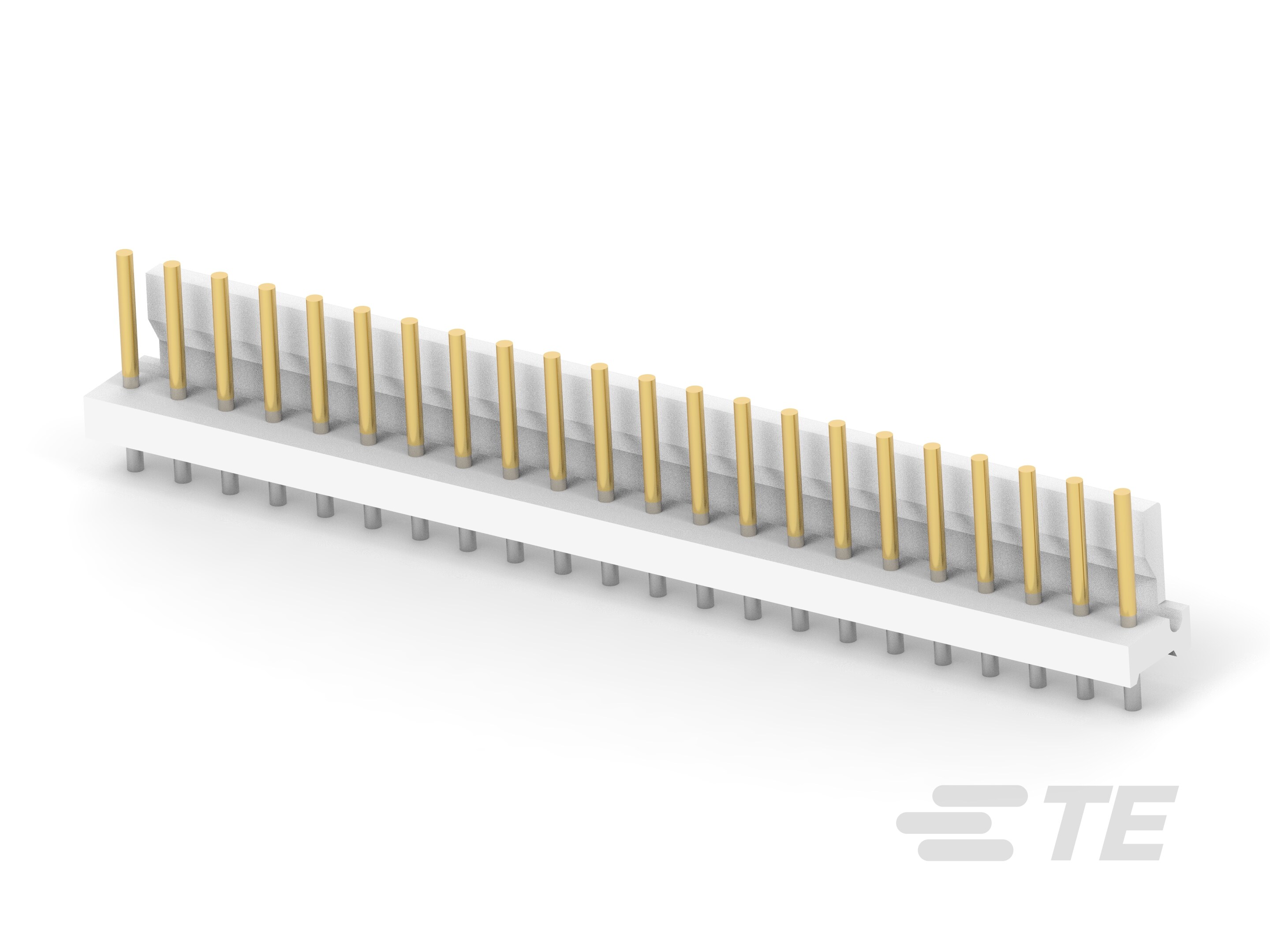

TE Connectivity AMP Connectors 5-641209-2	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	22	Tin	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial
TE Connectivity AMP Connectors 641209-6	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	6	Tin-Lead	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial
TE Connectivity AMP Connectors 3-641209-4	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	4	Tin	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial
TE Connectivity AMP Connectors 4-641209-5	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	15	Tin	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial

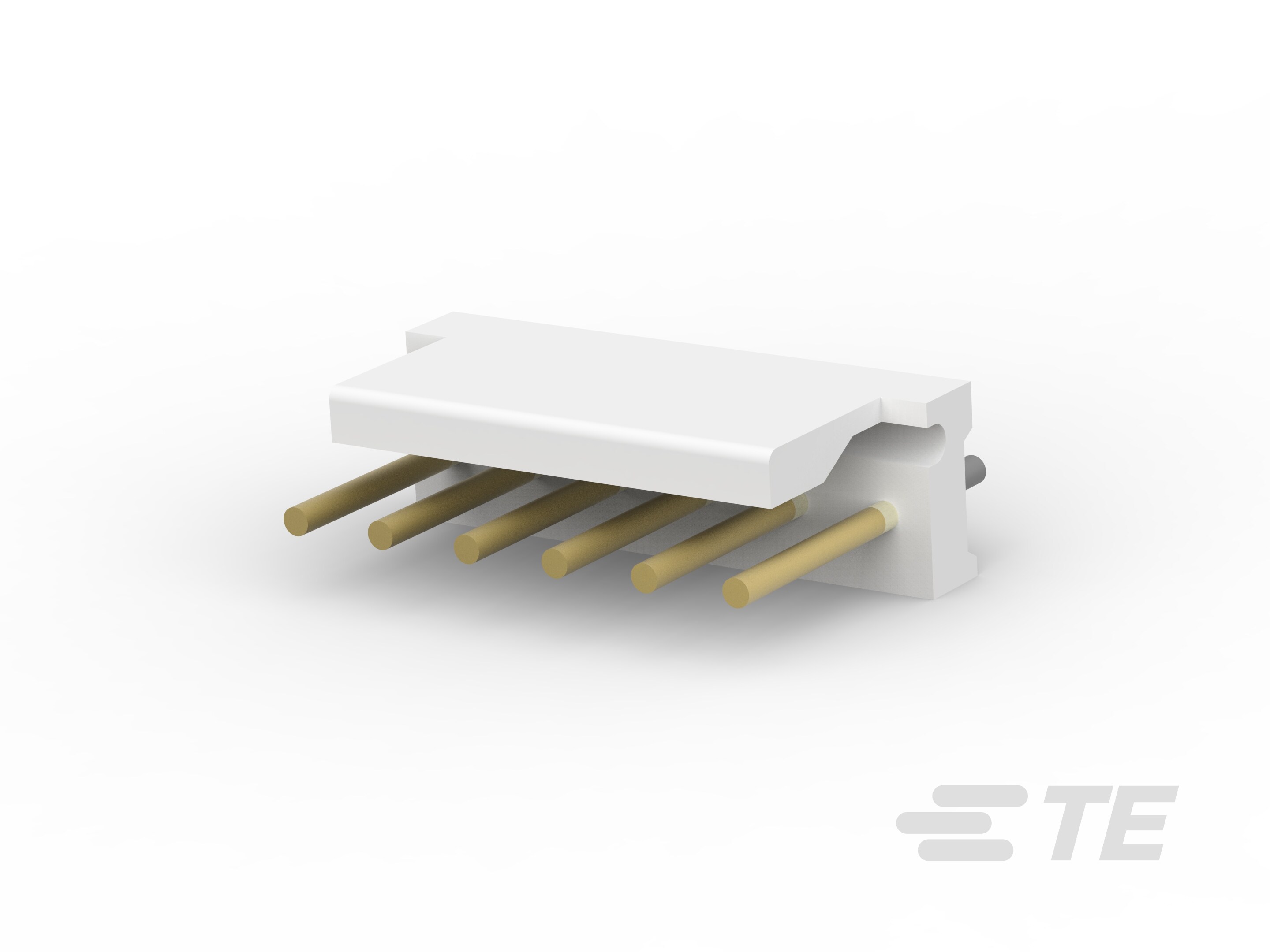

TE Connectivity AMP Connectors 3-641209-6	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	6	Tin	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial

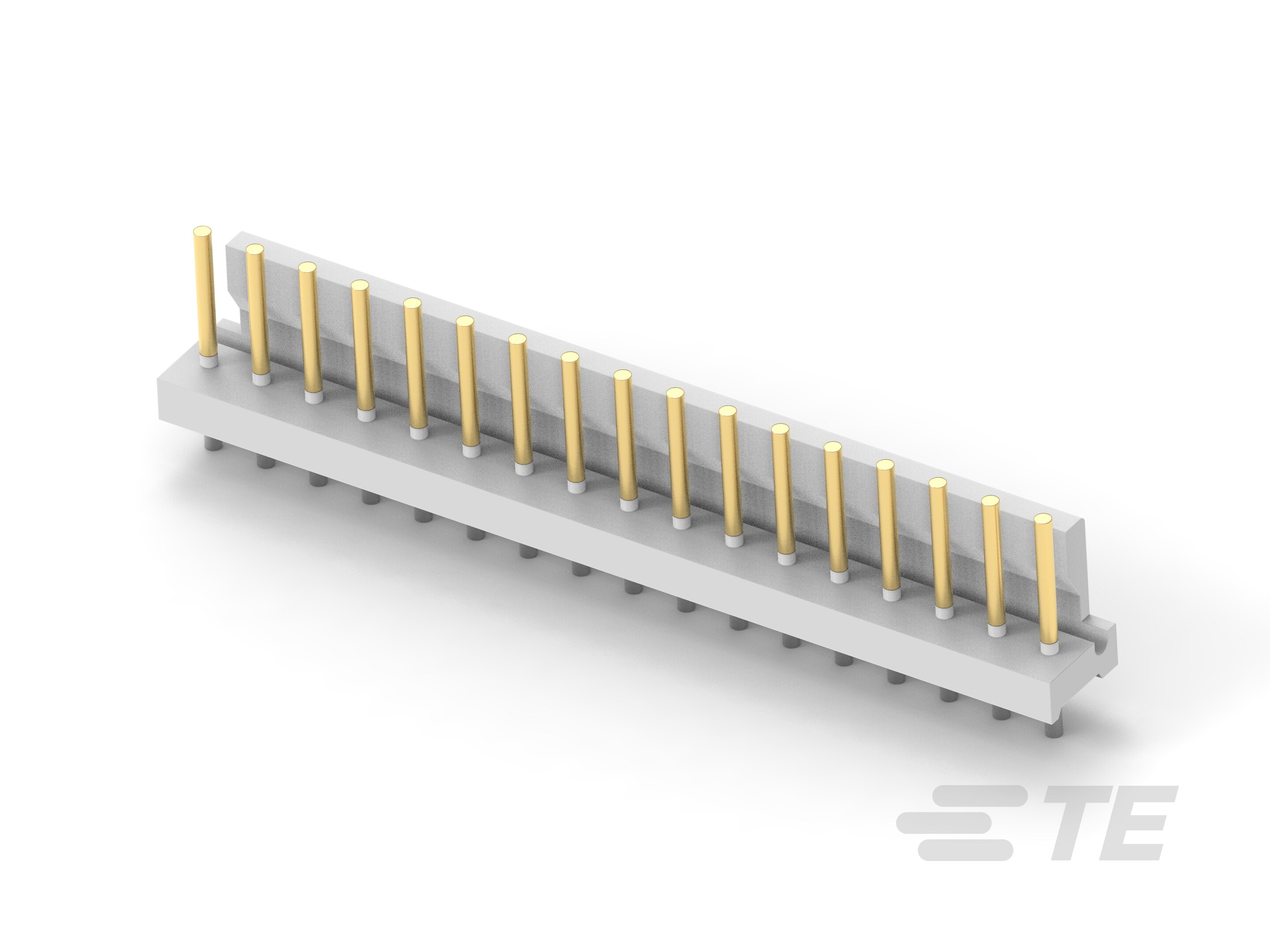

TE Connectivity AMP Connectors 4-641209-7	600 V	30 µin	Shrouded - 1 Wall	1	-55 °C	105 °C	All	Male Pin	0.125 in	0.65 in	Circular	Natural	Friction Lock	0.425 in	UL94 V-0	Copper Alloy	Glass Filled Thermoplastic	Solder	Gold	Through Hole	17	Tin	Header	0.4 in	0.156 in	Varies by Wire Gauge	Board Cable/Wire	General Purpose Industrial
