PIC18F4685 Series

Catalog

MCU 8-BIT PIC18 PIC RISC 96KB FLASH 5V 44-PIN TQFP TRAY

Part	RAM Size Width	RAM Size Depth	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Package Width	Package Name	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Peripherals	A/D Resolution (bits)	A/D Channels	Mounting Type	Speed	Core Processor	Oscillator Type	Program Memory Depth	Program Memory Size	Program Memory Width	Package / Case	Core Size (Bit Width)	EEPROM Size (Depth)	EEPROM Size (Width)	Program Memory Type	Number of I/O	Connectivity
Microchip Technology PIC18F4685-E/PT	8 bit	3.25 K	4.2 V	5.5 V	10 mm	44‑TQFP	10 mm	125 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Surface Mount	40 MHz	PIC	Internal	48 K	96 KB	16	44-TQFP	8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
Microchip Technology PIC18F4685-I/PT	8 bit	3.25 K	4.2 V	5.5 V	10 mm	44‑TQFP	10 mm	85 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Surface Mount	40 MHz	PIC	Internal	48 K	96 KB	16	44-TQFP	8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
Microchip Technology PIC18LF4685-I/PT	8 bit	3.25 K	2 V	5.5 V	10 mm	44‑TQFP	10 mm	85 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Surface Mount	40 MHz	PIC	Internal	48 K	96 KB	16	44-TQFP	8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
Microchip Technology PIC18F4685-I/P	8 bit	3.25 K	4.2 V	5.5 V	15.24 mm	40-DIP 40-PDIP	0.6 in	85 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Through Hole	40 MHz	PIC	Internal	48 K	96 KB	16		8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
Microchip Technology PIC18F4685T-I/PT	8 bit	3.25 K	4.2 V	5.5 V	10 mm	44‑TQFP	10 mm	85 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Surface Mount	40 MHz	PIC	Internal	48 K	96 KB	16	44-TQFP	8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
Microchip Technology PIC18LF4685-I/P	8 bit	3.25 K	2 V	5.5 V	15.24 mm	40-DIP 40-PDIP	0.6 in	85 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Through Hole	40 MHz	PIC	Internal	48 K	96 KB	16		8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
Microchip Technology PIC18F4685-E/P	8 bit	3.25 K	4.2 V	5.5 V	15.24 mm	40-DIP 40-PDIP	0.6 in	125 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Through Hole	40 MHz	PIC	Internal	48 K	96 KB	16		8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
Microchip Technology PIC18F4685-E/ML	8 bit	3.25 K	4.2 V	5.5 V	8 mm	44-QFN	8 mm	125 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Surface Mount	40 MHz	PIC	Internal	40 K	80 KB	16	44-VQFN Exposed Pad	8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART

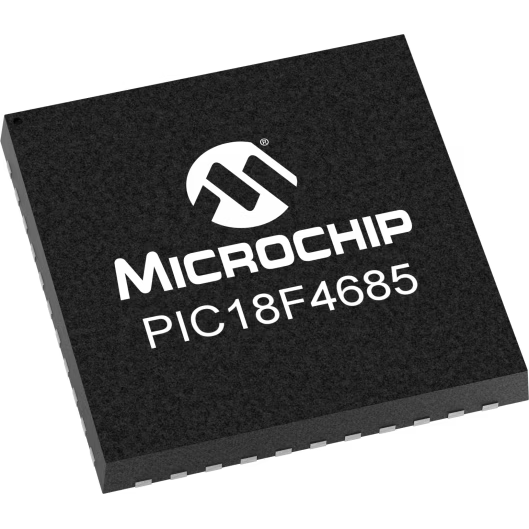

Microchip Technology PIC18LF4685-I/ML	8 bit	3.25 K	2 V	5.5 V	8 mm	44-QFN	8 mm	85 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Surface Mount	40 MHz	PIC	Internal	48 K	96 KB	16	44-VQFN Exposed Pad	8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
Microchip Technology PIC18F4685T-I/ML	8 bit	3.25 K	4.2 V	5.5 V	8 mm	44-QFN	8 mm	85 °C	-40 °C	Brown-out Detect HLVD POR PWM Reset WDT	10 bit	11 count	Surface Mount	40 MHz	PIC	Internal	48 K	96 KB	16	44-VQFN Exposed Pad	8 Bit	1 K	8 bit	FLASH	36	CANbus I2C SPI UART USART
