342104 Series

Catalog

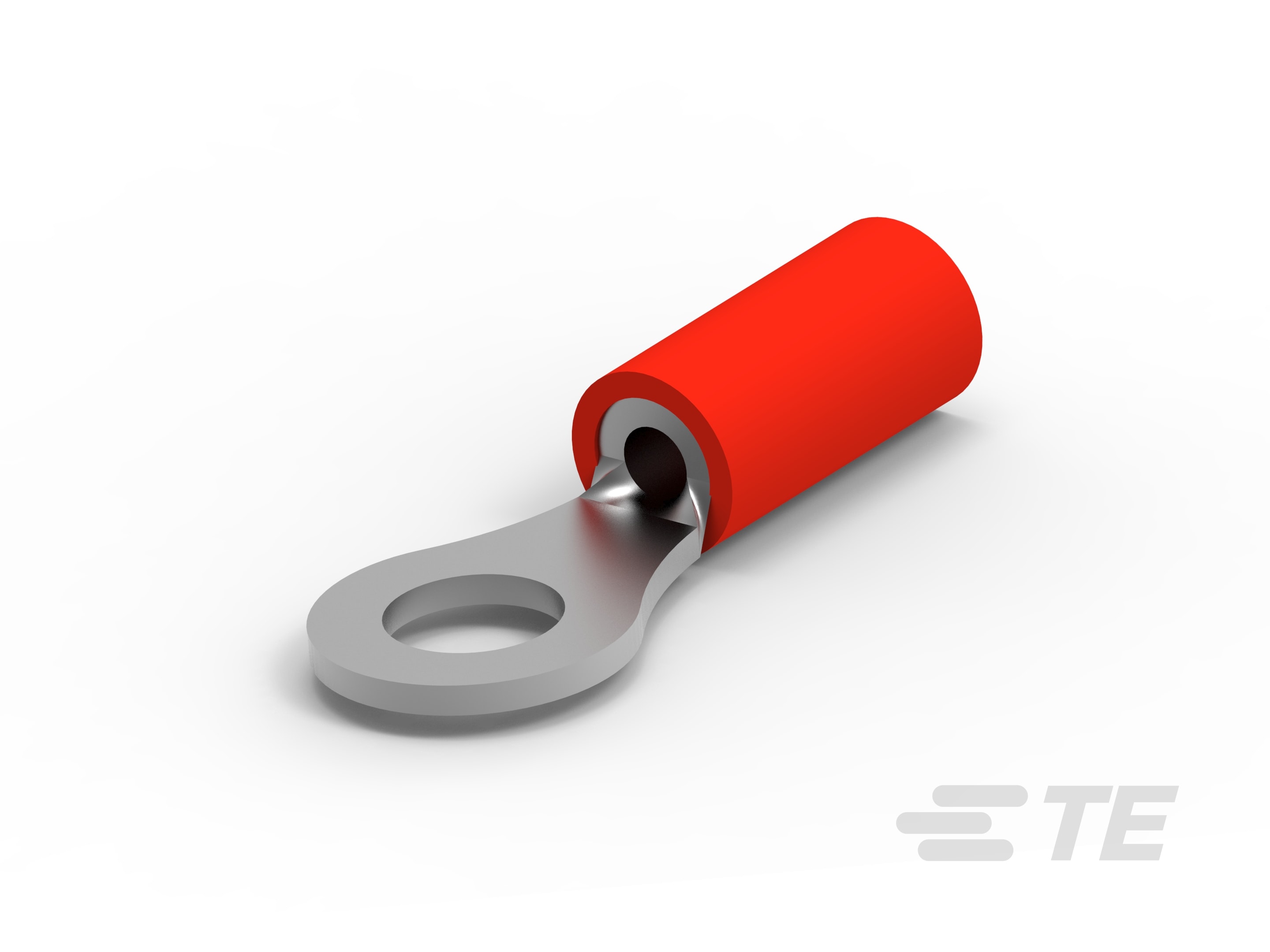

CONN RING CIRC 16-22AWG M5 CRIMP

Part	Termination	Thickness	Stud/Tab Size	Width - Outer Edges	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Insulation	Contact Material	Terminal Type	Features	Contact Finish	Color	Mounting Type	Length - Overall	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation
TE Connectivity AMP Connectors 342104-1	Crimp	0.031 in	M5 M5 Stud	0.311 in	16 AWG	22 AWG	Insulated	Copper	Circular	Serrated Termination	Tin	Red	Free Hanging (In-Line)	0.861 in	0.106 in	0.142 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 2-342104-1	Crimp	0.031 in	M5 M5 Stud	0.311 in	16 AWG	22 AWG	Insulated	Copper	Circular	Serrated Termination	Tin	Red	Free Hanging (In-Line)	0.861 in	0.106 in	0.142 in	Poly-Vinyl Chloride PVC
