A3CCH Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - AKC60H/AE60M/AKC60H

Part	Color	Contact Finish	Cable Termination	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Rows	Number of Positions	Connector Type	Length [x]	Length [x]	Features	Pitch - Connector	Pitch - Connector	Number of Positions
TE Connectivity Raychem Cable Protection A3CCH-6036M	Multiple Ribbon	Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	60	Socket to Socket	3 ft	914.4 mm	Polarizing Key	0.1 in	2.54 mm

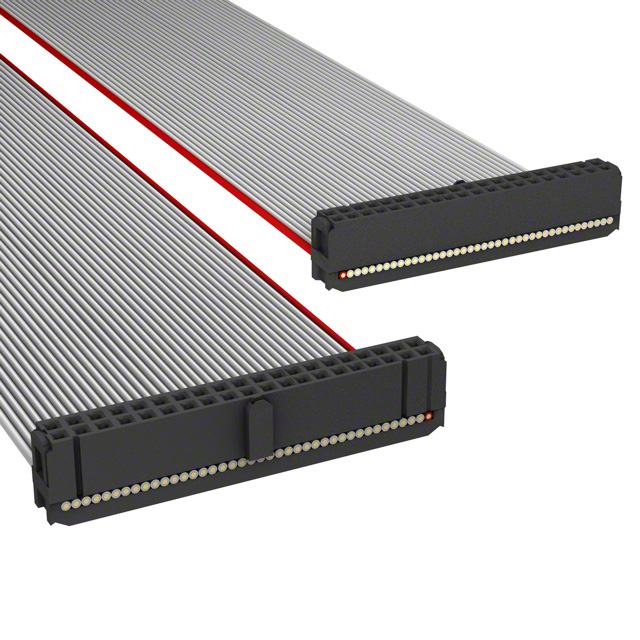

TE Connectivity Raychem Cable Protection A3CCH-4018G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	40	Socket to Socket	1.5 ft	457.2 mm	Polarizing Key	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3CCH-1636G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2		Socket to Socket	3 ft	914.4 mm	Polarizing Key	0.1 in	2.54 mm	16
TE Connectivity Raychem Cable Protection A3CCH-5036G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	50	Socket to Socket	3 ft	914.4 mm	Polarizing Key	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3CCH-6418G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	64	Socket to Socket	1.5 ft	457.2 mm	Polarizing Key	0.1 in	2.54 mm

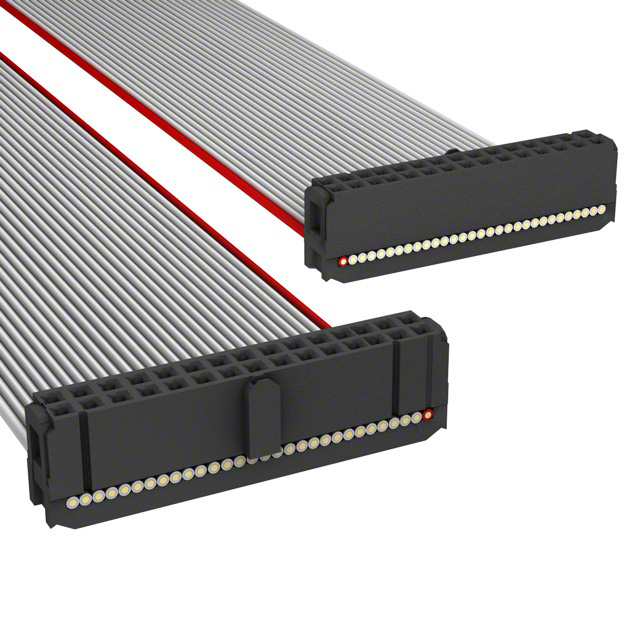

TE Connectivity Raychem Cable Protection A3CCH-3036G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	30	Socket to Socket	3 ft	914.4 mm	Polarizing Key	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3CCH-1618G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2		Socket to Socket	1.5 ft	457.2 mm	Polarizing Key	0.1 in	2.54 mm	16
TE Connectivity Raychem Cable Protection A3CCH-4418G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	44	Socket to Socket	1.5 ft	457.2 mm	Polarizing Key	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3CCH-3018G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	30	Socket to Socket	1.5 ft	457.2 mm	Polarizing Key	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3CCH-5018G		Gold	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	50	Socket to Socket	1.5 ft	457.2 mm	Polarizing Key	0.1 in	2.54 mm
