6116173 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

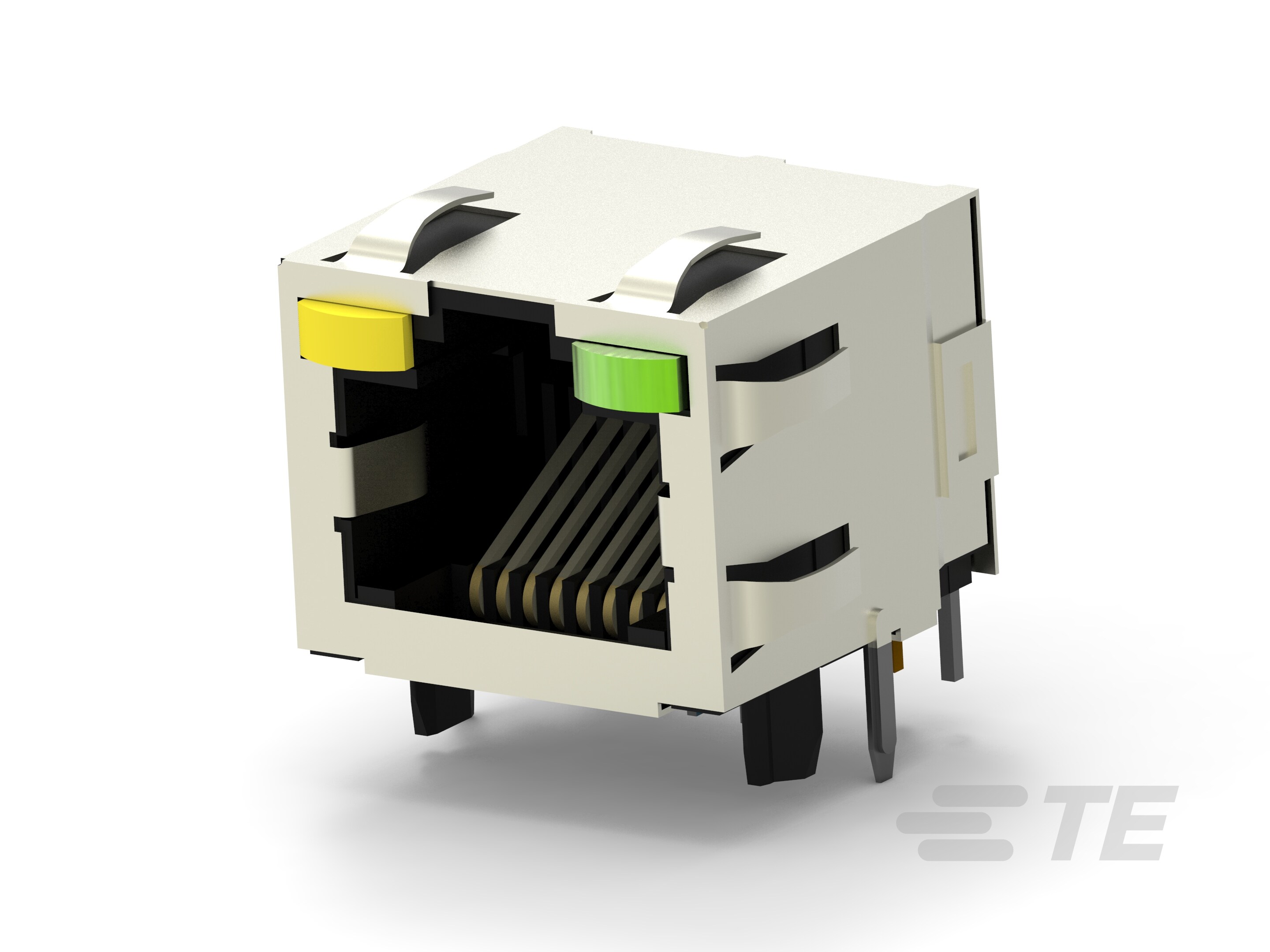

INV MJ,1X1,PNL GRD,SHLD,LED (G/G) ROHS COMPLIANT: YES
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish Thickness | Housing Material | Ratings | Connector Type | Number of Positions | Number of Contacts | Features | LED Color | Contact Finish | Number of Rows | Termination | Orientation Angle | Orientation Direction | Number of Ports | Shielding | Tab Direction | Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -40 °C | 85 °C | 50 µin | Thermoplastic | Cat5 | Ethernet Jack RJ45 | 8 | 8 | Board Guide | Green - Green | Gold | 1 | Solder | 90 ° | Right | 1 | EMI Finger Shielded | Up | Phosphor Bronze | Through Hole |
 TE Connectivity AMP Connectors | -40 °C | 85 °C | 50 µin | Thermoplastic | Cat5 | Ethernet Jack RJ45 | 8 | 8 | Board Guide | Green - Yellow | Gold | 1 | Solder | 90 ° | Right | 1 | EMI Finger Shielded | Up | Phosphor Bronze | Through Hole |
 TE Connectivity AMP Connectors | -40 °C | 85 °C | 50 µin | Thermoplastic | Cat5 | Ethernet Jack RJ45 | 8 | 8 | Board Guide | Yellow - Green | Gold | 1 | Solder | 90 ° | Right | 1 | EMI Finger Shielded | Up | Phosphor Bronze | Through Hole |
